IMB-H420

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual 2.5GbE LAN, M.2, 6 USB 3.2, 8 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS

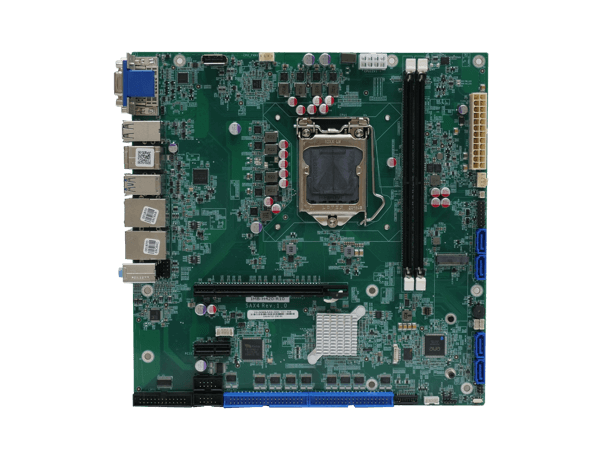

IMB-H420 Front
IMB-H420 IO
IMB-H420 Back
IMB-H420 Left
  • IMB-H420 Front
  • IMB-H420 IO
  • IMB-H420 Back
  • IMB-H420 Left
» LGA1200 Intel® 10th/11th Generation Core i9/i7/i5/i3, Pentium and Celeron processor (up to 65W)
» Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
» Support triple independent display via DVI,VGA and internal DP++
» Support one PCIe x16 and one PCIe x1 expansions
» Support one M.2 M key and four SATA for storage

Specifications

Hardware Spec.

Form Factor
Form Factor micro ATX Motherboard
System
CPU LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor. up to 65W TDP
Chipset Intel® H420E
Memory Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (supporting up to 64 GB memory)
Memory Max. 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 244mm
Net Weight 700g
Storage
Storage 4 x SATA
I/O Interface
Display Output 1 x VGA : up to 1920 x 1080@60Hz
1 x DVI-D : up to 2560 x 1600@60Hz
1 x Display Port : internal, up to 3840 x 2160@60Hz
Ethernet 2 x LAN -
LAN1: Intel® I225-V/I226-V GbE controller
LAN2: Intel® I225-V/I226-V GbE controller
Audio 1 x HD Audio : Realtek ALC888S HD Audio codec
3 x Audio jack (Line-in, Line-out, Mic-in)
1 x Analog audio (2x5 pin)
I/O Interface 10 x Internal RS-232 -
2 x 2*20 pin, P=2.54
2 x 2*5 pin, P=2.54
6 x External USB 2.0 : Type A
8 x External USB 3.2 Gen1x1 : 5 Gb/s (Type A)
1 x PS/2 : for KB/MS
1 x LPT : 2*13 pin
Expansion 1 x PCIe x16 : Gen3 x16 slot
1 x PCIe x1 : Gen3 x1 slot
1 x M.2(NGFF) : M key 2242/2280 (PCIe Gen3 x2)
Power
Power Consumption 3.3V@1.59A, 5V@10.18A, 12V@6.84A, 5VSB@0.23A
(10th Gen. Intel® Core® i9-10900E 2.80 GHz 65W CPU with 32GB 2933MHz DDR4 memory, EUP enabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C~70°C
Humidity 5% ~95%, non-condensing

Ordering Information

IMB-H420-R11 Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual 2.5GbE LAN, M.2, 6 USB 3.2,8 USB 2.0,10 COM, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x IMB-H420 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG

Download Specs.
