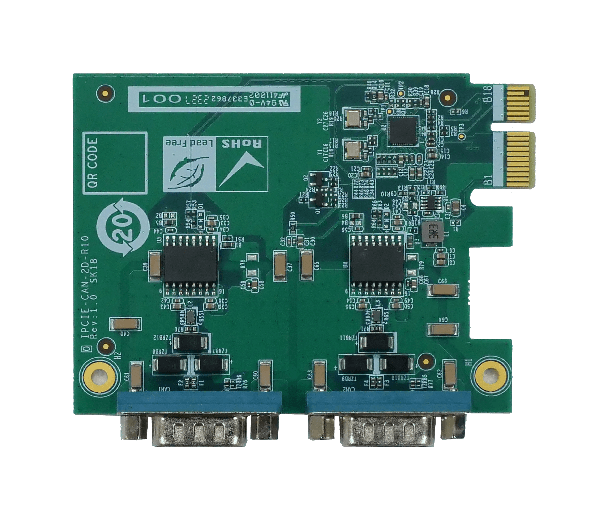

IPCIE-CAN-2D

PCIe card supports 2-Port CAN Bus with Isolation Protection, RoHs

» PCIe card supports 2 x Independent CAN ports
» Up to 1 Mbps transmission speed
» Support 16 MHz CAN controller frequency
» Two CANBus (DB9) port module with isolating

Specifications

Hardware Spec.

Form Factor
Form Factor PCI Express® x1
Protocol: CAN 2.0 A/B
System
Chipset Fintek F81601 (PCIe to CAN),
Chipanalog CA-IS3062 (CAN Transceiver)
Physical Characteristics
Dimensions (LxWxH) (mm) 70mm x 90mm
Net Weight GW: 120g / NW: 80g
I/O Interface
I/O Interface 2 x CAN-bus/OBD-II : 2.0B port with isolation
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant
Card Slot Interface
PCIe PCIe x1

Ordering Information

IPCIE-CAN-2D-R10 PCIe x1 card supports 2-Port CAN Bus with Isolation Protection, RoHs

Package Contents

Package Content

  • 1 x IPCIE-CAN-2D card

  • 1 x IO Shielding

  • 1 x QIG (Quick Installation Guide)
