WAFER-RK3588

3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~ 60°C and RoHS

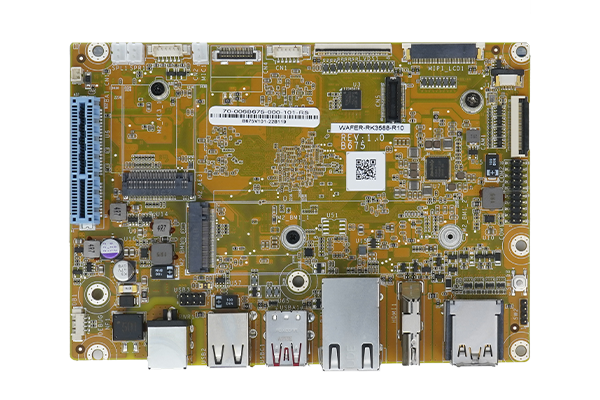

WAFER-RK3588 Front
WAFER-RK3588 IO
WAFER-RK3588 Back
WAFER-RK3588 Left Side
WAFER-RK3588 Right Side
  • WAFER-RK3588 Front
  • WAFER-RK3588 IO
  • WAFER-RK3588 Back
  • WAFER-RK3588 Left Side
  • WAFER-RK3588 Right Side
» 3.5” SBC with Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
» Built-in AI accelerator NPU with processing performance of up to 6.0 TOPS, supports int4/int8/int16/FP16/BF16/TF32
» Built-in 4 core GPU Mali G610 (4x256KB L2 Cache) supports OpenGLES3.2/OpenCL2.2/Vulkan1.1
» Multi-channel input output: 4K HDMI™ input, 8K HDMI™ output, MIPI, LVDS, MIPI_DSI and Camera MIPI_CSI input
» Rich I/O: 2.5GbE, GbE RJ45, USB 3.2 GEN 1, USB2.0
» Expansion slot: PCIe 3.0 x2, M.2 B/M key, M.2 A/E key
» Optional WiFi5/WiFi6/BLE 5.0
» OS supports Android13 / Debian 11 (Linux Kernel 5.10)

Specifications

Hardware Spec.

Form Factor
Form Factor 3.5” SBC
System
CPU
  • Processor: Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)
  • GPU: ARM Mali-G610 MP4
  • NPU: 6TOPS supports int4/int8/int16/FP16/BF16/TF32
Memory On-board 8GB LPDDR4x
Supported OS Android 13, Linux Debian 11
Physical Characteristics
Dimensions (LxWxH) (mm) 146 x 102
Storage
Storage 1 x SATA : 3.0 up to 6 Gb/s
eMMC : 32GB NAND Flash for OS and IEI's boot loader
I/O Interface
Display Output 2 x HDMI™ -
1 x HDMI-output up to 8K@60Hz
1 x HDMI-output up to 4K@60Hz
1 x LVDS
1 x MIPI DSI
Ethernet 2 x LAN -
1 x GbE LAN
1 x 2.5 GbE LAN
Audio Description: Pin header to Mic-in / line-out jack
2 x Speaker (2pin header)
I/O Interface 2 x External USB 2.0 (Type A)
3 x Video -
1 X HDMI-input up to 4K@60FPS
1 x HDMI-output up to 8K@60Hz
1 x HDMI-output up to 4K@60Hz
2 x External USB 3.2 Gen1x2 -
1 x USB 3.2 GEN 1 Type C with DP (OS update)
1 x USB 3.2 GEN 1 Type A
UART (2x9pin header)
Expansion 2 x M.2(NGFF) -
1 x M.2 2230/2280 B/M key (PCIe 3.0 x2)
1 x M.2 2230 A/E key (PCIe 2.0 x1)
1 x PCIe (PCIe 3.0 x2)
Wireless
Wi-Fi Support Wi-Fi 5/6 (board to board IEI module optional)
Bluetooth Bluetooth V5.0 optional
Other Features
Camera Support MIPI CSI
Power
Input 12V DC
Environment
Operating Temperature 0°C ~ 60°C with air flow
Storage Temperature -20°C ~ 60°C
Humidity 5% ~ 95% relative humidity, non-condensing
Certifications
Safety & EMC EMC Class B

Ordering Information

WAFER-RK3588-D/CE-R10 3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4 memory & 32GB eMMC NAND Flash, Debian platform
WAFER-RK3588-A/CE-R10 3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4 memory & 32GB eMMC NAND Flash, Android platform

Package Contents

Package Content

  • 1 x WAFER-RK3588 single board computer

  • 1 x QIG
