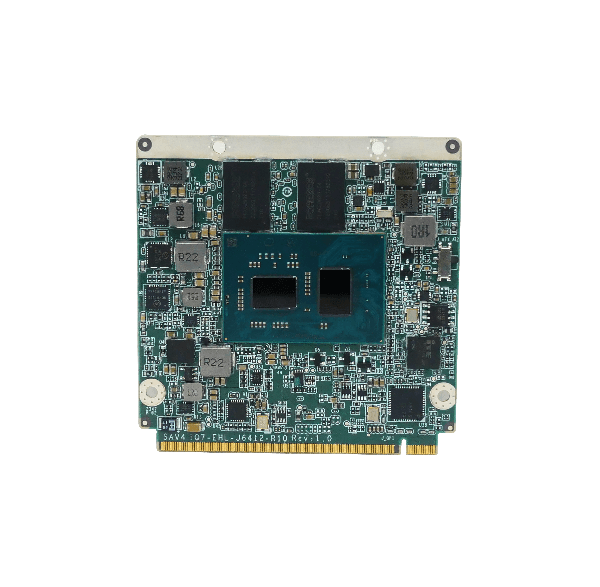

iQ7-EHL
» Intel® Elkhart Lake Celeron® J6412 on-board SoC
» Support Intel® I225-V/I226-V 2.5 GbE Ethernet controller
» Support dual independent displays via HDMI and LVDS (or eDP)
» Support four PCIe Gen3 x1 for expansions
» Support two USB 3.2 Gen2 and six USB 2.0
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Qseven™ module |
| System | |
| CPU | Intel® Elkhart Lake Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) |
| Memory | LPDDR4x-3200Gbps 8GB, up to 16GB |
| Memory Max. | 16GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 70 x 70mm |
| Storage | |
| Storage | 2 x SATA : signal to baseboard, 6Gb/s |
| I/O Interface | |
| Display Output | 1 x HDMI™ : signal to baseboard, 4K @ 30Hz |
| 1 x LVDS : colay with eDP | |
| Ethernet | 1 x LAN : 2.5 GbE Intel® I225-V/I226-V signal to baseboard |
| I/O Interface | 2 x External USB 3.2 Gen2x1 signal to baseboard (10 Gb/s) |
| 1 x Internal RS-232 1 x UART signal to baseboard | |
| 6 x Internal USB 2.0 signal to baseboard | |
| Expansion | 4 x PCIe x1 : signal to baseboard |
| Power | |
| Power Supply | 5V DC |
| Environment | |
| Operating Temperature | 0℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| iQ7-EHL-J6412C-R10 | Qseven® Rev. 2.1 module supports Intel® Celeron® Processor J6412 (10W), with 8GB LPDDR4x memory on board default, Support DP,LVDS,2.5GbE,SATA 6Gb/s,USB 3.1,Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
