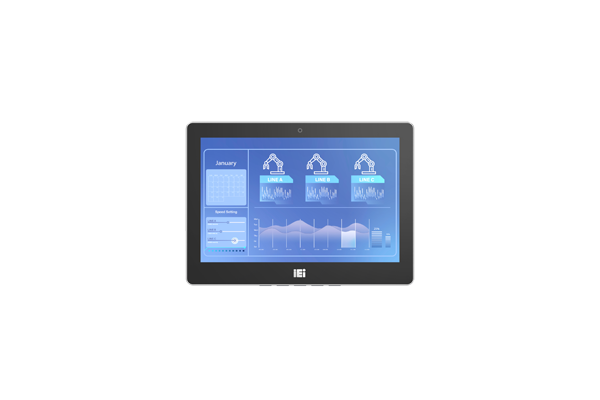

DM2-W101
» Front OSD, easy access for setting adjustment
» Speakers positioned at the front, ensuring clear sound delivery even in panel mount
» Supports gloved operation and waterproof protection
» Built-in camera, ideal for AI facial recognition
» USB 3.2 Gen1 Type-A supports 10W
» IP65 compliant front panel with aluminum frame
» Anti-glare and anti-UV PCAP
The DM2-W101 is engineered to excel in the toughest industrial environments, featuring an IP65-rated front panel, durable all-metal housing, and the ability to operate in extreme temperatures ranging from -20°C to 60°C. An integrated HD camera and dual front speakers enhance security and communication. With four USB 3.2 Gen 1 ports for expanded productivity and a user-friendly panel mount design, the DM2-W101 is more than just a display—it's a comprehensive solution for demanding industrial operations.
10.1" 1280x800 TFT LCD
with 178° Wide Viewing Angles
Webcam and
Dual 2W Speakers
-20°C ~ 60°C
Extended Temperature
IP65 Ingress Protection and
Military Standard Vibration Resistance
Anti-UV/Glare
Scratchproof
Wide Range DC Input
Integrated USB Hub
HDMI, DP and VGA Interfaces
To ensure seamless integration with all embedded boards and systems, the IEI industrial monitor is equipped with VGA, HDMI, and DP signal interfaces. These versatile connections are user-friendly and compatible with a wide range of industrial and commercial applications.
Reduce Reflections with Optical Bonding
The IEI DM2-W101 utilizes advanced optical bonding technology, where the touch screen is directly adhered to the LCD panel using an optically transparent adhesive. This process eliminates the air gap that typically causes up to 13% of unwanted reflections, resulting in significantly reduced glare. The outcome is a display that offers superior brightness, enhanced contrast, and increased durability.
Reliable Glass-Glass PCAP Touchscreen
The IEI DM2-W101, equipped with a durable and highly sensitive G/G PCAP touchscreen, offers excellent visibility, UV protection, and reliable performance in harsh industrial environments, making it ideal for demanding industrial applications.
Metal Housing for Optimal
Protection in Harsh Environments
Designed to withstand harsh and demanding environments, the DM2-W101 stands out with its robust industrial-grade protections, including wide temperature tolerance (-20°C to 60°C) and an IP65-rated dustproof and waterproof front panel. Its uniquely crafted die-cast aluminum front bezel further enhances durability, offering exceptional reliability in tough conditions.
Front-Accessible OSD Buttons
The OSD menu and buttons are located at the bottom of the display. The OSD menu simplifies operation, enabling quick control and customization of display settings for optimal viewing performance.
• Brightness: Adjusts the screen brightness to suit the viewing environment.
• Settings: Provides various options to adjust display parameters, such as backlight intensity, contrast, sharpness, and screen position.
• Display: Specifically for VGA connections, this menu allows for auto-adjustment of the screen position, as well as manual adjustments for horizontal and vertical positioning, clock, and phase.
• Color: Users can adjust gamma settings and select or customize color temperature settings to achieve the desired color balance.
• Input: Provides options to select the input source, such as VGA, DisplayPort, or HDMI, and allows for automatic input selection.
Narrow Bezel Design
With its robust aluminum material, the narrow bezel not only ensures durability but also maximizes screen space, delivering a space-saving multi-monitor setup.
Keyboard
Mouse
Flash Drive
Mobile HDD
Mobile Phone
Universal USB Hub, Easy to Expand Devices
Four USB ports enable the simultaneous connection of multiple peripherals, enhancing productivity and convenience by supporting multitasking and device charging without the need for additional hubs and eliminating the need to bend down to find the USB ports on the main units.
Keyboard
Mouse
Flash Drive
Mobile HDD
Mobile Phone
Universal USB Hub, Easy
to Expand Devices
Four USB ports enable the simultaneous connection of multiple peripherals, enhancing productivity and convenience by supporting multitasking and device charging without the need for additional hubs and eliminating the need to bend down to find the USB ports on the main units.
Easy Panel Mount
Easy integration and removal without requiring any special tools or expertise, making it a versatile and practical choice for various applications. Whether you're setting it up for the first time or relocating it to a new environment, the DM2 offers hassle-free maintenance and reliability.
720P Wide Angle
Fixed Focus Camera
Dual 2.5W
Speakers
Ideal for AI Facial
Recognition
The industrial monitor with a built-in camera offers stunning HD resolution (1280x720) for crystal-clear still images and seamless video streaming. Ideal for cutting-edge security applications, it includes AI facial recognition, ensuring that only authorized personnel can access restricted areas, log into software, and utilize facial unlocking. This advanced technology adds a robust layer of security to your industrial operations.
Clear Sound Notification System
Built-in dual 2W speakers at the bottom of the monitor, our design ensures no extra installation effort and avoids muffled audio. These speakers provide clear sound for notifications, enhancing intercoms and alarms. Deliver important messages and status updates for machinery.
Target Applications
The operation stations that need an industrial monitor working in semi-outdoor environments are partially exposed to sunlight conditions, but still offer some level of protection from the elements.
Industrial
(HMI, Control Panel...)
Transportation
(Aviation, Marine...)
Interactive Machine
(EV Charging,
Payment Machine...)
KIOSK
(ATM Kiosks,
Fast Food Ordering Kiosks...)
Outstanding PCAP Touchscreen Technology
IEI's rugged touchscreen adapts a glass-glass PCAP touch technology with integrated industrial-grade controllers, which is further developed to fulfill industrial capability. IEI DM2 series with PCAP touchscreen allow customers to experience it using gloves in harsh environments such as food processing, chemical and beverage industries.
Work with Gloves and Water
Anti-glare Coating
7H Scratch-Resistant
10-point Multi-touch
The optimization of the PCAP touch-sensitivity allows easy operation with thin rubber gloves or with work gloves. Moreover, the PCAP touchscreen is easy to clean, and requires no calibration after a period of operation.
PU Coated Gloves
(Thickness: 0.9 mm)
Anti-Static Gloves
(Thickness: 1.05 mm)
Medical Latex Gloves
(Thickness: 3~5 mil)
Anti-Static Gloves
(Thickness: 0.6~0.8 mm)
* The cloth, leather or thick gloves may need to tune with the touchscreen firmware for it to work well. The only limitations could be the number of touches on the screen at one time. For example, instead of having 10 touches, they may be reduced to 2 touches with gloves at one time.
The DM2-W101, equipped with anti-glare etching, is essential in industrial workspaces with high ambient light, as it reduces reflections and glare, ensuring clear visibility of critical information on screens. This feature not only minimizes eye strain and fatigue for workers but also helps maintain productivity and reduce the risk of work-related health issues.
The DM2-W101 boasts a PCAP surface with 7H scratch resistance, as tough as quartz, making it ideal for industrial environments where equipment endures frequent contact with tools, machinery, and abrasive materials. This robust coating ensures long-lasting screen integrity, significantly reducing the need for repairs or replacements.
The screen equips a 10-point multi-touch screen that has the ability to recognize and respond to ten simultaneous points of contact. This feature allows developer to design applications where complex gesture is needed to operate, such as zoom, rotate, swipe or other actions that need two or more people to operate the same monitor at once.
I/O Interface
Dimensions
Optional Accessories
Mounting Kit
Power Adapter and Core
32702-000202-100-RS (EU)
63040-010096-050-RS
63040-010060-200-RS
(60W, for Lite)
People Also Viewed
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 10.1” (16:10) |
| Brightness(cd/m2) | 400 |
| Max Resolution | 1280 x 800 |
| Contrast Ratio | 800:1 |
| Backlight MTBF(hrs) | 20000 |
| I/O Interface | |
| I/O Ports |
1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Input | 9V ~ 36V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 60°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black |
| Dimensions (LxWxH) (mm) | 251 x 180.95 x 49.30 |
| Cutout Dimensions | 241.80 x 157.80 |
| LCD | |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 178°/178° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | Capacitive:litek |
Ordering Information
| DM2-W101G-R10 | 10.1" 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-W101GL-R10 | 10.1" 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
Package Contents
| Package Content |
|
|---|
