PCIE-AM5

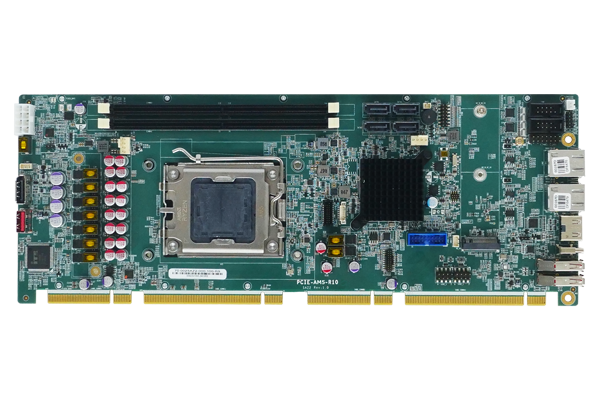

Full-size PICMG 1.3 CPU Card supports AMD Ryzen™ 7000/8000 Series Desktop Processors, DDR5, dual Display, Dual Intel® 2.5GbE, USB3.2, M.2, RoHS

PCIE-AM5
PCIE-AM5_IO
PCIE-AM5_back
PCIE-AM5_right
  • PCIE-AM5
  • PCIE-AM5_IO
  • PCIE-AM5_back
  • PCIE-AM5_right
» Full-size PICMG 1.3 CPU Card supports AMD 7000 & 8000G PHX1 series processor
» Support two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB
» Support DisplayPort 1.4, HDMI™
» Support Dual Intel® I226V 2.5GbE controller
» Flexible expansion with full-size PICMG1.3 CPU board

Specifications

Hardware Spec.

Form Factor
Form Factor Full Size Single Board Computer
System
CPU AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
Chipset AMD A620
Memory two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 338 mm x 126 mm
Net Weight GW:1000g / NW:500g
Storage
Storage 4 x SATA : 6Gb/s (RAID 0/1/10 supported)
I/O Interface
Display Output 1 x Display Port : internal 180° DP 1.4, 4K @60Hz
1 x HDMI™ : 4K @30Hz
Ethernet 2 x LAN -
LAN1: Intel® I226V 2.5GbE controller
LAN2: Intel® I226V 2.5GbE controller
I/O Interface 1 x DIO : 12-bit digital I/O (2x7 pin)
3 x External USB 3.2 Gen2x1 -
2 x USB 3.2 Gen2 (Type-A)
1 x Type C (10Gb/s)
2 x Internal RS-232/422/485 : 2x5 pin, P=2.54
8 x Internal USB 2.0 -
4 x USB 2.0 (2x4 pin, P=2.54)
4 x USB 2.0 to the backplane
2 x Internal USB 3.2 Gen1x2 : 5Gb/s, 2x10 pin
1 x Internal USB 3.2 Gen2x1 : 10Gb/s, internal Type A
Expansion 1 x M.2(NGFF) : M.2 M Key (2242/2280, PCIe Gen4 x4)
NVMe support
4 x PCIe x1 : signal via golden finger
(support 1 x4, or 4 x1)
1 x PCIe x16 : signal via golden finger
(Support x16, or x8 + x8, or x4 + x4 + x4 + x4)
Power
Power Supply Support AT/ATX mode
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing

Ordering Information

PCIE-AM5-R10 Full-size PICMG 1.3 CPU Card supports AMD Ryzen™ 7000 Series Desktop Processors,DDR5 SO-DIMM, Triple Display,Dual Intel 2.5GbE,USB3.2,M.2,RoHS

Package Contents

Package Content

  • 1 x PCIE-AM5 single board computer

  • 1 x I/O Shielding

  • 1 x SATA cable

  • 1 x QIG

Download Specs.
