WAFER-ASL

3.5” SBC supports Intel® Atom™ x7000 RE series on-board SoC, double display with DP, HDMI, triple 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM and RoHS, -40°C~85°C

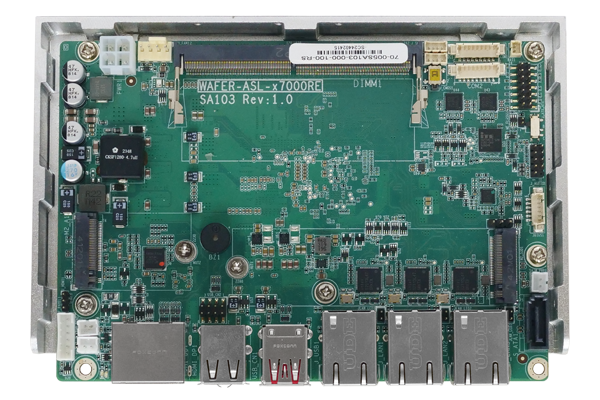

WAFER-ASL
WAFER-ASL-IO
WAFER-ASL-back
WAFER-ASL-left
  • WAFER-ASL
  • WAFER-ASL-IO
  • WAFER-ASL-back
  • WAFER-ASL-left
» 3.5” SBC supports Intel® Atom™ x7000 RE series on-board SoC
» One DDR5 4800 SO-DIMM, Up to 16GB
» Support 3 x 2.5GbE LAN with Intel® I226-IT
» Support M.2 M key and M.2 A key expansion
» Supports +12V~28V DC voltage input and -40°C~85°C wide temperature operating environment

Specifications

Hardware Spec.

Form Factor
Form Factor 3.5” SBC
System
CPU Intel® Amston Lake Atom™ x7000 series processor
Intel® Atom™ x7211RE SoC Processor
Intel® Atom™ x7213RE SoC Processor
Intel® Atom™ x7433RE SoC Processor
Intel® Atom™ x7835RE SoC Processor
Memory 1 x 262-pin DDR5 4800 SO-DIMM, Up to 16GB
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 146mm x 102mm
Net Weight 350g
Storage
Storage 1 x M.2(NGFF) : M.2 M Key 2242/2280 (PCIe Gen3 x2)
1 x SATA : 6Gb/s
I/O Interface
Display Output 1 x Display Port : up to 4096 x 2160 @ 60Hz
1 x HDMI™ : up to 4096 x 2160 @ 30Hz
Ethernet 3 x LAN -
LAN1: Intel® i226-IT 2.5 GbE LAN
LAN2: Intel® i226-IT 2.5 GbE LAN
LAN3: Intel® i226-IT 2.5 GbE LAN
Audio 1 x HD Audio : IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin)
I/O Interface 1 x DIO : 12-bit digital I/O (2x7 pin)
2 x External USB 2.0 (Type A)
2 x External USB 3.2 Gen2x1 : 10Gb/s(Type A)
1 x I²C : 1x4 pin, P=1.25
2 x Internal RS-232/422/485 : 1x9 pin, P=1.25
2 x Internal USB 2.0 (2x4 pin, P=2.0)
Expansion 2 x M.2(NGFF) -
1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2242/2280 (PCIe gen3 x2)
Power
Input +12V~28V DC input power (AT/ATX mode)
Power Consumption 12V@4.163A; 19V@2.618A; 24V@2.057A; 28V@1.771A
(Intel® Atom™ x7835RE with 16 GB 4800 MHz LPDDR5 memory, max. loading, EuP mode disabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -40°C ~ 85°C
Storage Temperature -40°C ~ 85°C
Humidity 5% ~95%, non-condensing
Certifications
Safety & EMC CE/FCC Compliant
Watchdog Timer
Watchdog Timer Software Programmable support 1~255 sec. System reset

Ordering Information

WAFER-ASL-R4-R10 3.5 SBC supports Intel® Atom™ x7835RE on-board SoC, triple display with DP ,HDMI and iDPM slot, triple 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM and RoHS, -40°C ~85°C
WAFER-ASL-R3-R10 3.5 SBC supports Intel® Atom™ x7433RE on-board SoC, triple display with DP ,HDMI and iDPM slot, triple 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM and RoHS, -40°C ~85°C
WAFER-ASL-R2-R10 3.5 SBC supports Intel® Atom™ x7213RE on-board SoC, triple display with DP ,HDMI and iDPM slot, triple 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM and RoHS, -40°C ~85°C
WAFER-ASL-R1-R10 3.5 SBC supports Intel® Atom™ x7211RE on-board SoC, triple display with DP ,HDMI and iDPM slot, triple 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM and RoHS, -40°C ~85°C

Package Contents

Package Content

  • 1 x WAFER-ASL SBC with heat spreader

  • 1 x SATA with power cable kit

  • 1 x QIG
