- Panel PC industriel léger
- ...

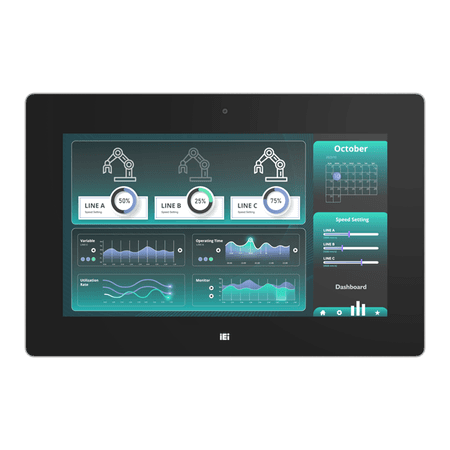

AFL4-W10-RK3568
» Rockchip RK3568 Platform
» New narrow bezel design
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Support WiFi5/ 6 and Bluetooth®5.0 (Optional)
Hardware Spec.
| System | |
|---|---|
| Cooling method / System Fan | Fanless |
| CPU | Rockchip® RK3568 (Quad-core Cortex-A55, up to 2.0 GHz) |
| Chipset | SoC |
| On-board Memory | 4GB LPDDR4/4X, Up to 8GB |
| Storage | 32GB eMMC NAND FLASH |
| Drive Bays | 1 x Micro SD Slot |
| Communication | |
| Wireless | Wi-Fi 5/6 & BT5.0 (IEI wireless module optional) |
| I/O Interface | |
| Audio |
AMP 1.3W (internal speaker) 1 x Audio Jack (Mic-in&Lineout) |
| Expansion |
1 x 3042/52 B-key (PCIe Gen2 x1, USB2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key |
| I/O Ports |
2 x USB3.0 Type A (1 x OTG, 1 x HOST) 2 x USB2.0 Type-A 2 x RS-232 & 2 x RS-485 by 1 x DB9 1 x HDMI™ 2.0 output 2 x 1GbE RJ45 By YT8521SC |
| Power | |
| Input | 12V DC Jack |
| Power consumption | 12V@2.25 (Rockchip® RK3568 with 4GB Memory, 32G eMMC, Debian OS) |
| Environment | |
| Operating Temperature | -10°C ~ 50°C with air flow |
| Humidity | 10% to 90% @40°C (non-condensing) |
| Storage Temperature | -20°C ~ 60°C |
| IP Level | Front panel IP64 |
| Physical Characteristics | |
| Color | Silver + Black |
| Mounting | Wall, Stand, Arm, VESA 75 |
| Dimensions (LxWxH) (mm) | 243.56 x 166.2 x 38.65 |
| Net Weight | 1.18 / 2.32kg |
| LCD | |
| Size | 10.1” (16:10) |
| Resolution | 1280 x 800 |
| Brightness (cd/m2) | 420 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H-V) | 160°/160° |
| Backlight MTBF | 30000 hours |
| Touch | |
| Touch Screen | PCAP with USB interface (anti-UV/AG coating) |
| Touch Controller | EETI EXC81 Series |
Ordering Information
| AFL4-W10-RK3568-R10 | 10.1" 420cd/m² 1280x800 fanless Panel PC with RK3568 on-board Processor , 4GB LPDDR4 on-board , 32GB Emmc,Option:802.11a/b/g/n/ac/ax WiFi&Bluetooth®5.2 module, PCAP touch,Debian10 OS,R10 |
|---|---|
| AFL4-W10-RK3568-A-R10 | 10.1" 420cd/m² 1280x800 fanless Panel PC with RK3568 on-board Processor , 4GB LPDDR4 on-board , 32GB Emmc,Option:802.11a/b/g/n/ac/ax WiFi&Bluetooth®5.2 module, PCAP touch,Android12 OS,R10 |
Package Contents
| Package Content |
|
|---|
