PAC-53G
» RoHS compliant design

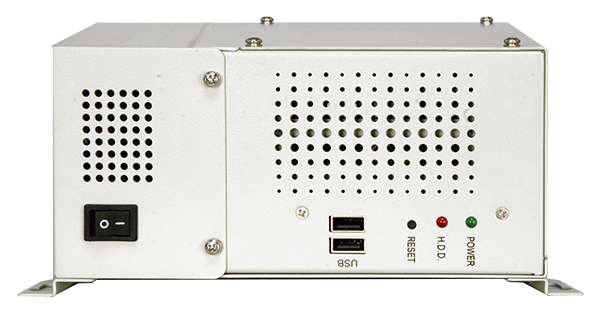

» Two USB ports on the front panel
» One 2.5” internal HDD bay
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Half-size, slot CPU cards |
| I/O Interface | |
| I/O Openings | 1 x LPT, 1 x COM |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 3 slots |
| System | |
| Drive Bays | 1 x 2.5" HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | W: White |
| Dimensions | |
| Dimensions | 218 mm x 95 mm x 200 mm(DxWxH) |
| Weight | |
| Weight | 2 kg/3.8 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| PAC-53GHWPX-R20/180W | 3-Slot Half size Chassis,White,Powder paint,with 180W ATX PSU,RoHS |
|---|---|
| PAC-53GHW-R20 | 3-Slot Half size Chassis,ATX Power Switch,White,Powder paint,W/O BP,W/O PSU,RoHS |
