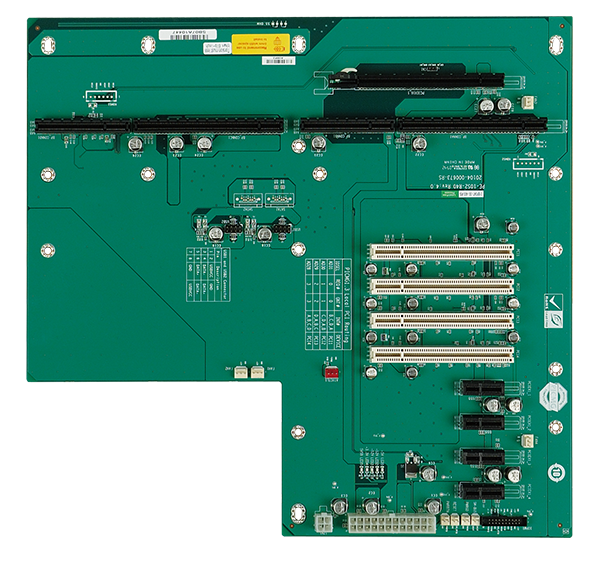

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

• 4 x Internal USB 2.0
• 1 x PCIe x16
• 4 x PCIe x1
• 4 x PCI Slot

Specifications

Hardware Spec.

I/O Interface
I/O Interface 4 x Internal USB 2.0
Expansion 1 x PCIe x16
4 x PCIe x1
4 x PCI Slot
Power
Power Supply 24+4 pin TX

Ordering Information

RACK-360GW-R22 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
RACK-360GB-R22 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
RACK-305GW-R22 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
RACK-305GB-R22 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
RACK-3000GW-R21 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
RACK-3000GB-R21 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
PE-10S2-R40 PICMG 1.3 ,10 Slots Backplane with 1PCIe x16 and 4PCIe x1 and 4PCI Slots,RoHS
