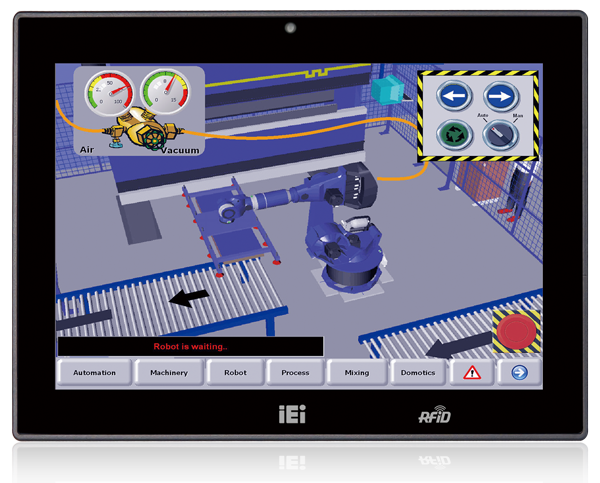

AFL3-12A-BT
» W10”~12” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
Hardware Spec.
| System | |
|---|---|
| CPU | Intel® Celeron® J1900 (quad core, 2.0 GHz) |
| Communication | |
| Wi-Fi | IEEE 802.11a/b/g/n/ac |
| I/O Interface | |
| RAM | One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM preinstalled (system max. 8GB) |
| I/O Ports and Switches |
1 x RS-232 COM port (RJ-45 connector) 1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V) 2 x USB3.2 Gen1 (5Gb/s) 2 x USB 2.0 2 x RJ-45 for GbE LAN 1 x Power switch 1 x Audio port (line-out) |
| Power | |
| Power Requirement | 9~30 VDC |
| Environment | |
| Operating Temperature | -20°C~50°C |
| Storage Temperature | -20°C~60°C |
| Storage | |
| Storage |
mSATA 2.5” SATA 3Gb/s HDD bay |
| Dimensions | |
| Dimensions | 303 x 243 x 44 |
| Weight | |
| Weight | 1.92Kg/3.95Kg |
| LCD | |
| Size | 12.1" |
| Resolution | 1024 x 768 |
| Brightness (cd/m2) | 500 |
| Contrast Ratio | 700:1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.240 (H) x 0.240 (V) |
| Viewing Angle (H-V) | 160°/140° |
| Backlight MTBF | 50000 (LED backlight panel) |
| Touch | |
| Touch Screen | 5-wire resistive touch window/ projected capacitive type |
| Touch Controller | PenMount DMC9000/ EETI EXC3146 |
| Other Features | |
| Camera | 2-megapixel with low light function |
| Microphone | digital microphone |
| I/O Interface | |
| I/O Interface | 1 x RS-232 (COM port (RJ-45 connector)) |
| 2 x USB 2.0 | |
| 2 x USB 3.2 Gen1x1 | |
| 1 x Audio ((line-out)) | |
| 2 x LAN (RJ-45 for GbE LAN) | |
| 1 x DC Input Jack (9-30V lockable power jack) | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 1 x RS-422/485 (COM port (DB-9 connector)(RI/5V/12V)) | |
Ordering Information
| AFL3-12A-BT-J1/R/4G-R16 | 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 4GB DDR3L RAM , with AG, R16 |
|---|---|
| AFL3-12A-BT-J1/R/2G-R16 | 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R16 |
| AFL3-12A-BT-J1/PC/4G-R16 | 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 4GB DDR3L RAM , with AG, R16 |
| AFL3-12A-BT-J1/PC/2G-R16 | 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R16 |
