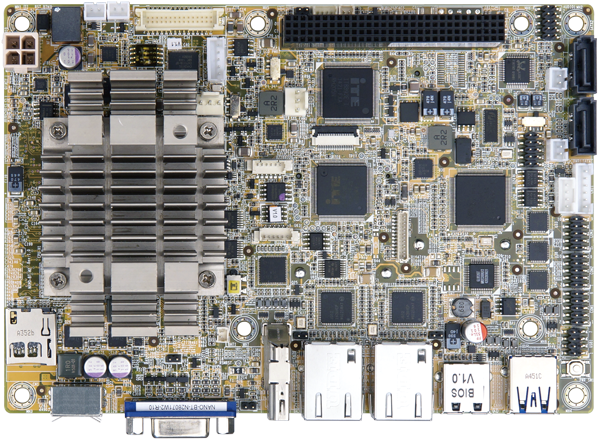

NANO-BT
» EPIC SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC
» Supports dual independent display with LVDS, VGA and HDMI™
» 1.35V DDR3L 1333/1066 MHz SDRAM support up to 8 GB
» Support IPMI 2.0 with iRIS-1010 module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
IEI Bay Trail Embedded Board
- Bay Trail embedded board series is powered by Intel® Bay Trail quad-core SoC which is three times faster than the single-core Intel® Atom™ N270 CPU. It upgrades the specifications to USB 3.0 and DDR3L to provide f aster data transmission and reduce power consumption which can greatly enhance work efficiency. This series also supports an extended operating temperature ranged from -40°C to +85°C for industrial applications in tough and rugged environments.
- Windows 7 (Pro/WES7/WEC7), Windows 8.1 (Pro/WE8), Windows 10 and Android operating systems are all supported by the low power consumption, fanless Bay Trail embedded board series to offer multiple option s for users. IEI Bay Trail industrial board series combines high resolution, great efficiency and low power consumption. Improving the overall function of the system allows users to replace Navy Pier series seamlessly and satisfie s their various requirements.
Specification Comparison Between N270+945GSE & Bay Trail
| Navy Pier (N270+945GSE) | Bay Trail Family | |
| Available CPU Types |
|
|
| TDP |
|
|
| Memory |
|
|
| Display Output |
|
|
|
|
|||
| Navy Pier (N270+945GSE) | Bay Trail Family | |||
| Launch | Q2’08 | Q4’13 | ||
| Process | 45nm | 22nm | ||
| Processor Frequency &TDP | N270: 1.6GHz/2.5W |
|
||
| Chipset TDP | Intel® 945GSE: 5.5W Intel® ICH7M: 1.9W |
N/A | ||
| Memory | DDR2 533MHz (Max. 2G) | DDR3L 1333MHz for J1900/N2930/E3845/E3827 (Max. 8GB) DDR3L 1333MHz for N2807 (Max. 4GB) DDR3L 1066MHz for E3826/E3825/E3815 (Max. 8GB) |
||
| Graphics | 2 Independent Displays DirectX9, OpenGL1.4 Gfx @ up to 133MHz |
2 Independent Displays Gen 7 4 EUs DirectX11.1 , OpenGL 4.0 Gfx @ up to 854MHz (J1900/N2930) |
||
| Video Decode | MPEG2 | MPEG4, h.264, VC-1/WMV9 VP8 up to 1080p |
||
| Stroage & IO | IDE, SATA, 6 USB 2.0 | SATA 3Gb/s, 1 USB 3.0, 3 USB 2.0, eMMC 4.51, SD card |
Product Overview
Suitable for Semi-outdoor Environment
Wide Temperature -20°C~60°C
Hardware Spec.
| System | |
|---|---|
| CPU |
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W) Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W) Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W) |
| Memory | One 204-pin 1333/1066 MHz single-channel unbuffered DDR3L SDRAM SO-DIMM |
| Memory Max. | 8 GB (J1900, N2930, E3827, E3826, E3815) or 4 GB (N2807) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 115 X 165 |
| Net Weight | 350g |
| Storage | |
| Storage | 2 x SATA :3Gb/s with 5V SATA power connector(no RAID) |
| I/O Interface | |
| Display Output | 1 x VGA :up to 2560x1600@60Hz |
| 1 x HDMI™ :up to 1920x1080@60Hz | |
| 1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I210-AT PCIe controller with NCSI support LAN2: Intel® I211-AT PCIe controller |
| Audio | Description: Realtek ALC662 HD Audio codec |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 3 x Internal RS-232 :2x5 pin, p=2.0 |
| 1 x Internal RS-422/485 :1 x4 pin, p=2.0 | |
| 1 x External USB 2.0 | |
| 1 x External USB 3.2 Gen1x1 | |
| 3 x Internal USB 2.0 :2x4 pin, p=2.0 | |
| 1 x PS/2 | |
| Expansion | 1 x PCIe mini Card Slot :Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2) |
| 1 x PCI-104 :PCI signal | |
| Other Features | |
| iRIS | 1 X iRIS-1010 slot |
| Power | |
| Power Consumption | 12V@1.52A (Intel® Atom™ processor J1900 with one 8 GB 1333 MHz DDR3 memory) |
| Power Supply |
12V only DC input 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| Environment | |
| Storage Temperature | -20°C ~ 60°C |
| Operating Temperature | -20°C ~ 60°C, -40°C ~ 85°C (NANO-BT-E38XX1W2) |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| NANO-BT-i1-N29301-R11 | EPIC SBC supports Intel 22nm Quad-Core Celeron N2930 1.83GHz (7.5W) on-board SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS |
|---|---|
| NANO-BT-i1-N28071-R11 | EPIC SBC supports Intel 22nm Dual-Core Celeron N2807 1.58GHz (4.5W) on-board SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS |
| NANO-BT-i1-J19001-R11 | EPIC SBC supports Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS |
