SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI™, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS

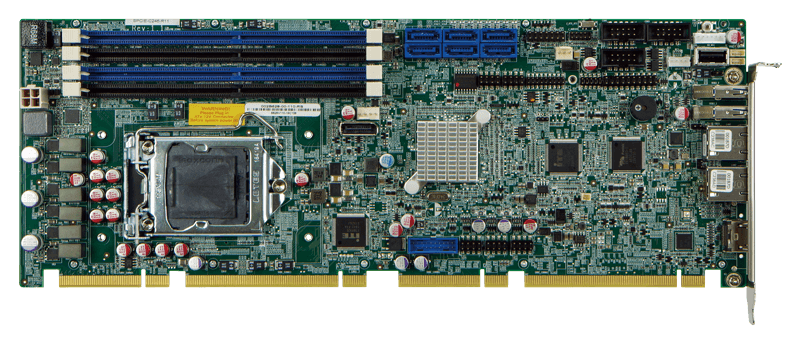

SPCIE-C246 Full Size Single Board Computer
SPCIE-C246 full size PICMG1.3 embedded computer
SPCIE-C246 full size PICMG1.3 embedded computer
  • SPCIE-C246 Full Size Single Board Computer
  • SPCIE-C246 full size PICMG1.3 embedded computer
  • SPCIE-C246 full size PICMG1.3 embedded computer
» PICMG 1.3 full-size CPU card
» LGA1151 Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor supported
» Dual-channel DDR4 2666MHz
» Support HDMI™ and internal DP display
» Intel® PCIe GbE with Intel® AMT 11.0 supported
» Support M.2 M key for storage (PCIe x4)
» Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s

Specifications

Hardware Spec.

System
CPU LGA1151 socket supports Intel® Xeon® E, 8th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
Chipset Intel® C246
Memory Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs ECC & non-ECC (C246)
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 338 X 126
Net Weight 500
Storage
Storage 6 x SATA :6Gb/s (RAID 0/1/5/10 supported)
1 x M.2(NGFF) :M key
I/O Interface
Display Output 1 x HDMI™ :up to 4096x2304@30Hz
1 x Display Port :up to 4096x2304@60Hz
Ethernet 2 x LAN :1 x Intel® I219LM PHY
1 x: Intel® I211-AT PCIe controller (Co-lay I210-AT)
Audio Description: Support 7.1 channel HD Audio by IEI AC-KIT-892HD kit
I/O Interface 3 x Internal RS-232 :2x5 pin, P=2.54
1 x Internal RS-422/485 :1x4 pin, P=2.0
1 x External USB 2.0 :Type A 180°
6 x Internal USB 2.0 :2x4 pin, P=2.54
1 x PS/2 :1x6 pin
Expansion 1 x PCIe x16 :signal via golden finger
4 x PCIe x1 :signal via golden finger
4 x PCI Slot :signal via golden finger
Other Features
TPM 2x10 pin
Power
Power Consumption 5V@3.12A, 12V@6.85A, 3.3V@1.13A, 5VSB@0.15A
(4.0 GHz Intel® Core™ i7-8700K CPU with four 16 GB 2666 MHz DDR4 memory)
Power Supply Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

SPCIE-C246-R11 Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI™, DP, Dual Intel® PCIe GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio, iAMT and RoHS

Package Contents

Package Content

  • 1 x SPCIE-C246 single board computer

  • 1 x Mini jumper pack

  • 1 x SATA cable

  • 1 x QIG (Quick Installation Guide)
