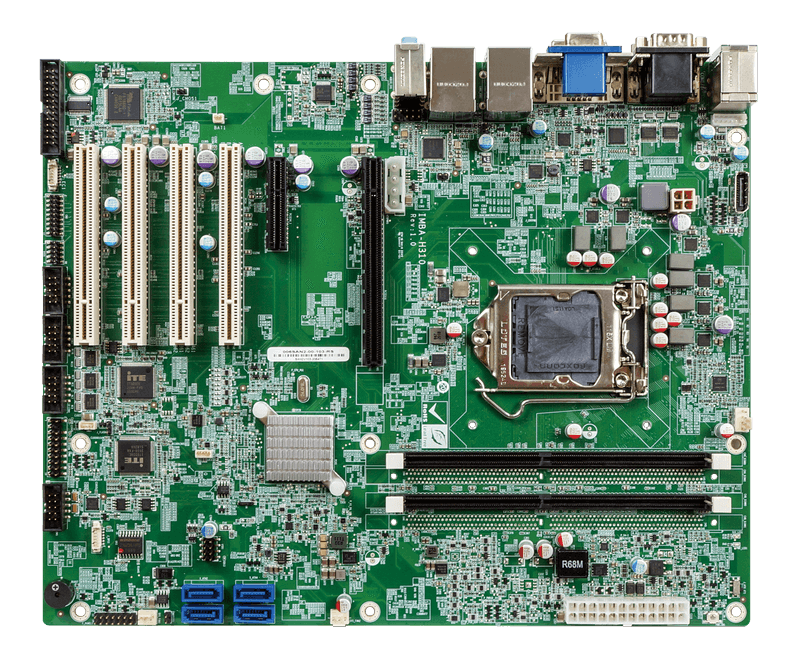

IMBA-H310
» LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
» Dual-channel DDR4 2666MHz
» Support dual displays with DVI-D/VGA/DP
» Support USB 3.2 Gen 1 (5Gb/s) and SATA 6Gb/s
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | ATX Motherboard |
| System | |
| CPU | LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
| Chipset | Intel® H310 |
| Memory | Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB |
| Memory Max. | Up to 64GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x3 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 305mm |
| Net Weight | GW:1200g / NW:700g |
| Storage | |
| Storage | 4 x SATA |

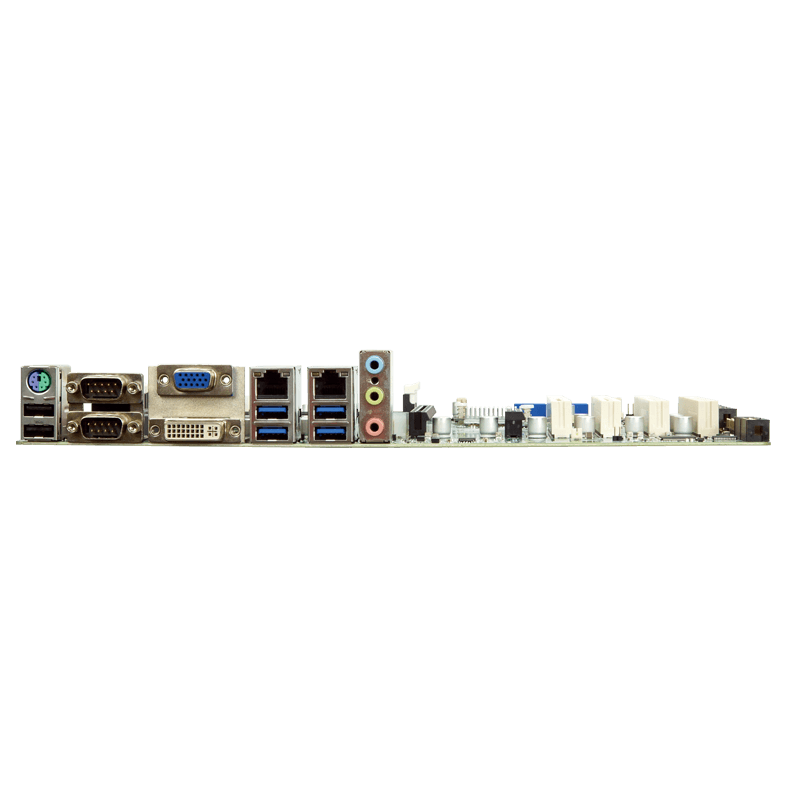

| I/O Interface | |
| Display Output | 1 x Display Port |
| 1 x DVI-D | |
| 1 x VGA | |
| Ethernet |
2 x LAN:: LAN1: Intel® I219LM PCIe controller LAN2: Intel® I211 AT PCIe controller |
| Audio | 1 x Front Audio(2x5-pin) |
| 1 x Line in | |
| 1 x Line out | |
| 1 x Mic | |
| I/O Interface | 1 x DIO: 8-bit digital I/O (2x5 pin) |
| 2 x External RS-232 | |
| 2 x External USB 2.0 | |
| 4 x External USB 3.2 Gen1x1 | |
| 3 x Internal RS-232(2x5 pin, P=2.54) | |
| 1 x Internal RS-232/422/485(2x5 pin, P=2.54) | |
| 2 x Internal USB 2.0(2x4 pin, P=2.54) | |
| 1 x LPT(2x13 pin, P=2.54) | |
| 1 x PS/2(1x6 pin) | |
| Expansion | 4 x PCI Slot |
| 1 x PCIe x16(Gen3) | |
| 1 x PCIe x4(Gen2) | |
| Other Features | |
| TPM | 1 x TPM 2.0 connector (2x10 pin) |
| Power | |
| Power Consumption |
3.3V@0.39A, 5V@2.99A, 12V@3.08A, 5VSB@0.2A (Intel® Core™ i5-8500 up to 3.00 GHz CPU with 20 GB 2400/2133 MHz DDR4 memory) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| IMBA-H310-R10 | ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
