» 10th Gen Intel® Xeon® & Core™ processor platform with Intel® Q470 chipset
» PCIe x4 slot supports capture cards or other applications
» Compact edge device with great computing & graphics performance
» PCIe x16 slot supports NVIDIA GPU Acceleration Card
» Two 260-pin 2666/2133MHz Dual-Channel DDR4 SODIMM unbuffered Memory supported up to 128GB

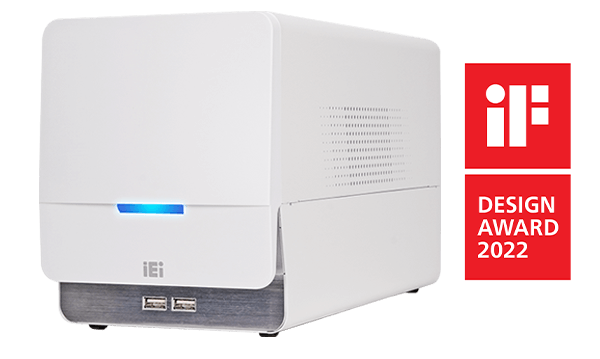

IEI AI Box PC HTB-210-Q470 Product Introduction
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
1 x USB Type C (USB/DP) 2 x USB 3.2 GEN1 2 x USB 2.0 (front side) 2 x Intel® I225-V PCIe controller (2.5GbE) 1 x RS-232/422/485 1 x HDMI™ (up to 4096 x 2304@30Hz) |
| Expansion Slots | |
| Expansion Slots |
1 x PCIe 3.0 x4 slot 1 x PCIe 3.0 x16 slot 1 x M.2 A key 2230 slot (PCIe x2 and USB 2.0) 1 x M.2 M key 2280 slot (PCIe x4 and SATA) |
| System | |
| Cooling method / System Fan | Smart Fan |
| Indicator&Buttons | |
| Buttons |
1 x Power button 1 x AT/ATX switch |
| Indicators | 1 x Power LED |
| Physical Characteristics | |
| Construction | Metal housing (SECC) |
| Color | |
| Color | White |
| Dimensions | |
| Dimensions | 140 x 306.7 x 171 mm |
| Weight | |
| Weight | 2800 g |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Humidity | 10% ~ 95% (non-condensing) |
Ordering Information
| HTB-210-Q470/2A-R11 | Embedded system w/o CPU, w/o RAM, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, for ATO only, R11 |
|---|
Package Contents
| Package Content |
|
|---|
