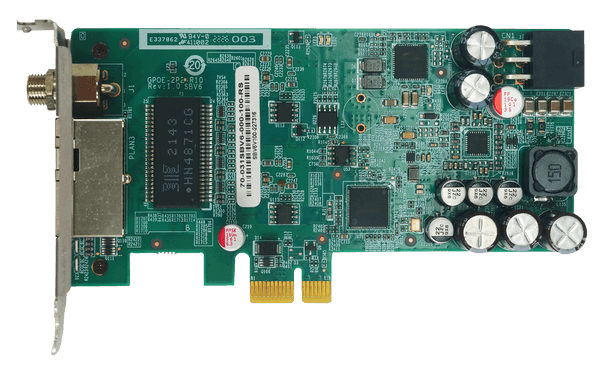

GPOE-2P2

PCI Express Power over Ethernet card, 2-port 2.5GbE, 802.3at compliant, low profile, RoHS

» PCI Express® x1 compliant
» Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
» Support link aggregation/jumbo frames (9 Kbyte)
» Support 12V~24V DC input power

Specifications

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 130 mm x 69 mm
Net Weight 110g
I/O Interface
Ethernet Description: [PoE Capability]
IEEE 802.3at
30W / 52V DC per port
(Support for total 60 watts under full load)
2 x LAN -
Intel® I226V controller
9kB jumbo frame
IEEE 802.3at, IEEE1588
Power
Power Supply 12~24V DC input -
1 x Internal DC input (2x3 pin)
1 x External DC Jack (Φ2.1/Φ5.5)
**Caution! Choose one input only at a time
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

GPOE-2P2-R10 PCI Express Power over Ethernet card, 2-port 2.5GbE, 802.3at compliant, low profile, RoHS

Package Contents

Package Content

  • 1 x GPOE-2P2 Card

  • 1 x Full height bracket

Download Specs.
