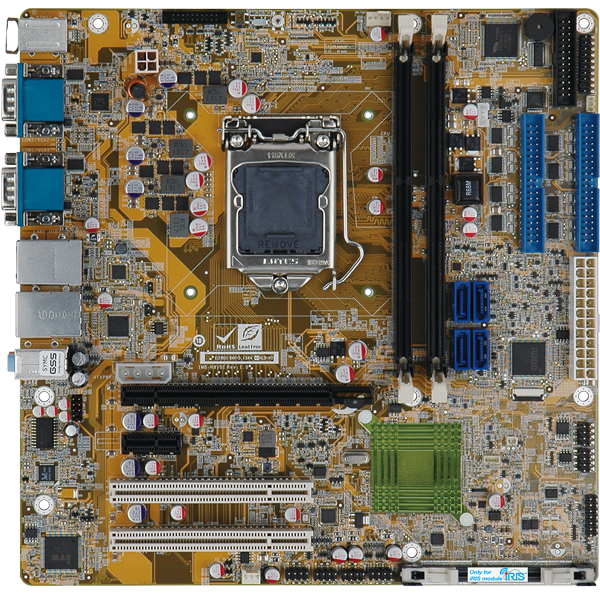

IMB-H810

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81

» LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Dual-channel DDR3 1333/1600 MHz support up to 16 GB
» Intel® HD Graphics technology integrates high-performance graphics and media processing
» Supports legacy PCI 32-bit 33/66 MHz
» Ten COM ports, USB 3.0 and SATA supported
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support IPMI 2.0 via iRIS-2400 module
» IEI jumper-less function

Specifications

Hardware Spec.

System
CPU LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
Chipset Intel® H81
Memory Two 240-pin 1600/1333 MHz dualchannel DDR3 & DDR3L SDRAM unbuffered DIMMs
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 244
Net Weight 680g
Storage
Storage 4 x SATA :2 x 3Gb/s, 2 x 6Gb/s
I/O Interface
Display Output 2 x VGA :up to 1920x1200@60Hz
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I217LM with Intel® AMT9.0 support
LAN2: Intel® I210-AT PCIe controller with NCSI
Audio Description: Realtek ALC662 HD Audio codec supports
5.1-channel
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 2 x External RS-232
8 x Internal RS-232 :2x20 pin, p=2.54
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
1 x PS/2
1 x LPT :2x13 pin, p=2.54
Expansion 1 x PCIe x16 :Gen 3
1 x PCIe x1
2 x PCI Slot
Other Features
TPM 2x10 pin
Power
Power Consumption 3.3V@0.64A, 5V@4.20A, 12V@0.14A,
Vcore_12V@3.88A, 5VSB@0.20A
(Intel® Core™ i7-4770K 3.90 GHz CPU with 8
GB (two 4 GB) 1333 MHz DDR3 memory)
Power Supply Support ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMB-H810-i2-R11 Micro ATX Motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3 CPU per Intel® H81, DDR3, VGA, Dual Intel PCIe GbE, USB 2.0, PCI, COM, LPT, SATA 3Gb/s, HD Audio, iRIS and RoHS
IMB-H810-ECO-R11 LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA, Dual PCIe GbE, USB 2.0, COM, LPT, SATA 6Gb/s, HD Audio, ECO packing, RoHS

Package Contents

Package Content

  • 1 x IMB-H810-i2 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG

Download Specs.
