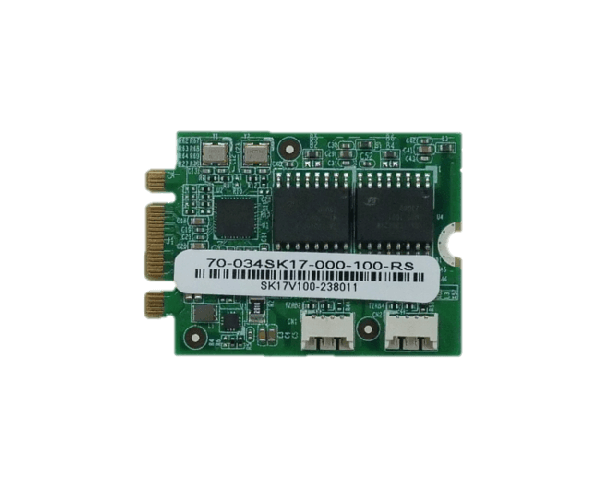

» M.2 B Key + M Key card supports 2 x Independent CAN ports
» Up to 1 Mbps transmission speed
» Support 16 MHz CAN controller frequency
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | M.2 B Key + M Key card |
| System | |
| Chipset |
Fintek F81601 (PCIE to 2 CAN bus), Chipanalog CA-IS3062 (CAN Transceiver) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 30mm x 42mm |
| Net Weight | GW: 100g / NW: 50g |
| I/O Interface | |
| I/O Interface | 2 x CAN-bus/OBD-II : CANBus 2.0 B |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
| Card Slot Interface | |
| M.2 | M.2 B/M key 3042 (PCIe gen3 x1 signal) |
Ordering Information
| iM2-CAN-2P-R10 | M.2 B Key + M Key card (3042) supports 2-Port CAN Bus, RoHs |
|---|
Package Contents
| Package Content |
|
|---|
