DRPC-140-EHL

Fanless DIN-Rail Embedded System

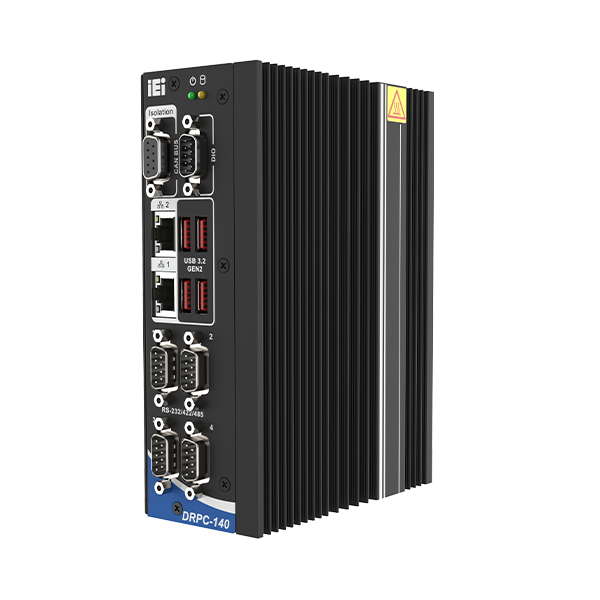

DRPC-140 Right Side
DRPC-140 IO
DRPC-140 Left Side
DRPC-140 Left Side 45
DRPC-140 Left Side with DIN
  • DRPC-140 Right Side
  • DRPC-140 IO
  • DRPC-140 Left Side
  • DRPC-140 Left Side 45
  • DRPC-140 Left Side with DIN
» Fanless system
» Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» Four RS232/422/485 Serial port
» Two isolation CAN Bus interface
» CE/FCC compliant

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • Chipset: SoC
  • System Memory:
    1 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 32GB)
  • Power:
    3-pin terminal block: 12-24V DC
    Consumption: 12V@3.36 (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
  • USB:
    4 x USB 3.2 Gen2
  • Ethernet:
    2 x 2.5 GbE by Intel® I226-V controller
  • Display:
    2 x HDMI™ (up to 4K@30Hz)
  • COM Port:
    4 x RS-232/422/485 (DB-9)
  • Digital I/O:
    8-bit Digital I/O (4-in/ 4-out)
  • CAN BUS:
    2 x CAN-bus (DB9 with 2.5kV isolation)
  • Wireless:
    1 x 802.11a/b/g/n/ac (optional)
  • TPM:
    1 x TPM (2 x10 pin)
    Intel PTT
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x M.2 A Key 2230 (PCIe Gen3 x1/USB 2.0)
    1 x M.2 M Key 2280 (PCIe Gen3 x2)
System
Cooling method / System Fan Fanless
Drive Bays eMMC 5.1 (Optional) (MOQ, please contact with sales account manager)
Indicator&Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators 1 x LED for Power
1 x LED for HDD
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 58.75 x 130 x 174 (mm)
Weight
Weight Net: 1.39kg / Gross: 1.68 kg
Environment
Operating Temperature -20°C ~ 60°C with 0.7M/S air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration MIL-STD-810G 514.6C-1 (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC CE, FCC, UKCA
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

DRPC-140-EHL-JC-R11 Fanless embedded system, Intel® Celeron® J6412 2.0GHz, (up to 2.6GHz, 4-Core, TDP 10W), 8GB DDR4 pre-installed memory, 4 x RS-232/422/485, 4 x USB 3.2, 2 x HDMI, 2 x 2.5GbE Lan, 8-bit DIO, 2 x CAN-Bus, 12~24V DC and RoHS

Package Contents

Package Content

  • 1 x DIN-rail mounting kit

  • 1 x Screw pack
