TANK-630-EHL

Fanless Embedded System

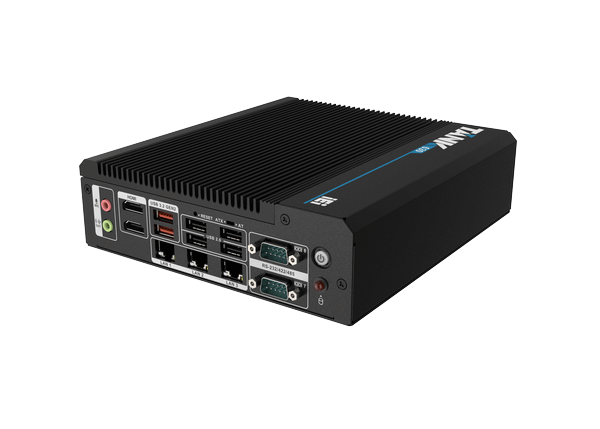

TANK-630-EHL FRONT IO
TANK-630-EHL BACK IO
TANK-630-EHL WITH STAND
  • TANK-630-EHL FRONT IO
  • TANK-630-EHL BACK IO
  • TANK-630-EHL WITH STAND
» Fanless system with Intel® Celeron® J6412 processor
» Multiple COM ports: six RS-232 and two RS-232/422/485
» 2 x HDMI dual independent display
» M.2 and one 2.5” SATA storage device
» CE/FCC compliant

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • Chipset:
    SoC
  • System Memory:
    2 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 32GB)
  • Power:
    DC Jack: 12 ~ 28V DC
    Terminal Block: 12 ~ 28V DC
    Consumption: 12V@3.36 (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
  • USB:
    2 x USB3.2 Gen2
    4 x USB 2.0
  • Ethernet:
    3 x 2.5 GbE by Intel® I225-V/I226-V controller
  • Display:
    2 x HDMI™ (up to 4K@30Hz)
  • COM Port:
    2 x RS-232/422/485 (DB-9)
    6 x RS-232 (DB-9)
  • Digital I/O:
    12-bit Digital I/O (DB15)
  • Audio:
    1 x Line-out
    1 x Mic-in
  • Wireless:
    1 x 802.11a/b/g/n/ac (optional)
  • TPM:
    1 x TPM (2 x10 pin)
    Intel PTT
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A-key (PCIe Gen3 x1/USB 2.0)
    1 x 2042/52/80 B-key (SATA/USB 2.0)
    1 x 2280 M-key (PCIe Gen3 x2)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators 1 x LED for Power
1 x LED for HDD
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 184 x 200.6 x 53 (mm)
Weight
Weight 2.04 /2.29 kg
Environment
Operating Temperature -10°C ~ 50°C with 0.7M/S air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration MIL-STD-810G 514.6C-1 (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC CE, FCC, UKCA
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

TANK-630-EHL-JC-R10 Fanless embedded system with Intel® Celeron® J6412 2.0GHz,(up to 2.6GHz, 4-Core, TDP 10W), 8GB DDR4 pre-installed memory, 10V~28V DC, 6xRS232, 2xRS-232/422/485, 2xUSB 3.2, 4xUSB2.0, 2xHDMI, 3x2.5GbE Lan, RoHS

Package Contents

Package Content

  • 1 x Mounting Bracket

  • 1 x Screw pack
