WAFER-IMX8MP

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS

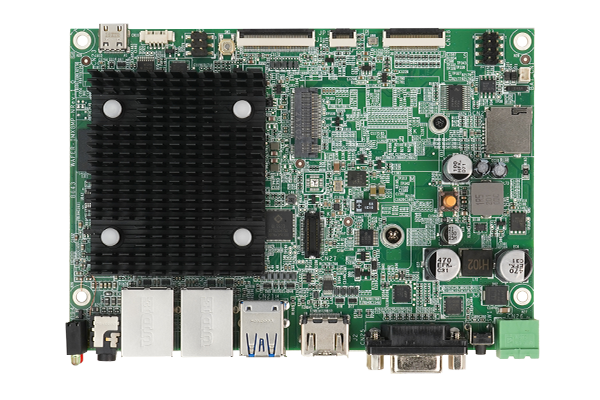

WAFER-IMX8MP Front
WAFER-IMX8MP IO
WAFER-IMX8MP Back
WAFER-IMX8MP Left Side
WAFER-IMX8MP Right Side
  • WAFER-IMX8MP Front
  • WAFER-IMX8MP IO
  • WAFER-IMX8MP Back
  • WAFER-IMX8MP Left Side
  • WAFER-IMX8MP Right Side
» 3.5” SBC with NXP i.MX 8M Plus Quad processor on-board SoC
» 4GB LPDDR4 memory (up to 8GB) & 16GB eMMC NAND flash (up to 128GB)
» Dual displays with HDMI™, MIPI DSI and camera MIPI CSI input
» Rich I/O: GbE RJ45, USB 5Gb/s, full RS-232/422/485, micro SD slot
» M.2 B Key Slot (3G/LTE/5G module optional)
» Optional Wi-Fi 5 / Wi-Fi 6 / Bluetooth 5.0
» OS supports Android 13 / Yocto 4.0 (Linux Kernel 5.10)

Specifications

Hardware Spec.

Form Factor
Form Factor 3.5” SBC
System
CPU
  • Processor: NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)
  • GPU: GC7000UL 3D (2 shaders), GC520L
  • NPU: up to 2.3 TOPS
Memory 4GB LPDDR4-3200
Memory Max. up to 8GB
Cooling method / System Fan Heatsink
Supported OS Android 13, Yocto 4.0, Ubuntu 22.04
Physical Characteristics
Dimensions (LxWxH) (mm) 146 x 102
Storage
Storage SD/MicroSD card : Micro SD slot
eMMC : 16GB eMMC NAND flash, up to 128GB
I/O Interface
Display Output 1 x HDMI™ : output 2.0a Type A, up to 4K
1 x MIPI DSI : 4 lanes (40-pin 0.5mm FPC 90°)
Ethernet 2 x LAN : GbE RJ45
Audio Description: 1 x 3.5mm Audio Jack (Mic-in & Line out)
2 x Speaker (3W/8Ω)
I/O Interface 1 x External RS-232/422/485 (DB9 Port)
1 x Internal RS-232/422/485 : RS-232/RS-485 (2x3 pin header)
1 x I²C (for Touch, 8-pin 2.0mm FPC)
GPIO : 8 bit (4 in / 4 out, pin header)
3 x USB -
2 x Type-A (5 Gb/s)
1 x Type-C (Support USB 2.0 for download)
Expansion 1 x PCIe x1 (Gen 3)
1 x M.2(NGFF) : B Key Slot (3G/LTE/5G module optional)
Wireless
Wi-Fi Support Wi-Fi 5/6 (B to B IEI module optional)
Bluetooth Bluetooth V5.0 optional
Other Features
Camera 1 x MIPI CSI 4 lanes (30-pin 0.5mm FPC)
Power
Input 12V DC
Environment
Operating Temperature 0°C ~ 70°C with air flow
Storage Temperature -20°C ~ 80°C
Humidity 10% ~ 99% (non-condensing)
Certifications
Safety & EMC EMC Class B

Ordering Information

WAFER-IMX8MP-Y/BD-R10 3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16GB eMMC NAND Flash, Yacto platform
WAFER-IMX8MP-U/BD-R10 3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16GB eMMC NAND Flash, Ubuntu platform
WAFER-IMX8MP-A/BD-R10 3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16GB eMMC NAND Flash, Android platform

Package Contents

Package Content

  • 1 x WAFER-IMX8MP single board computer

  • 1 x Pluggable female terminal block

  • 1 x QIG

Download Specs.
