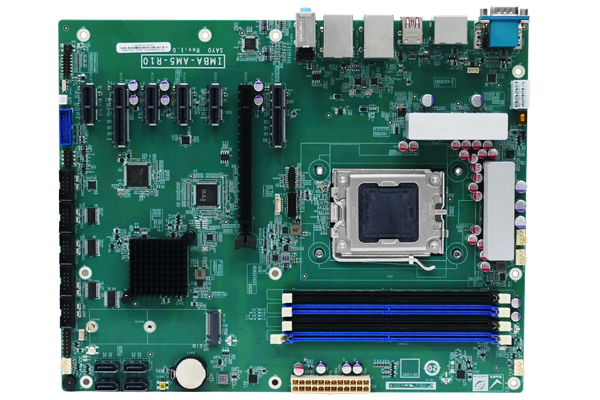

IMBA-AM5
» ATX motherboard supports AMD 7000 & 8000G & 9000 PHX1 series processor
» Support four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 128GB
» Triple independent display via HDMI™, DP
» Support Dual Intel® I226V 2.5GbE controller
» Support PCIe Gen4 x1, PCIe Gen4 x4, PCIe Gen4 x16, M.2 M key expansion
Powering Industrial Excellence:
ATX Motherboard with AMD AM5 Ryzen™ Processor Support
Unleash next-gen power for your industrial operations with the IMBA-AM5 ATX industrial motherboard. This motherboard boasts the latest AM5 socket, supporting AMD Ryzen™ 7000/8000G processors for unparalleled performance. With native support for DDR5 memory, expect blazing-fast performance and responsiveness for your most demanding applications. The IMBA-AM5 is equipped with versatile PCIe expansion slots, dual 2.5GbE Ethernet ports, and RAID 0/1/10 capability, ensuring seamless connectivity, data redundancy, and high-speed data transfer for industrial applications. Additionally, its liquid cooling compatibility guarantees efficient thermal management. Elevate your industrial computing experience with the IMBA-AM5 ATX motherboard, designed to set a new benchmark for performance, reliability, and efficiency in industrial computing.
AMD Ryzen™ 7000/8000
DDR5 Memory Support
Dual 2.5GbE
Expansion Versatility
RAID 0/1/10
Liquid Cooling Support
Powered by AMD Ryzen™ 7000/8000G - Exceptional Performance and Power Efficiency
Powering industrial performance, the IMBA-AM5 motherboard boasts AMD AM5 socket compatibility for unparalleled processing power and efficiency with support for AMD Ryzen™ 7000/8000G (Phoenix 1) desktop processors, ensuring seamless data handling and heightened productivity across industrial applications. Engineered for power efficiency, Ryzen™ minimizes energy consumption, reducing operational costs for industrial operations. The IMBA-AM5’s scalability allows for flexible customization to meet diverse performance demands, ensuring optimal performance tailored to specific industrial tasks.
Integrated Radeon™ Graphics and Multi-Display Support
The AMD processor integrates Radeon™ graphics based on RDNA™ 2 architecture, providing potent GPU performance without requiring a separate graphics card. This reduces costs, simplifies setup, and ensures remarkable visual quality for industrial applications. Additionally, the motherboard supports triple independent displays, enabling simultaneous operation of multiple displays through one DP 1.4 and two HDMI® 1.4 ports, enhancing productivity across various industrial tasks.
DDR5 RAM Unleashes Next Generation Performance
DDR5 brings a significant bandwidth boost, enabling faster data transfer between the CPU and memory, ultimately leading to smoother overall system performance. With four DIMM slots, the IMBA-AM5 can be installed with up to 128GB 5200 MT/s DDR5 memory, delivering data transmission of unparalleled quality and reliability for data centers, AI or other high-speed computing applications.
Benefits of DDR5
Higher capacity & Faster transfer
Up to 128GB capacity & up to 5200MT/s transfer speed
Low power
Voltage lowered from 1.2V to 1.1V
Dual Sub-channel
Two 32-bit independent channels, doubling the bandwidth.
Ultimate Expansion Versatility
Equipped with extensive expansion capabilities, the IMBA-AM5 offers unparalleled versatility for expanding system capabilities. Whether high-speed data transfer, additional peripheral connectivity, or storage expansion is required, this ATX motherboard provides the flexibility to accommodate specific requirements.
PCI Express Slots
With support for PCIe Gen4 technology, users can harness the full potential of the latest expansion devices, ensuring optimal performance and scalability for industrial applications.
M.2 M Key for NVMe SSD
The equipped M.2 2242/80 M-key sockets come with PCI Express® Gen4 x2 bandwidth and support up to 32Gbps data-transfer speeds, making it the perfect choice for installing NVMe SSD to provide fast data access in rugged environment.
Maximizing Industrial Efficiency with Enhanced Network Connectivity
Supercharge your network performance with the IMBA-AM5's integrated Intel® I226-V controllers. Dual 2.5GbE LAN ports deliver blazing-fast data transfers and lower power consumption, ensuring smooth operation and minimal latency even under heavy workloads. This makes the IMBA-AM5 ideal for applications like smart surveillance and AI recognition systems, where a robust network foundation is critical.
Enhanced Cooling Performance and Reliability
Featuring an AIO pump connector, the IMBA-AM5 ensures optimal operation of all-in-one liquid cooling systems, providing efficient heat dissipation for the high-performance CPU. The AIO pump connector facilitates seamless integration with liquid cooling solutions, allowing users to regulate pump speed and optimize cooling performance based on system demands. With this advanced feature, the IMBA-AM5 empowers users to maintain stable and efficient operation, even under heavy workloads or in challenging industrial settings.
Note: The CPU liquid cooler shown in the image is not included in the package and is for illustration purposes only.
Industrial Automation
Medical Imaging and Diagnostics
Digital Signage
Machine Vision / Image Processing
Optional Accessories
Cable
CPU Fan
19800-003100-100-RS
•Dual-port USB cable with bracket
•Length: 300mm
•Pin header: Two 4-pin (1x4), p=2.54 mm
19800-010500-200-RS
•USB 3.0 cable with bracket
•Length: 450mm
•Pin header: 20-pin (2x10), p=2.00 mm
32205-000702-200-RS
• RS-232 cable
• Length: 230mm
• Pin header: 10-pin (2x5), p=2.54 mm
19100-000344-00-RS
• 65W CPU fan
• Heatsink: 58 x 45.5 x 71.81 (mm)
• Fan: 60 x 60 x 25.4 (mm)
19100-000345-00-RS
•65W CPU fan
•Heatsink: 72 x 70 x 25.5 (mm)
•Fan: 70 x 70 x 15.3 (mm)
19100-000348-00-RS
• 120W CPU fan
• Heatsink: 98 x 72 x 120 (mm)
• Fan: 92 x 92 x 25 (mm)
19100-000338-00-RS
• 170W CPU fan
• Heatsink: 120 x 60 x 150.7 (mm)
• Fan: 120 x 120 x 25 (mm)
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | ATX |
| System | |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G & 9000 PHX1 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory |
Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 128GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x PUMP fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244 x 305 |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
| Storage | 4 x SATA : 6Gb/s (RAID 0/1/10 supported) |
| I/O Interface | |
| Display Output | 2 x HDMI™ : up to 4096 x 2304@30Hz |
| 1 x Display Port : up to 4096 x 2304 @60Hz | |
| Ethernet |
2 x LAN - LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| Audio |
HD Audio - Realtek ALC888S HD Audio codec supports 2.1-channel 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio (2x5 pin) |
| I/O Interface | 1 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 1 x Internal RS-232/422/485 : RS-485 support AFC, 2x5 pin, P=2.54 | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.54 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 4 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 2 x Internal USB 3.2 Gen1x2 : 5Gb/s, 2x10 pin | |
| 2 x External USB 3.2 Gen1x2 : Type-A, 5Gb/s | |
| Expansion | 1 x PCIe x16 : PCIe Gen4 x16 with x16 Signal(witn Ryzen8000G PHX1 only x8 Signal) |
| 2 x PCIe x4 : PCIe x4 open-end (Slot 3 & 4) Gen4 | |
| 4 x PCIe x1 : PCIe Gen4 x1 open-end | |
| 1 x M.2(NGFF) : M Key (2242/2280, PCIe Gen4 x2) NVMe support | |
| Power | |
| Power Consumption |
3.3V@1.62A, 5V@11.63A, 12V@19.46A, 5VSB@0.04A (AMD Ryzen 9 7950X; AMD Ryzen 9 7900 CPU with Apacer D12.35306H.001 32GB DDR5 5600 CL46 memory) |
| Power Supply | Support AT/ATX mode |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| IMBA-RZ7000-R10 | ATX motherboard supports AMD 7000 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|---|
| IMBA-AM5-R10 | ATX motherboard supports AMD 7000 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
Package Contents
| Package Content |
|
|---|
