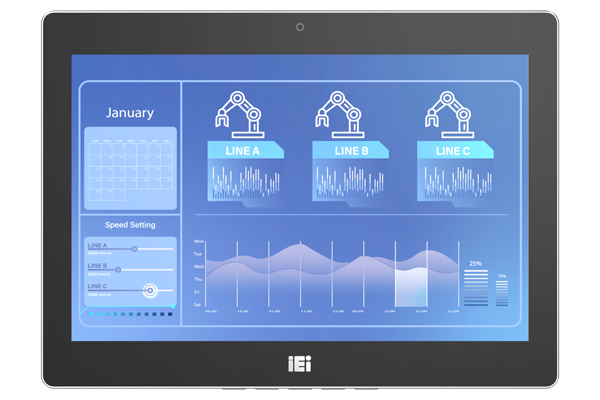

DM2-121
» Front OSD, easy access for setting adjustment
» Speakers positioned at the front, ensuring clear sound delivery even in panel mount
» Supports gloved operation and waterproof protection
» Built-in camera, ideal for AI facial recognition
» USB 3.2 Gen1 Type-A supports 10W
» IP65 compliant front panel with aluminum frame
» Anti-glare and anti-UV PCAP
» High brightness (HL only)
Designed to endure the harshest conditions, the DM2-121 combines IP65-rated front panel protection, robust all-metal construction, and extended temperature support from -20°C to 60°C, while offering a 1000-nit LED backlight and anti-glare coating for optimal visibility in bright environments. Integrated with an HD camera, dual front-facing speakers, and four USB 3.2 Gen 1 ports for enhanced productivity, this monitor is engineered to provide security, clear communication, and seamless installation, making it an indispensable tool for modern industrial operations.
1000 nits sunlight
readable (optional)
Webcam and
Dual 2W Speakers
-20°C ~ 60°C
Extended Temperature
IP65 Ingress Protection and
Military Standard Vibration Resistance
Anti-UV/Glare
Scratchproof
Wide Range DC Input
Integrated USB Hub
1,000 Nits
Sunlight Readable
Anti-Glare and
Anti-UV Multitouch
In high ambient brightness environments, such as kiosks or brightly lit indoor settings, standard TFT LCDs can appear dim and washed out, making content difficult to read. The IEI DM2-121 HL models, equipped with a 1000-nit (cd/m²) LED backlight TFT LCD, a 1000:1 high contrast ratio, and accurate color reproduction capabilities, excel in extremely bright surroundings, ensuring clear and vivid visibility.
* Applicable for DM2-121E-HL and DM2-121EL-HL models only.
The DM2-121 series offers anti-glare and anti-UV protection to prevent eye strain and protect touchscreen components from UV radiation damage. With 10-point multitouch PCAP, it ensures precise and smooth interactions, even when used with gloves or in wet conditions. Additionally, its 7H scratch-resistant surface enhances durability.
Glove Detectable PCAP Touchscreen
The optimized PCAP touch-sensitivity allows easy operation with thin rubber or work gloves. Integrated industrial-grade controllers, further developed to meet industrial requirements, enable the DM2-121 series to be used with gloves in harsh environments such as food processing, chemical, and beverage industries.
PU Coated Gloves
(Thickness: 0.9 mm)
Anti-Static Gloves
(Thickness: 1.05 mm)
Medical Latex Gloves
(Thickness: 3~5 mil)
Anti-Static Gloves
(Thickness: 0.6~0.8 mm)
* The cloth, leather or thick gloves may need to tune with the touchscreen firmware for it to work well. The only limitations could be the number of touches on the screen at one time. For example, instead of having 10 touches, they may be reduced to 2 touches with gloves at one time.
Easy Panel Mount
Easy integration and removal without requiring any special tools or expertise, making it a versatile and practical choice for various applications. Whether you're setting it up for the first time or relocating it to a new environment, the DM2 offers hassle-free maintenance and reliability.
Advantages of Panel-Mounted Displays
Front Panel IP65
Ingress Protection
The rubber strip around the panel mounting surface and the seamless front panel design work together to create a completely flat surface, preventing dust and water ingress and ensuring longevity and reliability in harsh environments.
Front-Accessible OSD Buttons
The OSD menu and buttons are located at the bottom of the display. The OSD menu simplifies operation, enabling quick control and customization of display settings for optimal viewing performance.
• Brightness: Adjusts the screen brightness to suit the viewing environment.
• Settings: Provides various options to adjust display parameters, such as backlight intensity, contrast, sharpness, and screen position.
• Display: Specifically for VGA connections, this menu allows for auto-adjustment of the screen position, as well as manual adjustments for horizontal and vertical positioning, clock, and phase.
• Color: Users can adjust gamma settings and select or customize color temperature settings to achieve the desired color balance.
• Input: Provides options to select the input source, such as VGA, DisplayPort, or HDMI, and allows for automatic input selection.
Narrow Bezel Design
With its robust aluminum material, the narrow bezel not only ensures durability but also maximizes screen space, delivering a space-saving multi-monitor setup.
Keyboard
Mouse
Flash Drive
Mobile HDD
Mobile Phone
Universal USB Hub, Easy to Expand Devices
Four USB ports enable the simultaneous connection of multiple peripherals, enhancing productivity and convenience by supporting multitasking and device charging without the need for additional hubs and eliminating the need to bend down to find the USB ports on the main units.
Keyboard
Mouse
Flash Drive
Mobile HDD
Mobile Phone
Universal USB Hub, Easy
to Expand Devices
Four USB ports enable the simultaneous connection of multiple peripherals, enhancing productivity and convenience by supporting multitasking and device charging without the need for additional hubs and eliminating the need to bend down to find the USB ports on the main units.
720P Wide Angle
Fixed Focus Camera
Dual 2.5W
Speakers
Ideal for AI Facial
Recognition
The industrial monitor with a built-in camera offers stunning HD resolution (1280x720) for crystal-clear still images and seamless video streaming. Ideal for cutting-edge security applications, it includes AI facial recognition, ensuring that only authorized personnel can access restricted areas, log into software, and utilize facial unlocking. This advanced technology adds a robust layer of security to your industrial operations.
Clear Sound Notification System
Built-in dual 2W speakers at the bottom of the monitor, our design ensures no extra installation effort and avoids muffled audio. These speakers provide clear sound for notifications, enhancing intercoms and alarms. Deliver important messages and status updates for machinery.
Target Applications
The operation stations that need an industrial monitor working in semi-outdoor environments are partially exposed to sunlight conditions, but still offer some level of protection from the elements.
Industrial
(HMI, Control Panel...)
Transportation
(Aviation, Marine...)
Interactive Machine
(EV Charging,
Payment Machine...)
KIOSK
(ATM Kiosks,
Fast Food Ordering Kiosks...)
Quick Access Ports and Wide DC Voltage Compatibility
Equipped with all standard ports for easy accessibility, including USB, HDMI, and DP ports. Its advanced components support a wide input range from 9V to 36V with DC jack or terminal block choices, ensuring compatibility with various voltage input specifications and making it suitable for diverse environments and applications.
Dimensions
Optional Accessories

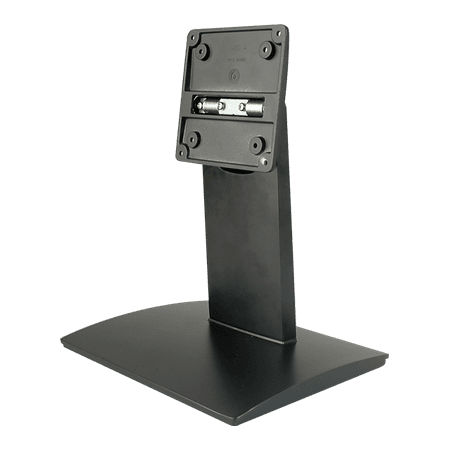

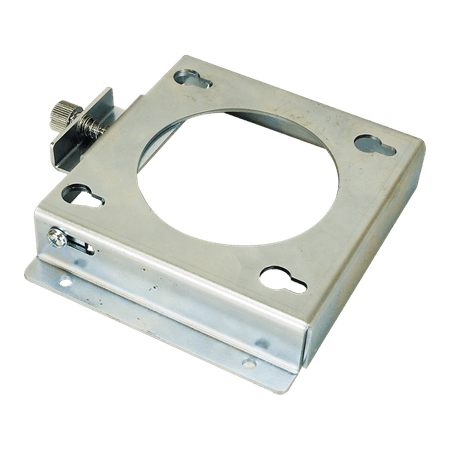

Mounting Kit
Power Adapter and Core
32702-000202-100-RS (EU)
63040-010096-050-RS
63040-010060-200-RS
(60W, for Lite)
People Also Viewed
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 12.1” (4:3) |
| Brightness(cd/m2) | 500 (1000 for HL) |
| Max Resolution | 1024 x 768 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF(hrs) | 50000 |
| I/O Interface | |
| I/O Ports |
1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Power adapter | 12V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black + Silver |
| Dimensions (LxWxH) (mm) | 279.86 x 237.50 x 49.30 |
| Cutout Dimensions | 270.50 x 214.10 |
| LCD | |
| LCD Color | 16.2M |
| Viewing Angle (H-V) | 178°/178° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | Capacitive:litek |
Ordering Information
| DM2-121E-R10 | 12.1" 500 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-121EL-R10 | 12.1" 500 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
| DM2-121EL-HL-R10 | 12.1" 1000 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
| DM2-121E-HL-R10 | 12.1" 1000 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
