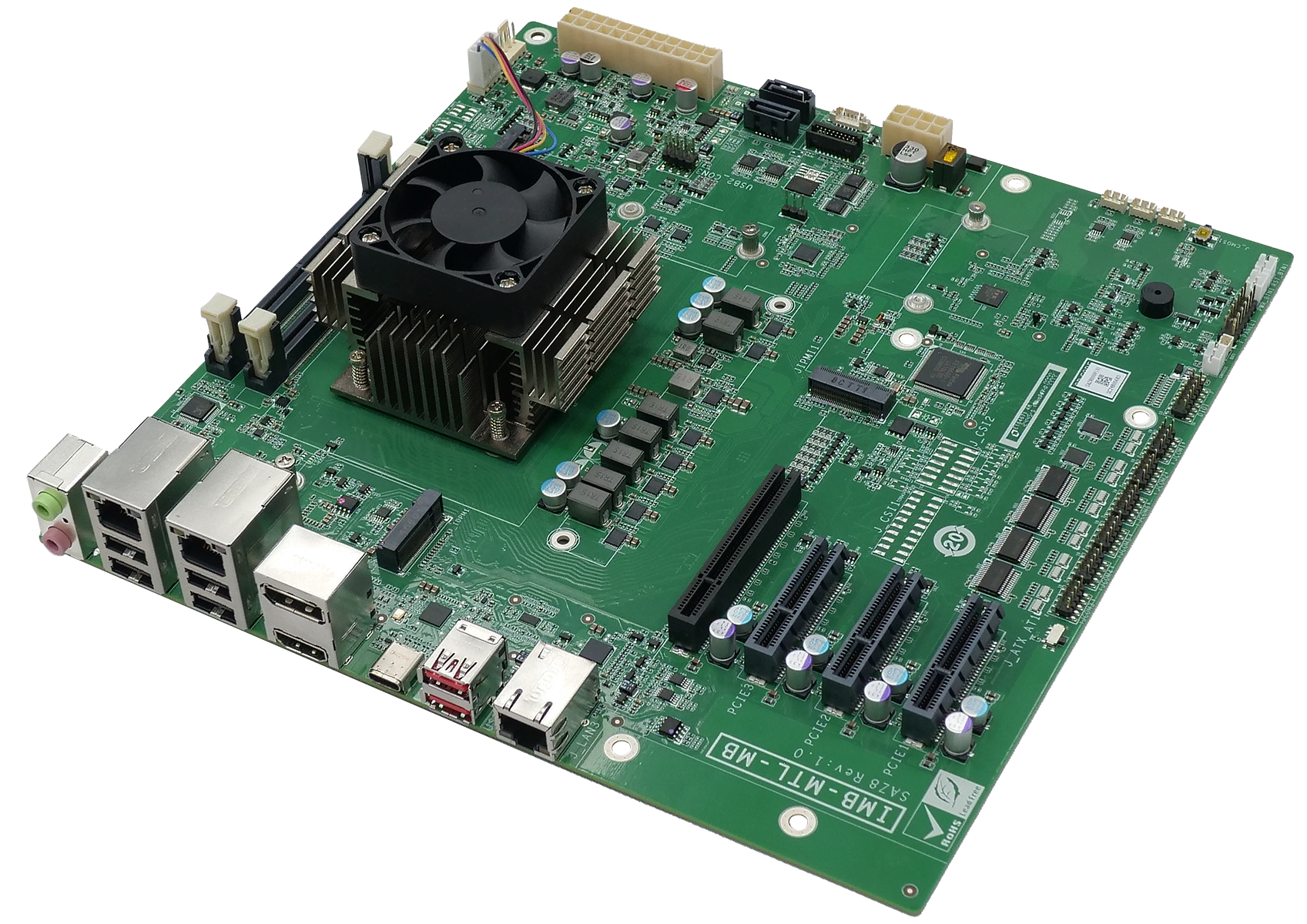

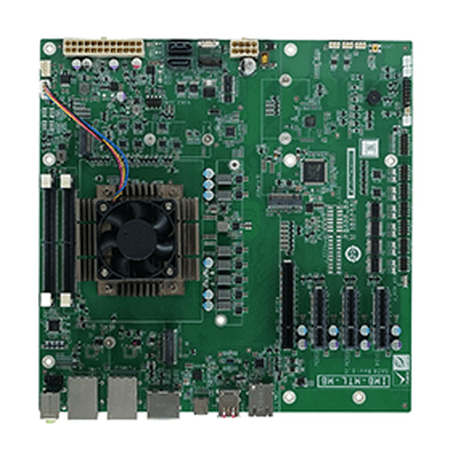

IMB-MTL

micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

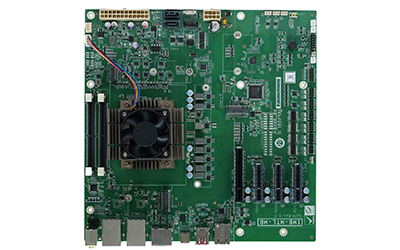

IMB-MTL

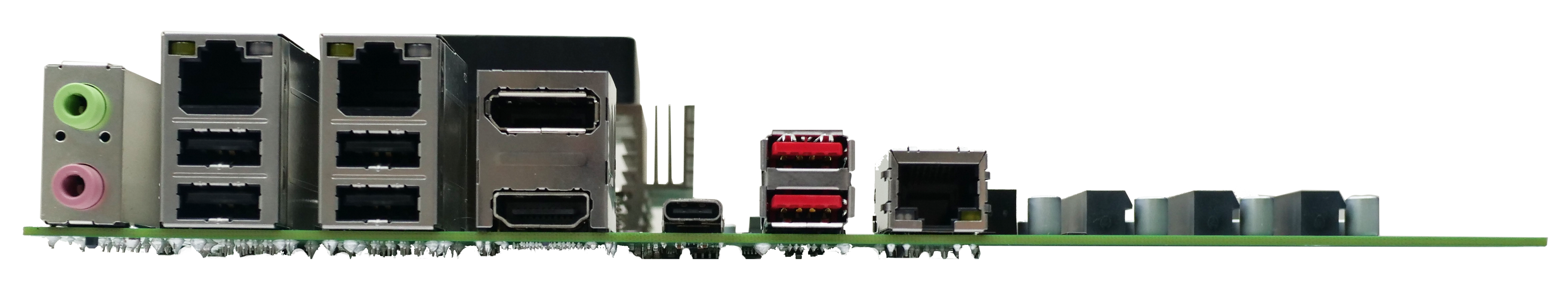

IMB-MTL-IO

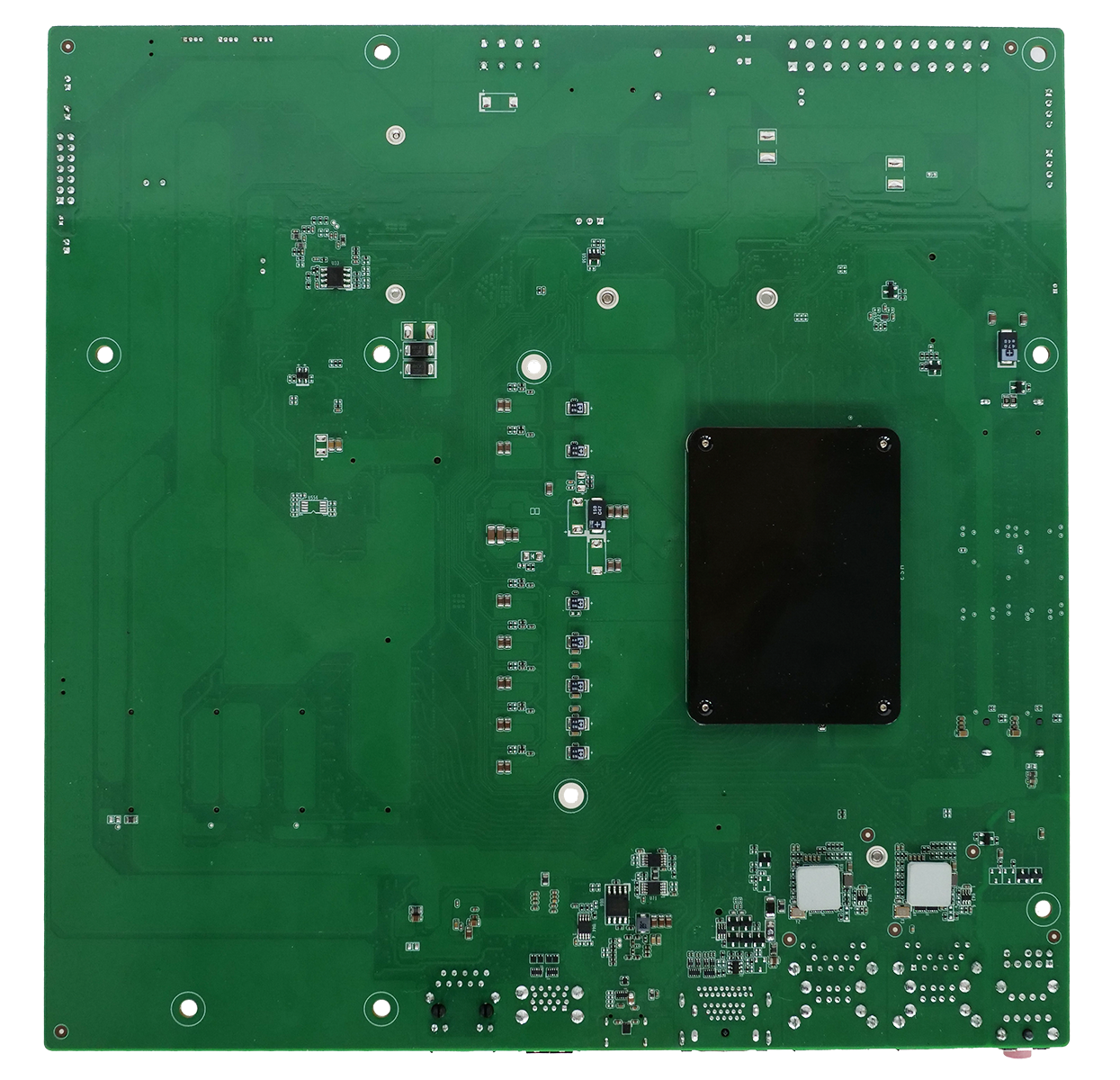

IMB-MTL-back
IMB-MTL-right
  • IMB-MTL
  • IMB-MTL-IO
  • IMB-MTL-back
  • IMB-MTL-right
» 14th Gen. Intel® mobile Meteor Lake-H on-board processor
» Support two 262-pin 5600 MHz DDR5 SO-DIMM, system up to 96GB
» Support dual Intel® 2.5GbE controller
» Support PCIe Gen5 x8, PCIe Gen4 x4, M.2 M key and M.2 B key expansion

Specifications

Hardware Spec.

Form Factor
Form Factor Micro-ATX
System
CPU 14th Gen. Intel® mobile Meteor Lake-H on-board processor
Memory Two 262-pin 5600 MHz DDR5 SO-DIMM
Memory Max. 96GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 244mm
Net Weight GW: 1200g / NW: 700g
Power
Power Consumption TBD
Power Supply ATX
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing

Ordering Information

IMB-MTL-U7E-R10 Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 155H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-MTL-U7A-R10 micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-MTL-U5E-R10 Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 125H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-MTL-U5A-R10 micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x IMB-MTL single board computer

  • 1 x I/O Shielding

  • 2 x SATA cable

  • 1 x QIG
