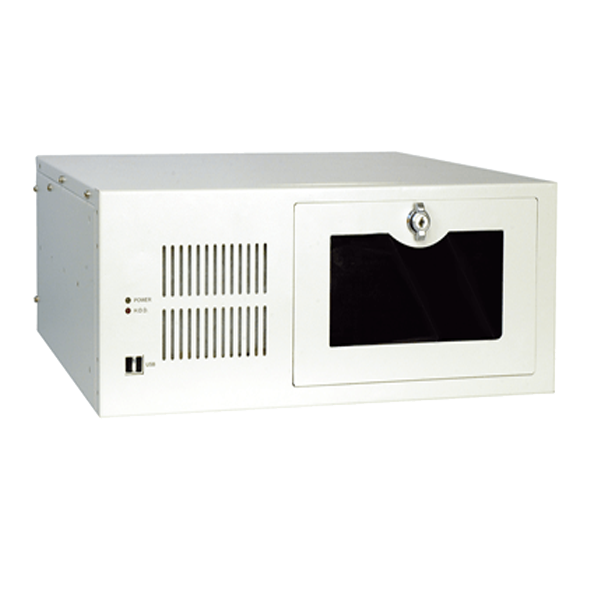

RACK-360
» Cost-effective, RoHS compatible design
» Flexible drive combinations
» Two USB ports on the front panel
» 12 cm cooling fan with replaceable fan filter
» Lockable door prevents unauthorized access
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size, slot CPU card |
| I/O Interface | |
| I/O Openings | 2 x COM, 2 x LPT |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots |
14 slots for RACK-360G 7 slots for RACK-360GATX |
| System | |
| Cooling method / System Fan | 1 x 12 cm |
| Drive Bays |
Shock-resistant disk drive bay design 3 x 5.25” + 1 x 3.5/2.5” HDD or 2 x 5.25” + 2 x 3.5/2.5” HDD (1 x front accessible) |
| Indicator&Buttons | |
| Buttons | Power switch, reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | B: Black/W: White |
| Dimensions | |
| Dimensions | 435.5 mm x 431mm x 176 mm |
| Weight | |
| Weight | 11 kg/15.4 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| RACK-360GWPX-R30 | 4U 14-Slot Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,W/O PSU, With Grounding stud,HDD shockproof,RoHS |
|---|---|
| RACK-360GWATX-R30/300W | 4U ATX Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,With 300W PSU and Grounding stud,HDD shockproof,RoHS |
| RACK-360GWATX-R30 | 4U ATX Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,W/O PSU, With Grounding stud,HDD shockproof,RoHS |
| RACK-360GBPX-R30 | 4U 14-Slot Rackmount Chassis, 2xUSB2.0, Black, ATX Power Switch, W/O PSU, With Grounding stud, HDD shockproof, RoHS |
| RACK-360GBATX-R30/300W | 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,With 300W PSU and Grounding stud,HDD shockproof,RoHS |
| RACK-360GBATX-R30 | 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,W/O PSU, With Grounding stud,HDD shockproof,RoHS |
| RACK-360EWPX-R30 | 4U 14-Slot Rackmount Chassis, 2xUSB2.0, White, ATX Power Switch, W/O internal baking varnish and PSU, With Grounding stud, HDD shockproof, RoHS |
| RACK-360EWATX-R30/300W | 4U ATX Rackmount Chassis,2xUSB2.0,White,ATX Power Switch,W/O internal baking varnish,With 300W PSU and Grounding stud,HDD shockproof,RoHS |
| RACK-360EWATX-R30 | 4U ATX Rackmount Chassis, 2xUSB2.0, White, ATX Power Switch, W/O internal baking varnish and PSU, With Grounding stud, HDD shockproof, RoHS |
| RACK-360EBPX-R30 | 4U 14-Slot Rackmount Chassis, 2xUSB2.0, Black, ATX Power Switch, W/O internal baking varnish and PSU, With Grounding stud, HDD shockproof, RoHS |
| RACK-360EBATX-R30/300W | 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,W/O internal baking varnish,With 300W PSU and Grounding stud,HDD shockproof,RoHS |
| RACK-360EBATX-R30 | 4U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,W/O internal baking varnish and PSU, With Grounding stud,HDD shockproof,RoHS |
