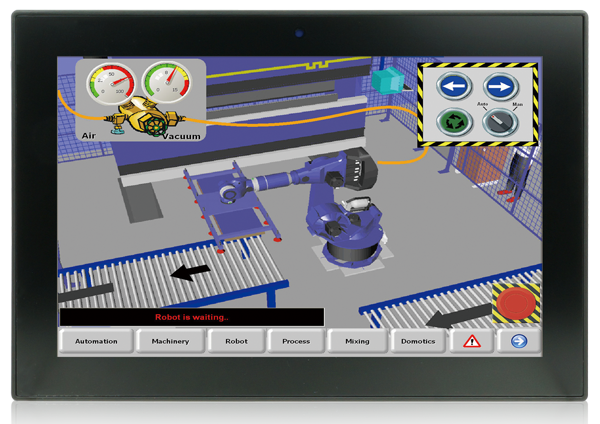

AFL3-W10A-BT

Intel® Celeron® J1900 (Quad Core, 2.0 GHz)

» W10” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Specifications

Hardware Spec.

Color
Color Black C
Communication
Wireless IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions 262 x 181 x 42 (LxWxH) (mm)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 64 compliant front panel
Operating Temperature -10°C~50°C
Safety & EMC CE / FCC
Storage Temperature -20°C~60°C
I/O Interface
Audio AMP 2W + 2W (internal speaker)
Audio Codec ALC892
Ethernet 2 x PCIe GbE by RTL8111E controller
I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
1 x Reset button
1 x AT/ATX switch
1 x 9-30V DC lockable power jack
LCD
Backlight MTBF 15000 hrs
Brightness (cd/m2) 350
Contrast Ratio 800:1
LCD Color 16.2M
Pixel Pitch (mm) 0.1695 (H)×0.1695 (V)
Resolution 1280 x 800 (16:10)
Size 10.1”
Viewing Angle (H-V) 170º / 170º
Other Features
Audio AMP 2W + 2W (internal speaker)
Camera 2-megapixel with low light function
Microphone digital microphone
OSD Function Software OSD
System Cooling Fanless
Physical Characteristics
Color Black C
Construction Front Panel PC + ABS Plastic
Cutout Dimensions 236 x 150 (W x H) (mm)
Dimensions (LxWxH) (mm) 262 x 181 x 42
Mounting Panel, Wall, Stand, Arm
VESA 75mm x 75mm
Net Weight 1.06 kgs
Power
Power consumption 12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement 9 V ~ 30 V
Storage
Storage mSATA
System
Cooling method / System Fan Fanless
CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
Memory Max. 8GB
On-board Memory One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed
Storage mSATA
Touch
Touch Controller EETI EXC7200
Touch Screen Projected capacitive type
Weight
Weight 1.06/2.58 (Net/Gross, kgs)

Ordering Information

AFL3-W10A-BT-J1/PC/2G-R14 10.1” 350cd/m² 1280x800 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11 a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R14

Package Contents

Package Content

  • 2 x Round head machine screw

  • 4 x Pan head machine screw

  • 2 x Fix holder

  • 1 x Power cord

  • 1 x Power adapter

  • 1 x RJ-45 to DB-9 COM port transfer cable

  • 1 x Touch pen
