- Sistema embedded >
- Chassis industriale
- ...

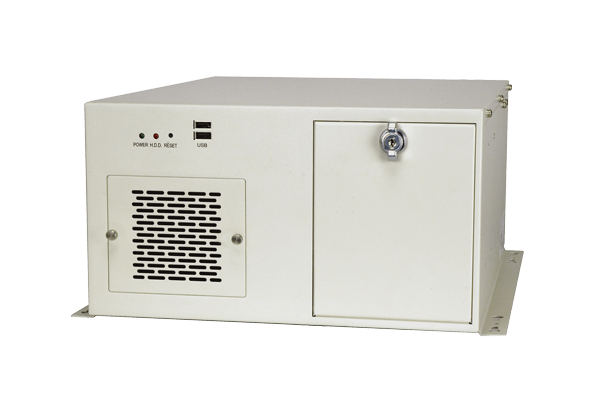

PAC-125G
» RoHS compliant design
» Two USB ports on the front panel
» One 8 cm hot swappable cooling fan with fan filter
» 2 x 5.25”, 1 x 3.5” HDD, 1 x front-accessible 3.5” drive bays
» Lockable door prevents unauthorized access
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size, slot CPU card |
| I/O Interface | |
| I/O Openings | 1 x LPT, 1 x COM |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 10 slots |
| System | |
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays |
2 x 5.25” 1 x Front accessible 3.5” 1 x 3.5” HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | W: White |
| Dimensions | |
| Dimensions | 420 mm x 321 mm x 176 mm(DxWxH) |
| Weight | |
| Weight | 7.2 kg/10.4 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| PAC-125GWPX-R30/300W | 10-Slot Full-size Chassis,White,Powder paint,1x 8cm fan,with 300W ATX PSU,RoHS |
|---|---|
| PAC-125GW-R30 | 10-Slot Full size Chassis,White,Powder paint,AT Power Switch,W/O PSU,RoHS |
