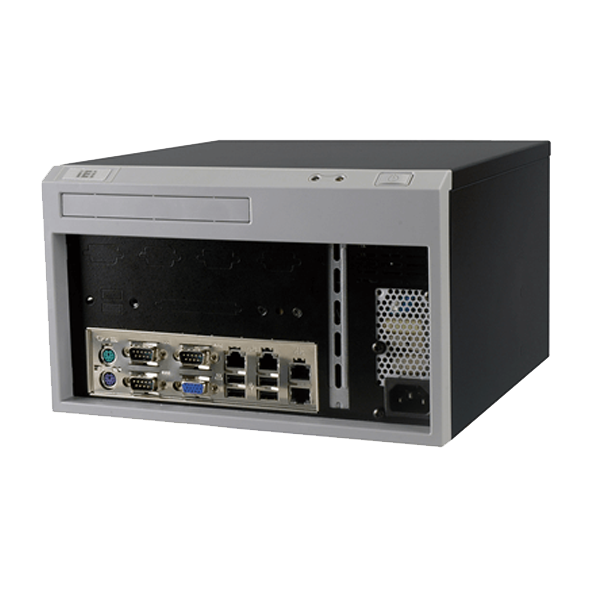

EBC-3100
» Designed for high performance applications, bundled with 270W high efficiency ATX power supply
» Front accessible I/O design
» Supports one expansion slot
» One 3.5” hard drive, one slim type optical drive capacity
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
Refer to KINO Series SBC Size: Mini-ITX (170mm x 170mm) |
| Expansion Slots | |
| Expansion Slots | 1 x Full-height expansion slot |
| System | |
| Cooling method / System Fan | 80 x 80 x 25 |
| Drive Bays |
1 x 3.5” SATA HDD space 1 x 5.25” slim type |
| Physical Characteristics | |
| Construction |
Heavy duty metal with plastic front panel Desktop, wall mount |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 260 x 250 x 156 |
| Weight | |
| Weight | 2.5 kg/3.9 kg |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
Ordering Information
| EBC-3100-R20/300W | Mini-ITX embedded chassis,one 3.5" hard drive bay,with 300W ATX PSU,Black,Powder paint,RoHS |
|---|---|
| EBC-3100-R20/180W | Mini-ITX embedded chassis,one 3.5" hard drive bay,with 180W ATX PSU,Black,Powder paint,RoHS |
| EBC-3100-R20 | Mini-ITX embedded chassis,one 3.5" hard drive bay and one slim ODD,W/O PSU,Black,Powder paint,RoHS |
Package Contents
| Package Content |
|
|---|
