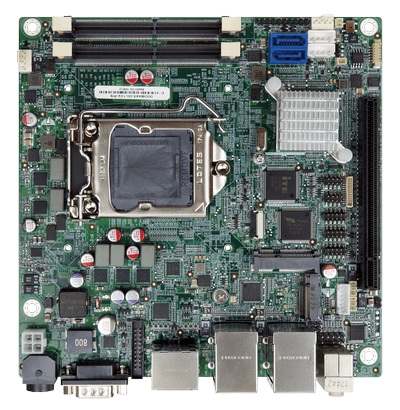

KINO-DH110
» LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pemtium® processor
» Dual-channel DDR4 2133MHz
» Support HDMI™, DP++
» Support M.2 B key, PCIe mini
» Support USB 3.0 and SATA 6Gb/s
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | |
|---|---|
| CPU | LGA1151 socket supports 6th/7th generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processor |
| Chipset | Intel® H110 |
| Memory | Two 260-pin 2133MHz dual-channel DDR4 SDRAM unbuffered SO-DIMM |
| Memory Max. | 32GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170 X 170 |
| Net Weight | 400g |
| Storage | |
| Storage | 2 x SATA :6Gb/s |
| I/O Interface | |
| Display Output | 1 x HDMI™ :up to 4096x2160@30Hz |
| 1 x Display Port :DP++(up to 4096x2160@60Hz) | |
| 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 4096x2160@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I219LM PCIe controller LAN2: Intel® I211 PCIe controller |
| Audio | Description: Realtek ALC662 HD codec supports 5.1-channel |
| 1 x Line out :on rear IO | |
| 1 x Mic :on rear IO | |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 1 x External RS-232/422/485 |
| 2 x Internal RS-232 :2x5 pin, p=2.0 | |
| 4 x External USB 3.2 Gen1x1 | |
| 4 x Internal USB 2.0 :2x4 pin, P=2.0 | |
| 1 x PS/2 :1x6 pin | |
| Expansion | 1 x PCIe x16 |
| 1 x PCIe mini Card Slot :Full-size slot(PCIe & USB) | |
| 1 x M.2(NGFF) :B key(SATA) | |
| Power | |
| Power Consumption | 12V@12.16A (3.4GHz Intel® Core i7-6700 with two 2133MHz 16GB DDR4 memory) |
| Power Supply |
9V ~ 28V DC input 1 x External DC jack (4-pin DIN) 1 x Internal power connector (2x2 pin) Support ATX/AT mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| KINO-DH110-R10 | Mini-ITX Motherboard supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
