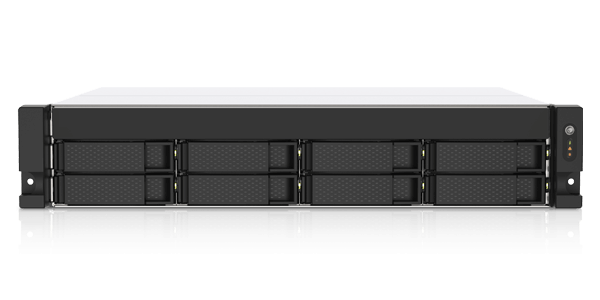

GRAND-RE
» AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
» 2 x DIMM Slots, up to 32 GB memory (2 x 16GB)
» Support one PCIe Gen3 x8 slot
» Storage expandable via USB port or HBA expansion card
Overview
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the GRAND-RE is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The GRAND-RE includes two 2.5GbE ports and a PCIe Gen 3 slot, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The GRAND-RE also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the GRAND-RE the preeminent choice to tackle resource-demanding applications and tasks.
Upgrade to 2.5GbE Networking
The GRAND-RE comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed network.
Extend Functionality with the PCIe Card
The GRAND-GL has a PCIe expansion slot, providing flexibility in extending storage server functionality and potential applications. Install a QNAP QM2 card to provide M.2 SSD caching/10GbE connectivity, or use the GRAND-GL as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the GRAND-GL by installing a USB 3.2 Gen2 10Gbpscard.
>> More about Network PCIe Cards
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 2U, Rackmount |
| System | |
| CPU | AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor |
| Memory Max. | 2 x Long-DIMM DDR4 |
| Cooling method / System Fan | 2 x 80 mm, 12V DC |
| Physical Characteristics | |
| Rack Height | 2U, 8Bay |
| Dimensions (LxWxH) (mm) | 89 x 482 x 425 mm |
| Net Weight | 9.15 kg |
| Storage | |
| Storage | 8 x 3.5” HDD Bay |
| 8 x SATA | |
| I/O Interface | |
| Ethernet | 2 x LAN |
| I/O Interface | 1 x External USB 3.2 Gen1x1 |
| 3 x External USB 3.2 Gen2x1 | |
| Expansion | 1 x PCIe x8 |
| Environment | |
| Operating Temperature | 0~40˚C |
| Humidity | 5 to 95% non-condensing, wet bulb：27˚C. |
Ordering Information
| GRAND-RE-08B-RP-R10 | 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), AMD Ryzen V1500B, 2x 2.5GbE, 2x 300W PSU |
|---|---|
| GRAND-RE-08B-R10 | 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), AMD Ryzen V1500B, 2x 2.5GbE, 250W PSU |
Package Contents
| Package Content |
|
|---|
