Mustang-QA100
• 1 x intel Lewisburg chipset C627
• Asymmetric and Symmetric encryption and authentication
• Digital signatures
• RSA, DH, and ECC
• Lossless data compression
Boost Encryption and Compression Performance
in Network
with Intel® QAT Accelerator

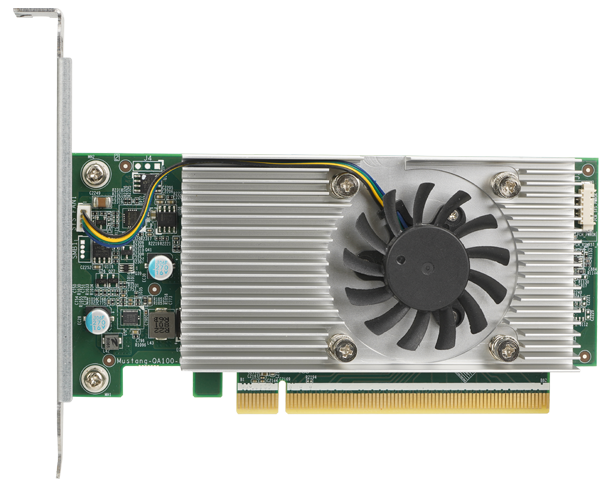

IEI new network accelerator card – Mustang-QA100-C627, is featured with the latest Intel® Lewisburg chipset C627 and one Intel® QAT engine to offer high-speed throughput of 100Gbps. It is designed with the standard PCIe 3.0 x16 interface and has extremely compact size for density platforms. Intel® QuickAssist Technology can maximize CPU utilization and achieve well improvements in simultaneous crypto and compression performance. Moreover, Mustang-QA100-C627 comes with a cooling fan to offer optimal heat dissipation capability to withstand harsh environment or fanless operation. It is an ideal selection for network, big data and cloud applications.
Intel® QuickAssist Technology
IEI Mustang-QAT-C627 is compliant with Intel® QuickAssist Technology to integrate hardware acceleration of compute intensive workloads. It can maximize CPU utilization and achieve well improvements, which includes symmetric encryption and authentication, asymmetric encryption, digital signatures, RSA, DH, ECC, and lossless data compression.
CPU Usage
* Chart Reference: Click here to download
Application
Cloud Computing
SSL/TLS Network Solution
Data Center
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Low-Profile PCIe card |
| System | |
| Chipset | Intel® C627 |
| Cooling method / System Fan | Active Fan |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 165.50 (L) x 77.8 (W) x 44.2 (H) |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Humidity | 5% ~ 90% RH, Non-condensing |
| Certifications | |
| Safety & EMC | RoHS |
| Card Slot Interface | |
| PCIe | 1 x PCIe Gen3 x16 |
| Card Features | |
| Speed |
•Throughput SSL/IPSec: 100Gbps Compression Deflate: 100Gbps Decompression Deflate: 100Gbps RSA Decrypt 1k-bit: 550K Ops/sec RSA Decrypt 2k-bit: 100 Ops/Sec |
Ordering Information
| Mustang-QA100-C627-R10 (Order by MOQ) |
Intel QAT accelerator for Crypto and Compression with lewisburg chipset, PCIe gen3 x16, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
