- Embedded System rugged
- ...

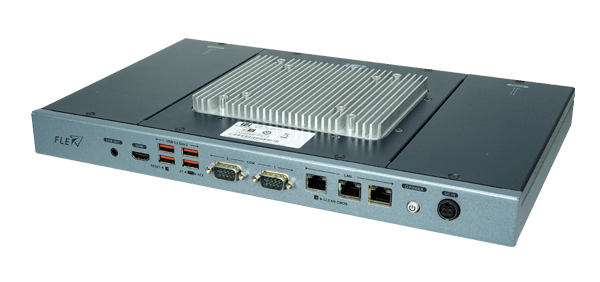

FLEX-BX100-ULT5
» 8th Gen Intel® Whiskey Lake-U processors
» Low power consumption and fanless design
» Support IEEE 802.3 bt PoE PD (By optional PoE BT module: GPOE-PD-BT01)
» Support NVMe SSD and USB 3.2 GEN2 (10Gbps)
8th Gen Quad-core High-speed Processing and Transmission
IEI's FLEX-BX100 industrial box PC features an 8th Gen Intel® Core™ i5- 8365UE processor with blazing-fast performance, four USB 3.2 Gen 2 ports and ultra-thin design, which can meet the demand of high-speed data processing and transmission, and can also suit into various environment with no space limit.
IEEE 802.3 bt Standard PoE PD box PC
The FLEX-BX-100 can be optionally equipped with an IEEE802.3af/at/bt-compliant GPOE-PD-BT01-R10 card for connecting to an IEEE802.3bt switch to operate as a PoE Powered Device (PD).
IEEE802.3at Load-sharing
Customers who are unable to upgrade their PoE Switch [PSE] to IEEE802.3bt standard can upgrade the FLEX-BX-100 box PC by simply installing IEI's GPOE-PD-AT01 module, and power the device with two IEEE802.3at standard PSE ports.
Silent Fanless System & Fanless Design
Application
Triple GbE ports, creating a networked industrial control system environment
Suitable for Semi-outdoor Environment
Wide Temperature (-20°C ~60°C)
Easy-access HDD and PoE PD module
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
1 x HDMI™ 2 x PoE GbE LAN* (RJ-45) 1 x GbE LAN (RJ-45) 1 x RS-232/422/485 (DB-9, COM1) 1 x RS-232 (DB-9, COM2) 4 x USB 3.2 Gen 2 (10Gb/s) Type-A 1 x Line-out |
| Expansion Slots | |
| Expansion Slots |
M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT) M.2 2280 M-Key(PCIe x4; support NVMe SSD) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 2.5” HDD/SSD SATA 3(6.0Gb/s) bay |
| Indicator&Buttons | |
| Buttons |
1 x Power button with LED indicator 1 x Reset button 1 x AT/ATX mode switch 1 x Clear CMOS button |
| Color | |
| Color | PANTONE 296 C |
| Dimensions | |
| Dimensions | 356.5x 222 x 44(mm) |
| Weight | |
| Weight | 2.8/5.5kg |
| Environment | |
| Operating Temperature | -10°C ~ 60°C (with air flow) |
| Humidity | 10% ~ 95% (non-condensing) |
| Reliability |
Shock - 10G acceleration part to part (11ms) Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak |
| Safety/EMC | CE/FCC |
Ordering Information
| FLEX-BX100-ULT5-C/4G-R10 | Fanless embedded system with IntelR 14nm 8th Whiskey Lake CeleronR 4305UE (2M Cache, 2.0 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, R10 |
|---|
Package Contents
| Package Content |
|
|---|
