KINO-KX
• Mini-ITX SBC supports Zhaoxin 16nm KX-U6580/KX-U6780A(70W) on-board processor supports dual-channel DDR4 SO-DIMMs
• Dual independent display(VGA & DVI-I) support
• Up to 10 x RS-232 and 10 x USB 2.0 support
• 4 x USB 3.2 Gen1 x 1 (5Gb/s), SATA 6Gb/s, Full-size PCIe Mini Card slot and PCIe x16 expansion slot
• ATX power input

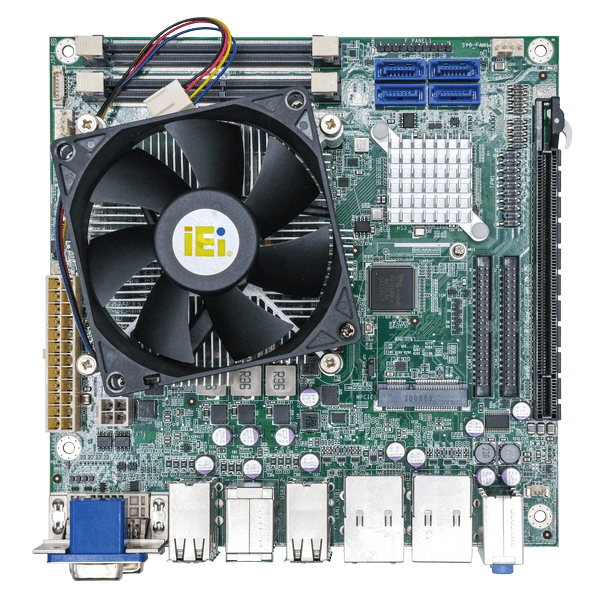

KINO-KX Rich I/O Mini-ITX Industrial Motherboard Introduction
Zhaoxin 16nm KX-6000 Series On-Board CPU
Zhaoxin, a China-based semiconductor company launched their new 16nm processor KX-6000 series. The SoC features eight cores running at 3 GHz and increases performance over its predecessor by at least 50%. KX-6000 Series will focus on 8 different applications including finance, railway, energy, network security, MES, education, military and telecom operations.
Rich I/O with Flexible Design
KINO-KX include 14 x USB, 10 x RS-232, PCIe x 16 expansion slot and dual independent display (VGA & DVI-I) support. This isdesign for rugged solution and easy expansion capabilities for industrial applications.
Powerful Security Function
- IEI TPM Expansion -
Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
Application Field
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX |
| System | |
| CPU |
Zhaoxin Kaixian KX-6000 series 8-core processor Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W) Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W) |
| Chipset | Zhaoxin ZX-200 |
| Memory | 2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB) |
| Memory Max. | Up to 64GB |
| Cooling method / System Fan |
1 x CPU smart fan connector (1x4 pin) 1 x System smart fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170 mm x 170 mm |
| Net Weight | GW:900g / NW:400g |
| Storage | |
| Storage | 4 x SATA |
| I/O Interface | |
| Display Output | 1 x DVI-I(up to 1920x1080@60Hz) |
| 1 x VGA(up to 1920x1080@60Hz) | |
| Ethernet |
2 x LAN: Detail - LAN1: Realtek RTL8111H PCIe GbE controller LAN2: Realtek RTL8111H PCIe GbE controller |
| Audio | HD Audio: Realtek ALC888S |
| 1 x Line in | |
| 1 x Line out | |
| 1 x Mic | |
| I/O Interface | 10 x External USB 2.0 |
| 4 x External USB 3.2 Gen1x1 | |
| 10 x Internal RS-232: 2 x RS-232 (2x5 pin, P=2.0), 8 x RS-232 (2x20 pin, P=2.0) | |
| 1 x PS/2: 1 x KB/MS(External) | |
| Expansion | 1 x PCIe mini Card Slot: Full-size PCIe Mini card slot |
| 1 x PCIe x16(with PCIe x8 Gen 3.0 signal) | |
| Other Features | |
| TPM | 1 x TPM 2.0 connector (2x10 pin) |
| Power | |
| Power Consumption |
12V @ 3.38A, 3.3V @ 0.62A, 5V @ 9.81A, 5VSB @ 0.03A (Zhaoxin KX-U6580 2.5 GHz CPU with 8 GB 2400 MHz DDR4 memory) |
| Power Supply |
ATX power supply ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 20% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| KINO-KX-U6580-R10 | Mini-ITX SBC supports Zhaoxin 16nm KX-U6580 (70W) on-board processor with PCIe Mini, VGA, DVI, Dual GbE LAN, USB 3.2 Gen1, SATA 6Gb/s, COM, Audio and RoHS |
|---|
