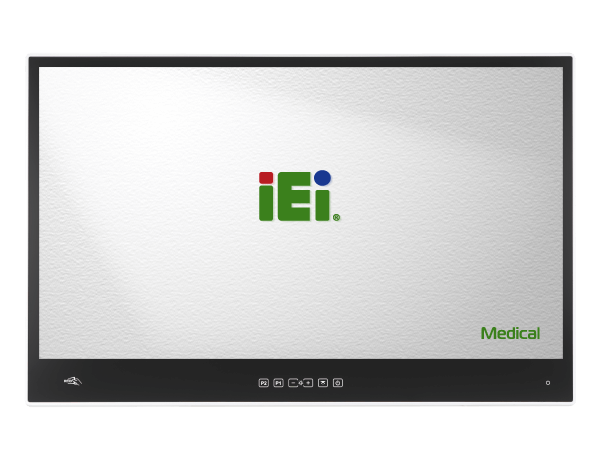

POCi-W24C-ULT5
» 14nm 8th generation Intel® Whiskey Lake U platform
» Aluminum front bezel (IP66) & PC/ABS rear cover
» Chemical etching AG coating
» Modular PCIe x4 expansion slot
» Dual reading light
» FHD IPS panel with optional DICOM preset module
Modular Expansion Design
The highly expandable PCIe x4 slot makes the whole system more flexible and easily meet the individual needs from different applications. For instance, adopting an AI accelerator card to enhance computing power, adding an all-in-one capture card to connect with medical devices, integrating PoE injector card with webcam, or expanding the desired I/O card for multiple usage.
IEI Developed DICOM Module Preset
Perfect Fit in Various Medical Fields
Hardware Spec.
| Form factor | |
|---|---|
| Form factor |
|
| Display | |
| LCD Size | 23.8＂ (16:9) |
| Brightness(cd/m2) | 350 |
| Max Resolution | 1920 (W) X 1080 (H) |
| Contrast Ratio | 1000:1 |
| Backlight MTBF(hrs) | 30,000 (LED backlight) |
| System | |
| Cooling method / System Fan | fanless |
| CPU |
Intel® Core™ i7-8665UE (Whiskey Lake ULT platform) Intel® Core™ i5-8365UE (Whiskey Lake ULT platform) |
| HDD | 1 X 2.5” accessible SATA HDD/SSD bay |
| SSD | 1X M.2 2242/60/80 M key (PCIe x4) |
| Communication | |
| Bluetooth | Bluetooth V5.0 (M.2 2230) |
| Wi-Fi | IEEE 802.11 ax 2T2R module (Wi-Fi 6 Module) |
| I/O Interface | |
| Ethernet |
1 X Isolated Gigabit LAN (I219 supports Intel® vPro) 1 X Isolated Gigabit LAN (I211) |
| Audio | 1 X Combo audio-out / mic-in |
| Expansion |
1 X PCIe x4 3S3P Li-ion battery pack, 11.1V, 7800mAh (Optional) 150W, 85 ~264VAC, medical power supply (Optional) |
| USB |
4 X USB 3.2 Gen 2 port 2 X USB 2.0 port (side) |
| RAM | DDR4 SO-DIMM up to 64GB |
| Power | |
| Input | 19V DC input |
| Power adapter | 150W medical power adapter |
| Power Supply | 150W, 85 ~264VAC, medical power supply (Optional) |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Operating Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Safety & EMC |
CE, FCC Class B Part18 EN 60601-1:2006/A1:2013 (Edition 3.1) EN 60601-1-2: 2015 (Edition 4.0) |
| Humidity | 10% ~ 95% (non-condensing) |
| Storage Temperature | -20°C ~ 60°C |
| IP Level | Front: IP66 |
| Physical Characteristics | |
| Color | White |
| Mounting | Wall, Stand and Arm VESA 75/100 |
| Dimensions (LxWxH) (mm) | 507.5 X 335.5 X 64.5 |
| Net Weight | 8.1 kg |
| Construction |
Front bezel: Aluminum die-casting Rear cover: ABS+PC plastic with anti-bacterial material |
| Touch | |
| Touch Screen |
Projected capacitive type with 10-point multi-touch Chemical etching AG |
| Touch Controller | EETI (80H84) |
| Other Features | |
| Audio | 2 X 3W speaker |
| TPM | TPM-IN03-R10 (Optional) |
| OSD Function | |
| OSD Function |
1 x Power on/off 1 x Reading light on/off 1 x Backlight brightness up 1 x Backlight brightness down 1 x Clean mode on/off 1 x DICOM mode app on/off (optional) |
| I/O Interface | |
| I/O Interface | AT/ATX switch |
| Audio | |
| DC Input Jack | |
| HDMI™ | |
| LAN | |
| Line in | |
| Mic | |
| Power In | |
| Power Switch | |
| Reset Button | |
| RS-232 | |
| Speaker | |
| Touchscreen | |
| USB 2.0 | |
| USB 3.2 Gen1x1 | |
| WIFI | |
Ordering Information
| POCi-W24C-ULT5-i7/PC/4G-R10 * By order production |
23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10 |
|---|---|
| POCi-W24C-ULT5-i7/PC/4G-BP-R10 * By order production |
23.8” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10 |
| POCi-W24C-ULT5-i7/PC/4G-B-R10 * By order production |
23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10 |
| POCi-W24C-ULT5-i5/PC/4G-R10 | 23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10 |
| POCi-W24C-ULT5-i5/PC/4G-BP-R10 * By order production |
23.8” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10 |
| POCi-W24C-ULT5-i5/PC/4G-B-R10 * By order production |
23.8” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10 |
Package Contents
| Package Content |
|
|---|
