IMBA-Q471

ATX Motherboard Supports 10 th / 11 th Gen. LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® Processors, DDR4, Triple Independent Displays, Triple 2.5GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

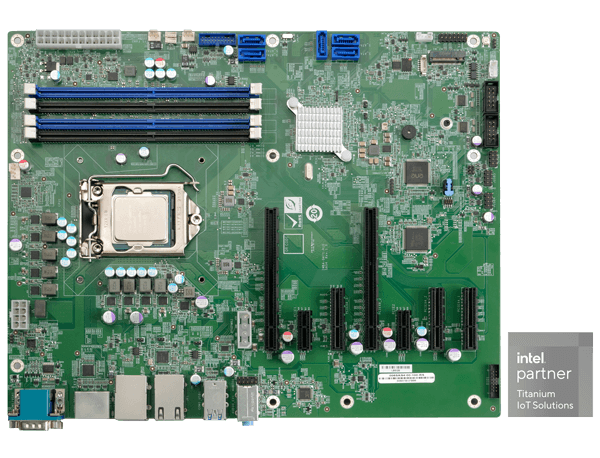

IMBA-Q471 ATX Industrial Motherboard
IMBA-Q471 ATX Industrial Motherboard
IMBA-Q471 ATX Industrial Motherboard
  • IMBA-Q471 ATX Industrial Motherboard
  • IMBA-Q471 ATX Industrial Motherboard
  • IMBA-Q471 ATX Industrial Motherboard
1. support HDMI™, DP, VGA triple independent display output
2. support triple Intel® i225V 2.5GbE controller
3. support 2 x PCIe x16, 3 x PCIe x4, 2 x PCIe x1 and 1 x M.2 M key expansion slots
4. support 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 8 x USB 2.0, transfer rate up to 10Gb/s
5. support 3 x RS-232, 1 x RS-232/422/485, 5 x SATA 6Gb/s connector

^

Scroll to Features

Enhanced CPU and Graphics Performance
Enhanced CPU and Graphics Performance
Leading Connectivity
Leading Connectivity
Multiple Expansions
Multiple Expansions
Data Protection
Data Protection
Intel® Q470/Q470E Chipset

Intel® Q470/Q470E Chipset

10th/11th Gen Intel® CoreTM Processors

10th/11th Gen Intel® CoreTM Processors

Windwos 11

Ready

TPM 2.0

Firmware TPM 2.0

Built for High-performance Edge AI

  • RS-232
  • VGA
  • DP
  • HDMI™
  • 2 x USB 2.0 ports
  • 3 x Intel® I225V
    2.5 Gb Ethernet
  • 2 x USB 3.2 Gen 2 ports
  • 2 x USB 3.2 Gen 1 ports
  • Audio jack
  • PCIe power
  • 2 x PCIe Gen3 x16 slots
    (x8 signal)
    3 x PCIe Gen3 x4 open-end slots
    2 x PCIe Gen3 x1 slots
  • 12-bit GPIO
  • CPU power
  • 4 x 288-pin 2933MHz dual-channel unbuffered DDR4 SDRAM DIMMs
  • LGA1200 socket for 10th/11th Gen Intel® Core™, Pentium® and Celeron® processors
  • USB 3.2 Gen 1
  • 5 x SATA 6Gbps ports (RAID 0/1/5/10)
  • M.2 2242/2280 M key slot (PCIe 3.0 x2 & SATA signal) for NVMe PCIe x2 SSD or SATA SSD
  • Front panel
  • 2 x RS-232
  • RS-422/485
  • 6 x USB 2.0 headers
  • 1
    CPU power
  • 2
    LGA1200 socket for 10th/11th Gen Intel® Core™, Pentium® and Celeron® processors
  • 3
    4 x 288-pin 2933MHz dual-channel unbuffered DDR4 SDRAM DIMMs
  • 4
    USB 3.2 Gen 1
  • 5
    5 x SATA 6Gbps ports (RAID 0/1/5/10)
  • 6
    Front panel
  • 7
    M.2 2242/2280 M key slot (PCIe 3.0 x2 & SATA signal) for NVMe PCIe x2 SSD or SATA SSD
  • 8
    RS-422/485
  • 9
    2 x RS-232
  • 10
    6 x USB 2.0 headers
  • 11
    PCIe power
  • 12
    2 x PCIe Gen3 x16 slots (x8 signal)
    3 x PCIe Gen3 x4 open-end slots
    2 x PCIe Gen3 x1 slots
  • 13
    12-bit GPIO
Solder Side
  • 14
    RS-232
  • 15
    VGA
  • 16
    DP
  • 17
    HDMI™
  • 18
    3 x Intel® I225V 2.5 Gb Ethernet
  • 19
    2 x USB 2.0 ports
  • 20
    2 x USB 3.2 Gen 1 ports
  • 21
    2 x USB 3.2 Gen 2 ports
  • 22
    Audio jack

Enhanced CPU and Graphics Performance

10th Gen/11th Gen Intel® Core Processors
®

10th Gen/11th Gen Intel® Core Processors

IEI's IMBA-Q471 motherboard supports both 10th and 11th Gen Intel® Core processors, and the performance boosts up to 80% better than the 9th Gen i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.

Because of the above features, the IMBA-Q471 is suitable for edge computing, industrial automation, medical equipment, machine vision, automated test equipment and much more.

Enhanced CPU and Graphics Performance

Up to 10 cores

Up to 20 threads

in LGA1200 socket

10th Gen Intel® Embedded CPU Support List

Sockets Brand Process Cores/Threads CPU Processor Base Frequency Cache TDP Processor Graphics Graphics Base Frequency Memory Types Chipset
FCLGA1200 CoreTM i9 14nm Comet Lake-S 10/20 I9-10900E 2.8 GHz 20MB 65W Intel® UHD Graphics 630 350 MHz DDR4-2933 Q470/Q470E
10/20 I9-10900TE 1.8 GHz 20MB 35W DDR4-2933
CoreTM i7 8/16 I7-10700E 2.9 GHz 16MB 65W DDR4-2933
8/16 I7-10700TE 2.0 GHz 16MB 35W DDR4-2933
CoreTM i5 6/12 I5-10500E 3.1 GHz 8MB 65W DDR4-2666
CoreTM i5 6/12 I5-10500TE 2.3 GHz 8MB 35W DDR4-2666
CoreTM i3 4/8 I3-10100E 3.2 GHz 9MB 65W DDR4-2666
CoreTM i3 4/8 I3-10100TE 2.3 GHz 9MB 35W DDR4-2666
Pentium® 2/4 G6400E 3.8 GHz 4MB 58W DDR4-2400
Pentium® 2/4 G6400TE 3.2 GHz 4MB 35W DDR4-2400
Celeron® 2/2 G5900E 3.2 GHz 2MB 58W DDR4-2400
Celeron® 2/2 G5900TE 3.0 GHz 2MB 35W DDR4-2400

Enhanced CPU and Graphics Performance

DisplayPort 1.2

(4096x2304 @60Hz)

HDMI™ 1.4

(4096x2160 @30Hz)

VGA

(1920x1080 @60Hz)

Stunning 4K Resolution and Triple Display

The IMBA-Q471 is equipped with Intel® UHD Graphics to display videos and images in stunning 4K resolutions. Among its three independent display ports (VGA+HDMI™+DP), the HDMI™ and DisplayPort can both support up to 4K high resolution. The enhanced visual quality responses the high precision demand of users.

Leading Connectivity

pic1
pic2
pic3

With triple LAN configuration, the IMBA-Q471 is capable of connecting various devices such as sensors, multiple cameras, or other hardware

Lower CPU Workload

High TCP & UDP Throughput

®

Triple Intel® 2.5G Ethernet

The IMBA-Q471 is equipped with triple Intel 2.5GbE controllers, which are ready for the latest-performance router. With triple 2.5GbE ports owning the benefits of low-latency, high-throughput and cost-effective, the IMBA-Q471 can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.

Leading Connectivity

Pure Speed USB 3.2 10 Gb/s

With twice of the bandwidth compared to its previous generation, and backwards compatible with USB 2.0 and 3.0, the much improved USB 3.2 protocol USB Type-A connector for better compatibility over a wider range of devices.

Multiple Expansion Slots for Increased Functionality
and Flexible Configuration

Mustang-T100-T5
Mustang-V100-MX8

Complete PCIe expansions make high speed transmission possible

There is an array of expansion interfaces on the IMBA-Q471 to meet different demands of each customer. It supports up to seven PCIe slots, which can be used to install a variety of high bandwidth interface cards, including network cards, frame grabber cards, video capture cards, and AI Accelerators.

Multiple Expansion Slots for Increased Functionality
and Flexible Configuration

NVMe SSD Ready for Edge Intelligence

Combining the M.2 M-key interface with 2-lane NVMe PCIe can increase storage read/write speeds by up to 200% compared to a traditional SATA 3.0 SSD. Rapid data speeds enable more reflexive inference analysis at the edge.

Touch-enabled BIOS

Graphical interface

BIOS menus is transformed from text-based to graphical user interface, making it intuitive and easy to navigate.

Shortcut to boot device setup
Shortcut to boot device setup

The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.

Easy-access function keys
Easy-access function keys

The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard

On-screen keyboard
On-screen keyboard

An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.

Touch-enabled BIOS

The BIOS menu in the latest IEI products is re-designed to a touch-enabled user interface to eliminate excessive steps and unnecessary keyboard connection. It allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily.

Data Protection with RAID and Intel® PTT

RAID 0/1/5/10 Protection

The IMBA-Q471 offers five high-speed SATA 6Gb/s interfaces with configurable RAID 0, 1, 5, 10 functionality that can increase system performance or ensure the maintenance of critical information.

RAID 0/1/5/10 Protection
2x Faster
  • RAID 0 (Striping) -The highest performing level
  • RAID 1 (Mirroring) -Data safety
  • RAID 5 (Distributed Parity)-offers both data safety and performance
  • RAID 10 (combining mirroring and striping) data safety and big data volume

Data Protection with RAID and Intel® PTT

TPM 2.0

Intel® PTT Security

IEI BIOS enables Intel firmware-based TPM function, Intel® PTT. TPM can be leveraged to encrypt your storage drive. This protects your data, including your identity and operating system files. Encryption also protects your data in the case of physical theft.

Intelligent System Management

Intelligent System Management

IEI Intelligent System Management Module (iSMM+)

The IEI Intelligent System Management Module (iSMM+) is a system health supervision application which utilizes sensor chips on IEI motherboards to track CPU and system temperatures, fan speed, watchdog timer, digital I/O status and system event.

Learn More

Specifications

Hardware Spec.

System
CPU 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset Intel® Q470/Q470E
Memory Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots, supporting up to 128 GB memory
Memory Max. up to 128 GB memory
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x3 pin)
Storage
Storage 5 x SATA : 6Gb/s (RAID 0/1/5/10 supported)
I/O Interface
Display Output 1 x VGA : up to 1920 x 1080 @ 60 Hz
1 x HDMI™ : up to 4096 x 2304 @ 30 Hz
1 x Display Port : up to 4096 x 2304 @ 60 Hz
Ethernet 3 x LAN -
LAN1: Intel® I225V/I226V 2.5GbE controller
LAN2: Intel® I225V/I226V 2.5GbE controller
LAN3: Intel® I225V/I226V 2.5GbE controller
Audio 1 x Line in (CD/DVD or other audio source input port)
1 x Line out (connect this port to headphone or speaker)
1 x Mic (connect this port to microphone)
1 x Front Audio : 2x5 pin, p=2.54
1 x HD Audio : Realtek ALC888S HD Audio codec supports 7.1-channel
I/O Interface 1 x External RS-232 : DB-9
2 x Internal RS-232 : 2x5 pin, p=2.54
1 x Internal RS-422/485 : 1x4 pin, p=2.0
2 x External USB 2.0 : Type-A
2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A)
6 x Internal USB 2.0 : 2x4 pin, p=2.54
2 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.0
1 x DIO : 12-bit digital I/O (2x7 pin, p=2.0)
2 x External USB 3.2 Gen2x1 : 10Gb/s (Type-A)
Expansion 2 x PCIe x16 (x8 signal)
3 x PCIe x4
2 x PCIe x1
1 x M.2(NGFF) : M-key 2242/2280 (PCIe x2, SATA)
Other Features
TPM Intel® PTT(TPM 2.0)
Power
Power Consumption 3.3V@1.1A, 5V@3.359A, 12V@2.18A, 5VSB@0.12A
(Intel® Core™ i5-10500TE CPU with four 8 GB 2933 MHz DDR4
DIMMs)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP compliant
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C ~ 70°C

Ordering Information

IMBA-Q471-R11 ATX motherboard supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots，M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x IMBA-Q471 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
