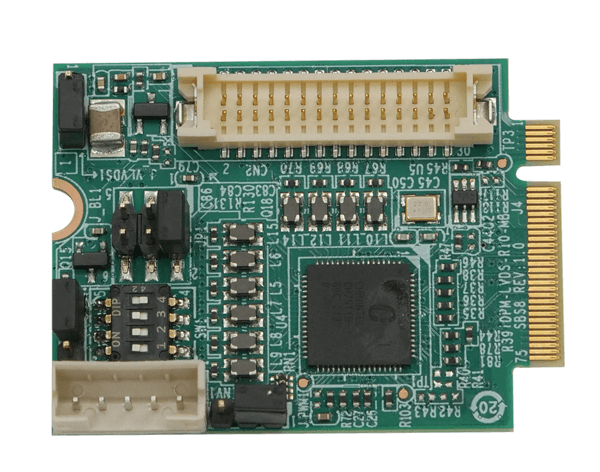

iDPM-LVDS
» eDP to LVDS output
» Support up to 1920 x 1200 resolution
» Only for IEI iDPM slot
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 40 mm x 30 mm |
| I/O Interface | |
| Display Output | 1 x LVDS: 24-bit dual-channel, up to 1920 x 1200 |
| Power | |
| Power Supply | On board 3.3V ~ 12V |
| Environment | |
| Operating Temperature | 0°C – 60°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| iDPM-LVDS-R10 | eDP to 24 bit dual channel LVDS converter board converter board (For iEi Display Module) |
|---|
Package Contents
| Package Content |
|
|---|
