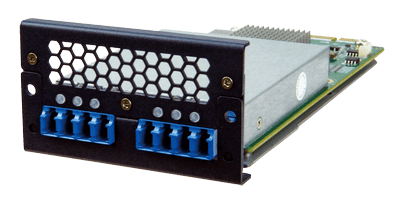

PulM-10G4SF

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with four 10GbE Fiber ports, two pair Bypass.

• 1 x Intel® Ethernet Controller XL710-BM1
• 4 x Fiber LC (SR or LR) interface
• PCIe 3.0 x8
• Two LAN bypass model available

Specifications

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 x 77.8 x 44.2
I/O Interface
Ethernet 4 x Fiber (Fiber LC (SR or LR))
Falt-tolerance
LAN Bypass Yes
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS
Card Slot Interface
PCIe PCIe 3.0 x8
Card Features
Speed 1GbE/10GbE
Controller Chip Intel® Ethernet Controller XL710-BM1

Ordering Information

PulM-10G4SF-XL710-BP-R10 Intel® Ethernet Controller XL710-BM1 based Network Interface Card with four 10GbE Fiber ports, two pair Bypass.

Package Contents

Package Content

  • 1 x PulM-10G4SF-XL710-BP

  • 1 x L-shaped T10 Plum Wrench

  • 2 x Torx Screws

  • 1 x QIG
