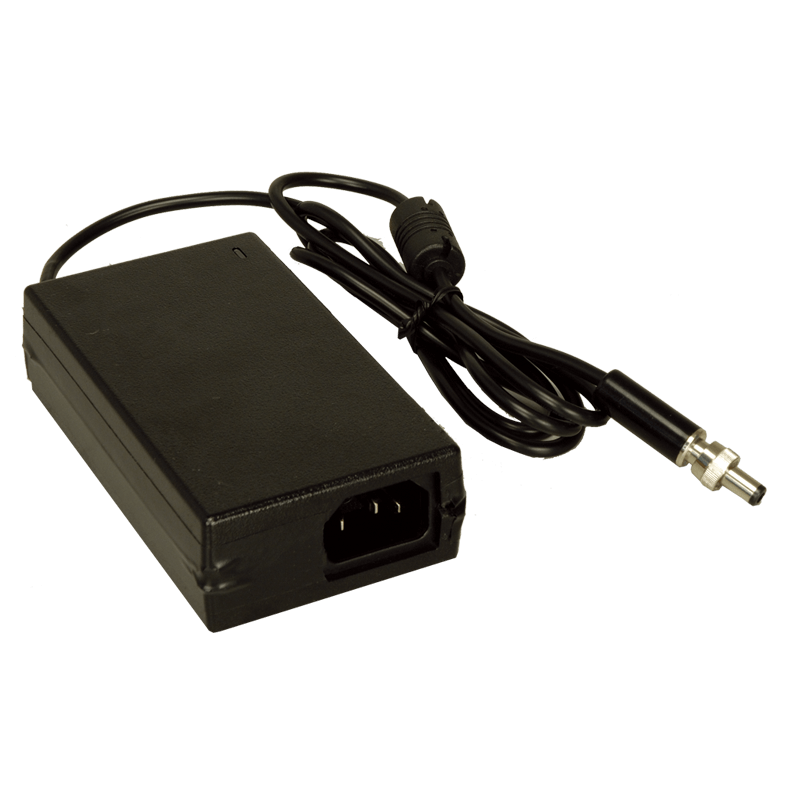

60 W AC/DC Adapter
60 W AC/DC Adapter
Hardware Spec.
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 80°C |
| Input | |
| Voltage | 90-264 VAC |
| Frequency | 47-63 Hz |
| Input Current | 1.8A |
| Output | |
| Voltage | 12V |
| General | |
| Watt | 60W |
| Efficiency | 85% |
| Dimensions | 62 x 110 x 31.5 (mm) |
Ordering Information
| 63040-010060-211-RS | Adapter Power;FSP;FSP060-DHAN3;9NA0608097;;Vin:90~264VAC;60W;Dim:62.0*110*31.5mm;Plug=7.5mm;Cable=1200mm;Erp(NO LOAD 0.21W);Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS |
|---|---|
| 63040-010060-200-RS | Adapter Power;FSP;FSP060-DHAN3;9NA0608011;;Vin:90~264VAC;60W;Dim:62.0*110*31.5mm;Plug=9.5mm;Cable=1500mm;Erp(NO LOAD 0.21W);Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS |
