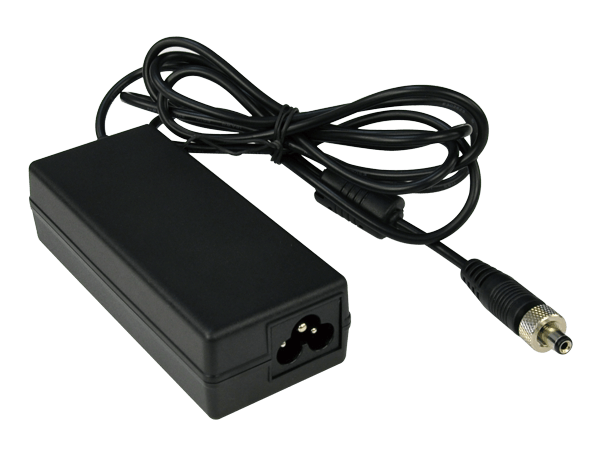

36 W AC/DC Adapter
36 W AC/DC Adapter
Hardware Spec.
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 80°C |
| Input | |
| Voltage | 90-264 VAC |
| Frequency | 47-63 Hz |
| Input Current | 1.8A |
| Inrush Current | 3A |
| Output | |
| Voltage | 12V |
| General | |
| Watt | 36W |
| Efficiency | 88.3% |
| Dimensions | 37.8 x 89.8 x 27.0 (mm) |
Ordering Information
| 63040-010036-220-RS | Adapter Power;FSP;FSP036-RHBN3;9NA0362708;;Vin:90~264VAC;36W;Dim:37.8*89.8*27.0mm;Plug=9.5mm;Cable=1500mm;Erp(NO LOAD 0.075W);Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS |
|---|---|
| 63040-010036-210-RS | Adapter Power;FSP;FSP036-RHBN3;9NA0362707;;Vin:90~264VAC;36W;Dim:37.8*89.8*27.0mm;Plug=7.5mm;Cable=1500mm;Erp(NO LOAD 0.075W);Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS |
