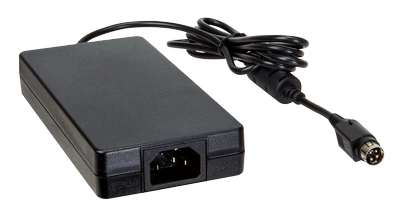

96 W AC/DC Adapter
96 W AC/DC Adapter
Hardware Spec.
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 80°C |
| Input | |
| Voltage | 90-264 VAC |
| Frequency | 47-63 Hz |
| Input Current | 8A |
| Inrush Current | 8A |
| Output | |
| Voltage | 12V |
| General | |
| Watt | 96W |
| Efficiency | 88.3% |
| Dimensions | 75.6 x 151.3 x 25.4 (mm) |
Ordering Information
| 63040-010096-231-RS | Adapter Power;FSP;FSP096-AHAN3;9NA0961449;Active PFC;Vin:90~264VAC;96W;75.6*151.3*25.4mm;Plug=7.5mm;Cable=1500mm;Erp(NO LOAD 0.21W),NXP TEA2016AAT;Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS |
|---|---|
| 63040-010096-050-RS | Adapter Power;FSP;FSP096-AHAN3;9NA0961453;Active PFC;Vin:90~264VAC;96W;151.3*75.6*25.4;Plug=9.5mm;Cable=1500mm;Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS |
| 63040-010096-040-RS | Adapter Power;FSP;FSP096-AHAN3;9NA0961452;Active PFC;Vin:90~264VAC;96W;151.3*75.6*25.4;Plug=6.5mm;Cable=1500mm;Vout:12VDC;Din 4Pin/lock;CCL;RoHS |
