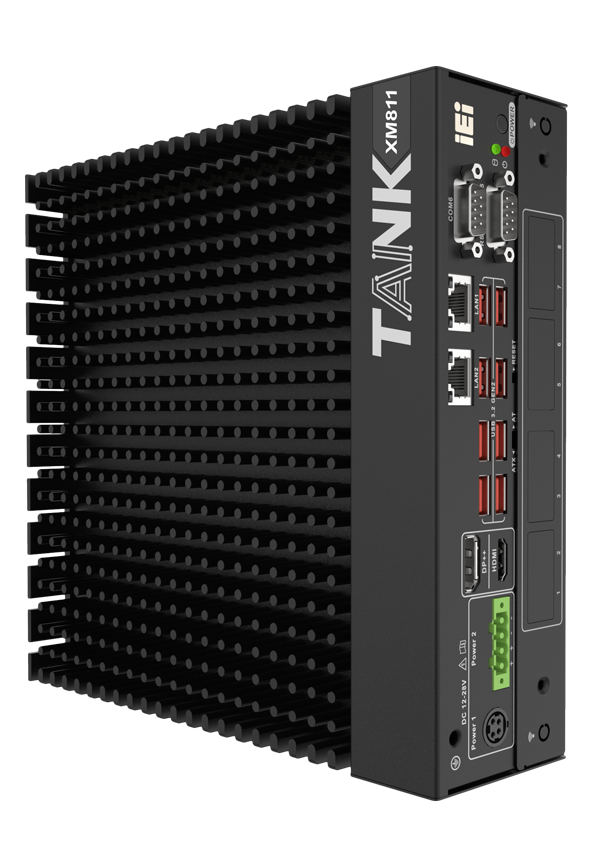

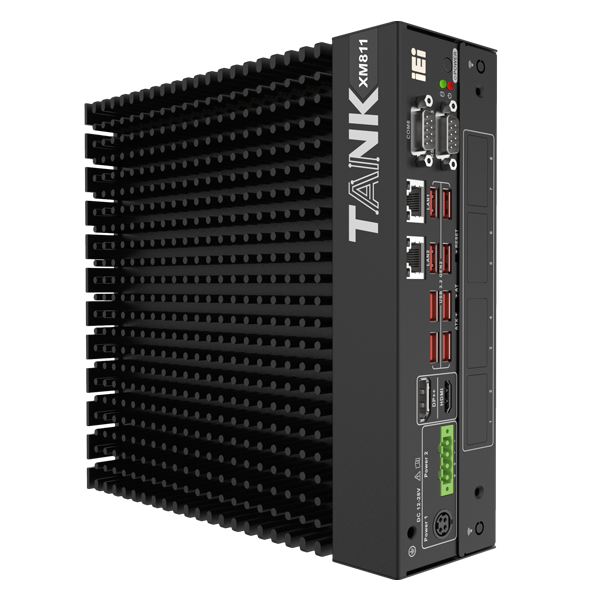

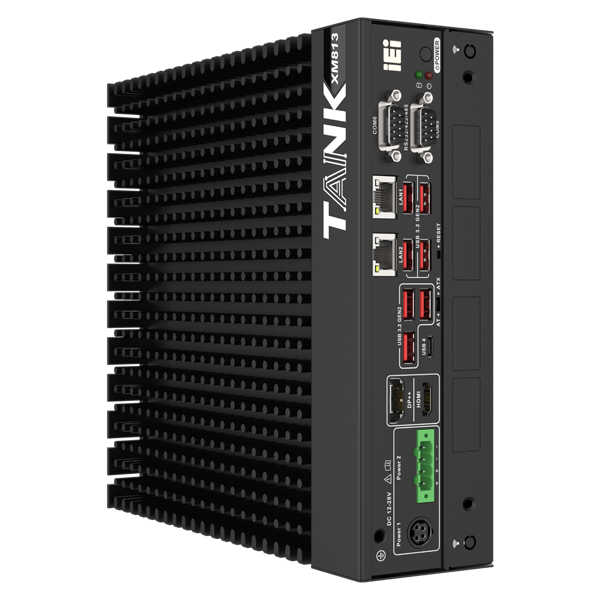

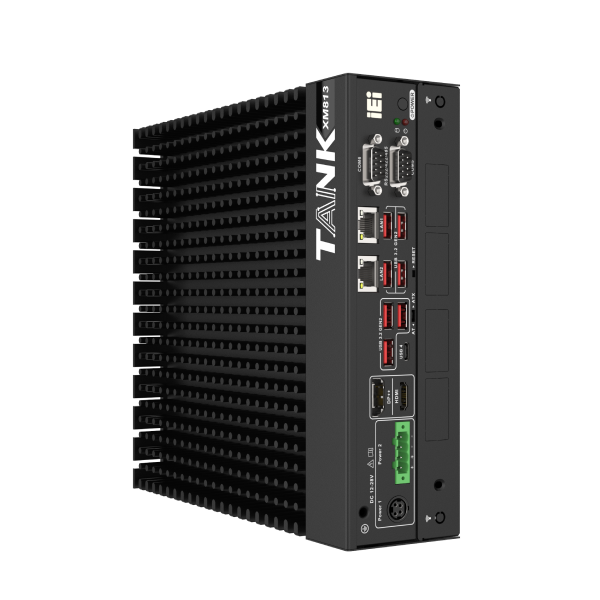

TANK-XM811
» Supported CPUs:
Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
» 2 x 2.5GbE ports
» Multiple USB ports and serial ports
» Multiple internal expansion boards for flexible selection
» Various optional backplanes and chassis
» CE/FCC compliant
IEI has engineered the TANK-XM811 with the latest technologies to deliver optimized and reliable processing performance at the rugged edge. This product features 12th generation Intel® Core™ processors, expandable GPU power, rapid NVMe storage, and scalability through IEI's eChassis modules. This product can be used for various industrial IoT applications, including surveillance, transportation, and advanced manufacturing.
Furthermore, the system effectively reduces lead times and inventory carrying costs by providing comprehensive modularized options and easy configuration.
12th Gen Intel® Core™ with Intelligent Workload Optimization, up to 36% CPU Performance Improved
IEI TANK-XM811 is a rugged edge AI inference system that supports up to 65W TDP processors. It is integrated with the 12th Gen Intel® Core™ desktop CPU and Intel® R680E chipset. This solution is up to 36%, 35%, and 94% faster for single-thread performance, multi-thread performance, and graphics performance than previous generations.
In addition, the integrated GPU, Intel UHD Graphics 770, can offer up to 32 graphics execution units (EUs) and a clock speed of up to 1.55 GHz (depending on the CPU model). With the improved graphics performance and GPU image classification inference performance, the TANK-XM811 can support better AI workload parallelization and image classification inference.
Flexible Expansion with eChassis
The TANK-XM811 supports the unique eChassis modules that enable performance acceleration through GPUs, accelerators and other add-on cards. Furthermore, comprehensive modularized options and the ease of configuration effectively reduce lead times for customers' diverse requirements.
Four Steps to Configure Your Edge AI Inference System
The TANK-XM811 series of embedded computers from IEI provides great scalability and flexibility, thanks to its unique eChassis modules. This makes it easy for system integrators to configure a system that meets specific user requirements.
Choose a System
Choose an ideal embedded system according to CPU and price
Choose a Backplane (eBP)
Choose a backplane according to functionality
Select a Chassis (eChassis)
Find a corresponding chassis according to the selected backplane
Select a Power Supply
Find a sufficient power supply
Flexible Expansion via
PCIe/PCI Slot
For performance upgradability and flexibility, the TANK-XM811 supports eChassis and eBP modules to add edge inference capabilities. It also provides up to 7 system configuration options. Users can select a specific package that provides extra PCIe expansion slots for add-on cards such as frame grabber cards, accelerator cards, I/O cards, motion control cards, and even GPU accelerators for machine learning and AI workloads.
A |
B |
C |
D |
E |
F |
G |
||
| eChassis | TXC-XM81-3S | TXC-XM81-3S | TXC-XM81-4S | TXC-XM81-4S | TXC-XM81-4S | TXC-XM81-G1 | TXC-XM81-G2 | |
| eBP | TXCBP-XM81-2A | TXCBP-XM81-2B | TXCBP-XM81-4A | TXCBP-XM81-4B | TXCBP-XM81-4C | TXCBP-XM81-4A | TXCBP-XM81-G2 | |
 |
 |
 |
 |
 |
 |
 |
||
| Slot 1 | PCIe x16 | PCle x16 (x8 signal) | PCIe x16 | PCle x16 (x8 signal) | PCIe x16 | PCIe x16 | PCle x16 (x8 signal) | |
| Slot 2 | - | - | PCIe x1 | PCIe x4 | PCIe x4 | PCIe x1 | - | |
| Slot 3 | PCIe x4 | PCle x16 (x8 signal) | PCIe x4 | PCle x16 (x8 signal) | PCI | PCIe x4 | PCle x16 (x8 signal) | |
| Slot 4 | - | - | PCIe x4 | PCIe x4 | PCI | PCIe x4 | - | |
| Slot 5 | - | - | - | - | - | - | PCIe x4 | |
| Slot 6 | - | - | - | - | - | - | PCIe x4 |
GPU Expansion Box
The GPU eChassis, TXC-XM81-G1 and TXC-XM81-G2, are the scalable graphics card expansion chassis designed for artificial intelligence applications. They can support up to total 380 W and 339.8 mm in a full-length, full-height form factor. Other PCIe add-on cards like high speed I/O cards, data collection cards, frame grabber cards and motion cards are also supported to expand functionality.
*Please choose the corresponding eBPs, TXCBP-XM81-4A for TXC-XM81-G1 and TXCBP-XM81-G2-PW for TXC-XM81-G2.
Dual-Power Input for Performance Acceleration
The TANK-XM811 provides a dual-power input solution for stably and efficiently powering the high power loading add-on cards. The IDD-X1228150 power board provides additional power for GPU cards and accelerators that require more than 75W.
» 12-28V DC for host system
» 12V DC or 16-28V DC for performance acceleration cards
Industrial-grade Hardened Hardware Design
with 12V~28V DC Wide-range Power Input
Ruggedized hardware architecture safeguards the small factor computer in harsh, remote and dynamic environments.
» Fanless cooling eliminates failure points
» -20°C to 60°C wide operating temperature
» 50 G shock and 3 Grms vibration
» Wide 12V to 28V DC voltage input
» Intel® Platform Trust Technology (Intel® PTT) to enable password protection, device authentication and future-ready cybersecurity
-20°C
60°C
Fanless System with Reliable Thermal Design
The TANK-XM811's thermal design is optimized for better heat conduction using a pin-fin heatsink concept. This enhances two dimensional heat conduction and reduces flow impedance for better heat dissipation in this fan-less system. The overall weight and dimensions are thus reduced, significantly enhancing system reliability in vibration-sensitive applications, such as AGV. Moreover, this innovative thermal design allows the TANK-XM811 to maximize superior performance than those with traditional heatsink consisting of parallel fins.
Advanced High-efficient Fan Kit Releases Extreme
Computing Power
For applications that require a lot of computing power, users can add an external fan for active cooling. This will help maintain high system performance in high temperature environments and under high CPU loads. This design is reliable and prevents dust from getting into the hardware. It is also easy to disassemble and clean.
» TDP 35W operates at -20°C ~ 60°C w/o external fan
» TDP 65W operates at -20°C ~ 60°C with external fan
100% CPU Power
Easy Assembly
Silent Operation
Versatile for Installation Flexibility
The TANK-XM811 supports side mounting and can be mounted on the wall or desktop for quick deployment in a variety of edge AI applications. No matter it is in the field, cabinet or equipment.
Wall Mounting
Using the two side wings
Side Mounting
Space-saving side mounting in a cabinet
Desktop Mounting
Easy for field maintenance
Easily Integrated Enclosure for Local CTOS
The mainboard is attached to a support bracket to keep it from bending or warping. The top and bottom covers can be opened in a few steps for installing the CPU, memory, and hard drive. Moreover, the system integrator can take advantage of local configure-to-order-service.
Wireless Connectivity from the Edge
IEI TANK-XM811 series enables seamless wireless connectivity for remote and mobile edge deployments. WiFi 6 and Bluetooth 5.0 reliably connect to sensors for indoor applications. Dual SIM sockets provide continuous LTE cellular connectivity and network redundancy to ensure uninterrupted data transmission for outdoor mobile edge deployments. Furthermore, the TANK-XM811 is 5G ready through a 5G add on card and the on-board SIM slot, providing greater cellular speeds.
IEI Wireless Expansion Module P/N: TXIOB-XM81-A
» 1 x M.2 2230 A key slot for WiFi and Bluetooth (PCIe x1 & USB 2.0 mode)
» 1 x Full-size PCIe Mini slot with SIM holder (PCIe x1 & USB 2.0 mode)
» 1 x M.2 3042/3052/3080 B key slot with SIM holder (PCIe x1 & USB 3.2 mode) for LTE/5G cellular, NVMe SSD or AI accelerator
» 1 x M.2 3042/3052/3080 B key slot with SIM holder (PCIe x2 mode) for LTE/5G cellular, NVMe SSD or AI accelerator
Eight 2.5GbE PoE+ for Added Device Connectivity
Oftentimes embedded computers are deployed in environments where it is difficult or costly to add power outlets for connected devices. IEI's TANK-XM811 features eight PoE+ (IEEE 802.3at) ports. Each port is capable of providing up to 30 watts over a single Ethernet cable to transmit both data and power.
IEI provides an Ethernet daughterboard module that can be easily integrated into the TANK-XM811 through standard PCIe protocols. The PoE+ connectivity allows organizations to power devices such as sensors and cameras through Ethernet ports. It also provides additional Ethernet I/O ports and scalable connectivity for IoT deployments.
Moreover, the 2.5GbE PoE module allows the TANK-XM811 to connect to devices that need intensive bandwidth, like high-resolution cameras. This lets the camera transfer high-resolution video feeds to an embedded system.
IEI PoE LAN Module
P/N: GPOE-XM81-8P
» Interface: 8 x PCI Express® x1
» Ethernet: 8 x 2.5GbE Intel® I225-V controller
» PoE Capability: IEEE 802.3at with 30W / 52V per port (total power 60W)
Stunning 4K Resolution and Dual
Independent Display Support
The TANK-XM811 is equipped with Intel® UHD 630 graphics engine for stunning 4K image display via DP++ and HDMI™ ports. The DisplayPort Dual-Mode (DP++) connector can be used with a simple, inexpensive passive adapter to convert to HDMI™. It is completely plug and play, handles both video and audio, and does not need any driver to work.
PCIe x4 NVMe Offers Higher Performance and Low Latency for Edge Computing
Compared to a SATA SSD drive, an NVMe-based drive can write to disk up to 4x faster. Thus, the NVMe system is a great solution to enable applications that require real-time data processing and analysis, such as autonomous vehicles, machine learning, surveillance and industrial automation.
NVMe Speed vs. SATA Speed
Versatile I/O
IEI's AI edge inference system, TANK-XM811, incorporates leading-edge I/O options for a vastly expandable Industry 4.0 solution. Reliable serial ports, multi-display outputs and high-speed USB ensure smooth integration and offer rich scalability to rugged edge deployments.
1DC IN
2 1 x DP++ 1.4
1 x HDMI™ 1.4
38 x USB 3.2 Gen 2
42 x 2.5GbE
52 x RS-232/422/485
6Remote power
74 x RS-232
81 x DIO (6-in/6-out)
9For Expansion IO Board
Optional Item Selection
With flexibility and convenience – various options await! Build your iconic TANK-XM811 by choosing functional expansions!
Mustang-V100-MX8
8 x Intel® Movidius™
Myriad™ X MA2485 VPU Accelerator
Mustang-V100-MX4
4 x Intel® Movidius™
Myriad™ X MA2485 VPU Accelerator
GPOE-2P
2-port 802.3at PoE Card
Mustang-T100-T5
5 x Google Coral edge TPU Accelerator
Mustang-F100
Intel® Arria® 10 GX1150 FPGA Accelerator
Dimensions
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
|
| Expansion Slots | |
| Expansion Slots |
|
| System | |
| Cooling method / System Fan |
Fanless 4-pin external system fan connector |
| Drive Bays | 1 x 2.5＂ SATA 6Gb/s HDD/SSD bay |
| Indicator&Buttons | |
| Buttons |
1 x Power button 1 x Reset button 1 x AT/ATX switch |
| Indicators |
1 x Power LED (green) 1 x HDD LED (yellow) |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 230.6 x 256.04 x 76.2 |
| Weight | |
| Weight | 3.33/3.7 kg |
| Environment | |
| Operating Temperature |
-20°C ~ 60°C with air flow (CPU TDP35W & SSD) -20°C ~ 50°C with air flow (CPU TDP65W & SSD) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (SSD) |
| Safety & EMC | CE/FCC compliant |
| OS Support | |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
Ordering Information
| TANK-XM811-i9AD-R11 | Ruggedized Fanless Embedded System With Intel® 12th i9 CPU, 16GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
|---|---|
| TANK-XM811-i7AC-R11 | Ruggedized Fanless Embedded System With Intel® 12th i7 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
| TANK-XM811-i5AC-R11 | Ruggedized Fanless Embedded System With Intel® 12th i5 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
Package Contents
| Package Content |
|
|---|
