» LGA1700 Intel® 12th/13th/14th Generation Core i9/i7/i5/i3, Pentium and Celeron processor (up to 125W)
» Dual-channel DDR4 3200MHz supported up to 128GB
» Support triple independent display via DVI,VGA and internal DP++
» Support one PCIe x16, two PCIe x4 and one PCIe x1 expansions
» Support two M.2 M keys and four SATA for storage
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | micro ATX |
| System | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU) |
| Chipset | Intel® Q670/Q670E |
| Memory | Four 288-pin3200 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB |
| Memory Max. | 128GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 244mm |
| Net Weight | 700g |
| Storage | |
| Storage | 4 x SATA : RAID 0/1/5/10 supported |
|
2 x M.2(NGFF) - 1 x M Key (2242/2280, PCIe x4) 1 x M Key (2242/2280, PCIe x2) |
|
| I/O Interface | |
| Display Output | 1 x VGA : up to 1920x1200@60Hz |
| 1 x DVI-I : up to 1920x1200@60Hz | |
| 1 x DP++ : up to 4096 x 2304 @60Hz | |
| Ethernet |
2 x LAN - LAN1: Intel® I225LM/I226LM 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| Audio |
HD Audio - Realtek ALC888S HD Audio codec supports 7.1-channel 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio (2x5 pin) |
| I/O Interface | 8 x Internal RS-232 : 2x20 pin, P=2.54 |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.54 | |
| 4 x External USB 2.0 (Type A) | |
| 6 x External USB 3.2 Gen1x1 : 5Gb/s(Type A) | |
| 4 x External USB 3.2 Gen2x1 : 10Gb/s(Type A) | |
| 1 x I²C : 1x4 pin | |
| Expansion | 1 x PCIe x16 : Gen4 slot with x16 Signal |
| 2 x PCIe x4 : Gen4 open-end | |
| 1 x PCIe x1 : Gen3 | |
|
2 x M.2(NGFF) - 1 x M Key (2242/2280, PCIe x4 ) NVMe support 1 x M Key (2242/2280, PCIe x2 for SSD) NVMe support |
|
| Power | |
| Power Consumption | 3.3V@1.36A, 5V@11.85A, 12V@5.75A, 5VSB@0.38A (Intel® Core™ i9-12900E CPU with two 32 GB 3200 MHz DDR4 memory, EuP mode enabled) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information

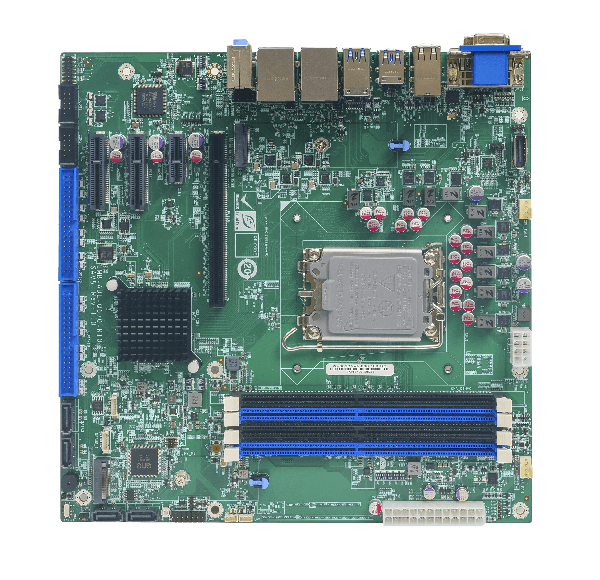

| IMB-ADL-Q670-R10 | micro-ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
