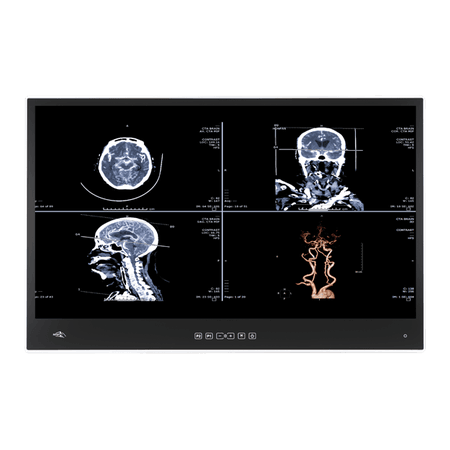

POCm-W24C-RPL

Medical Panel PC

» 13th Gen Intel® Core™ i5/ i7 processor (Raptor Lake-P)
» Anti-bacteria housing with IP65 front bezel protection
» PCAP touch allows multi-touch, multi-layer gloves and water-on-screen operation
» Three hot-swappable batteries with a total runtime of 10-16 hours, ideal for non-powered medical carts

13th Generation Intel® Core™ i5 / i7 Processors

Item POCm-ULT3 POCm-RPL
CPU 6th Gen, code name: Skylake 13th Gen, code name: Raptor Lake-P
i5-6300U i7-6600U i5-1340PE i7-1370PE
Process Node 14 nm Intel® 7 (10 nm)
Total Cores / Threads 2 / 4 12 (4P + 8E*) / 16 14 (6P + 8E*) / 20
* P-core: High workload, low latency or single thread task * E-core: Low power consumption, high efficiency
Cache 3MB Intel® Smart Cache 4 MB Intel® Smart Cache 12MB Intel® Smart Cache 24 MB Intel® Smart Cache
Memory Types DDR4-2133 (max. 32 GB) SO-DIMM DDR5 up to 4800 MT/s (max. 64 GB)
Processor Graphics Intel® HD Graphics 520 (1.00 GHz / 1.05 GHz) Intel® Iris® Xe Graphics eligible (1.45 GHz / 1.50 GHz)
Charging Method Parallel Parallel / Rolling

Health and Durability Combined

Anti-bacteria housing:
The Secret of anti-bacteria housing

The introduction of metal ions with antimicrobial properties into the soluble glass structure allows the soluble glass to release stable and moderate amounts of antimicrobial metal ions in a moist or humid environment to achieve antimicrobial effects. The addition forms a semi-permanent antimicrobial surface layer within the material and does not evaporate.

Mouse-Free Interactions

  • 22”/ 24” inches 10-point P-CAP touch
  • 6H surface scratch resistance
  • Multiple layers of surgical gloves
  • Advanced water & fluid handling

5-layer medical gloves

Anti-Normal Saline and Blood
(containing 9.0 g of salt per liter (0.90%))

The Latest Wi-Fi 6E Module

AP capacity

Frequency band

Maximum
throughput speeds

TWT

8MP Front Camera

POCm-ULT3 POCm-RPL
Front Camera 5MP 8MP
CMOS Sensor Active Pixels 2592 (H) x 1944 (V) 3264 (H) x 2448 (V)

Flexibly Tailor Your DC Output Option

Configurable DC output

1 x DC output (12V/19V/24V, 20W)

Same Size, More Capacity

Compared to the previous generation, the battery capacity is 1.2x larger, and the charging speed is faster, saving up to 12% of charging time.

  • Li-ion rechargeable battery pack
  • 9000 mAh, 97.2Wh / one battery
  • Only 460 grams in weight
  • CB 62133, 2013/56/EU, UN-38.3+1.2M drop

IEI iScreen Manager

Energize Your Devices, Protect Your Privacy

Backlight auto-adjust

Sneak peek alert

  • Detect user’s head in the detection area when the visual field is forward-facing the screen.
  • When detecting user’s head, the POCm can adjust the backlight automatically.

ON

OFF

  • Send alert to the user when other people want to peek the screen.
  • It can help users to protect their privacy.

ON

I/O Interfaces & Dimensions

  • 1
    AUXILIARY DC Out
  • 2
    RS-232
  • 3
    HDMI™
  • 4
    USB 3.2
  • 5
    DC IN
  • 6
    Clear CMOS
  • 7
    LAN
  • 8
    USB-C
  • 9
    AT/ ATX
  • 10
    RESET

Specifications

Hardware Spec.

Display
LCD Size 23.8”
LCD Resolution 1920 x 1080
LCD Brightness (cd/m²) 350
LCD Contrast Ratio 1000:1
LCD Color 16.7M (RGB 8-bit)
LCD Pixel Pitch (mm) 0.2745 (H) x 0.2745 (V) mm
LCD Viewing Angle (H-V) 178˚/178˚
LCD Backlight MTBF 30000
Touch Screen PCAP
Touch Controller EETI
Touch Surface Hardness 6H
Camera 8-megapixel CMOS front-facing camera
System
Processor 13th Gen Intel® Core™ i5-1340PE/ i7-1370PE (Raptor Lake-P)
Supported OS Windows 11, Linux Ubuntu
Network
Ethernet Controller Intel® I226-V
Wi-Fi IEEE 802.11 a/b/g/n/ac/ax, Intel® Wi-Fi 6E AX210
Bluetooth Bluetooth V5.2
Storage
Storage 1 x 2.5” accessible SATA HDD bay
2 x M.2 2280 M key (PCIe) with RAID
RAM 2 x 262-pin 4800MT/s dual-channel DDR5 SO-DIMM slots (system max. 64GB)
Expansion Slots
Expansion Slots 1 x PCIe Mini (PCIe)
1 x M.2 2230 A-E key (PCIe+USB)
2 x M.2 2260/80 B-M key (PCIe)
Audio
Speaker 2 x 2W speaker
Microphone 1 x Digital mic
I/O Interface
Side I/O 1 x Mic in
1 x Audio out
2 x USB 2.0 port
Rear I/O 1 x DC jack
1 x HDMI output
1 x USB Type-C (DP + USB 5V/3A)
1 x DC output (12V/19V/24V, 20watt)
2 x 2.5GbE LAN port
1 x RS-232
4 x USB 3.2 Gen 2 (10Gb/s) port
Indicator&Buttons
Buttons 1 x Power on/off
Indicators 1 x RFID indicator
1 x Power indicator
3 x Battery indicator (color: blue/red)
Other Features
OSD Function 1 x Power on/off
1 x Volume up
1 x Volume down
1 x Brightness up
1 x Brightness down
1 x LCD on/off and touch lock for cleaning
Physical Characteristics
Thermal Fanless
Construction Material ABS+PC plastic
Mounting Wall, Stand and Arm; VESA 75/100 compliant
Weight (Net) (kg) 7.78 kg (without battery)
Weight (Gross) (kg) 9.25 kg (with 3 batteries)
Dimensions (LxWxH) (mm) 594.6 x 379.6 x 63.2
Power
Input 19V DC input
Output 1 x DC output (12V/19V/24V, 20watt)
Power Adapter 150W medical power adapter
Environment
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Humidity 10% ~ 90% (non-condensing)
Vibration 1G
Operating Shock 5G peak acceleration (11ms duration)
Non-operating shock 15G peak acceleration (11ms duration)
IP Level Front: IP65
Certifications
Safety & EMC CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2

Ordering Information

POCm-W24C-RPL-i7/PC-R10 23.8" 350cd/m² FHD medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i7-1370PE 4.8GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen,8M camera,D-mic,w/o battery,R10
POCm-W24C-RPL-i5/PC-R10 23.8" 350cd/m² FHD medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i5-1340PE 4.5GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen,8M camera,D-mic,w/o battery,R10

Package Contents

Package Content

  • 1 x Power Adapter (150W medical power adapter)

  • 1 x Power Cord (European power cord, 183 cm, C13)
