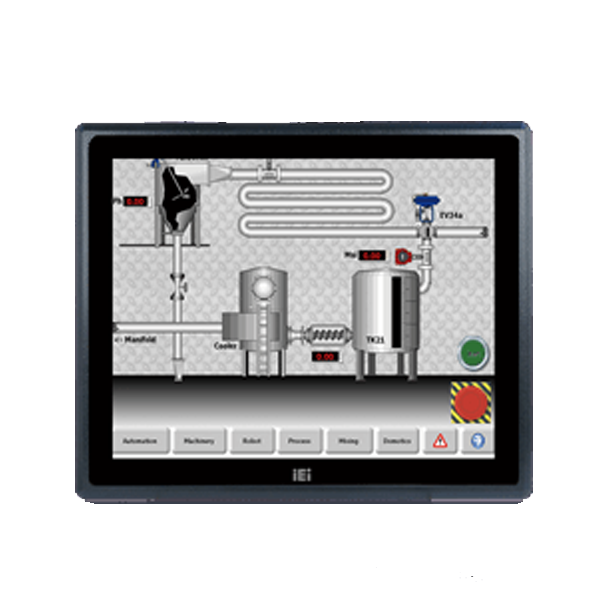

PPC-F19B-BT

19” Fanless Intel® Bay Trail Solution

» Support IEI iRIS-2400 remote intelligent solution
» Intel® Celeron® J1900 quad-core SoC
» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Projected capacitive multi-touch and resistive single touch options
» Dual full-size PCIe Mini card expansion
» 9V~36V DC wide range DC input

Specifications

Hardware Spec.

Communication
Wireless 802.11 b/g/n (optional)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -10°C~50°C (14°F~122°F)
Safety & EMC CE & FCC Class A certified
Storage Temperature -20°C~60°C (-4°F~140°F)
I/O Interface
Expansion 1 x Full-size PCIe Mini slot ( mSATA/PCIe/USB signal)
1 x Full-size/half-size PCIe Mini slot (PCIe/USB signal)
FDD Bay 1 x 2.5” HDD/SSD drive bay
I/O Ports and Switches 2 x RJ-45 LAN port
2 x USB 3.0
2 x USB 2.0
1 x HDMI™
2 x RS-232
1 x RS-232/422/485
1 x VGA
1 x 9 V~36 V DC jack (4-pin)
1 x 9 V~36 V DC terminal block
1 x Line-out
1 x Power switch
RAM 2 x 204-pin DDR3L SO-DIMM slot (max. 8GB), pre-installed with 2GB
LCD
Backlight MTBF 50000 hrs
Brightness (cd/m2) 350
Contrast Ratio 1000 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.294 x 0.294
Resolution 1280 (W) x 1024 (H)
Size 19” (5:4)
Viewing Angle (H-V) 170º / 160º
Physical Characteristics
Color Black C
Construction Front Panel Aluminum front panel and sheet metal rear cover
Dimensions (LxWxH) (mm) 372.4 x 447.4 x 52.87
Mounting Panel mount, rack mount, VESA 100x100
Net Weight 6.5 kg
Power
Power adapter P/N: 63040-010060-110-RS
60W Power Adapter
Input: 90 - 264V AC, 50/60Hz
Output: 12V DC
Power consumption 12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory) 12V@3.58A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement 9 V~36 V DC
System
CPU Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
Drive Bays 1 x 2.5” HDD/SSD drive bay
Touch
Touch Controller 3H,6H
Touch Screen 5-wire resistive type single touch window (Penmount 9000)
2-point projected capacitive touch window (EETI EXC7200)
I/O Interface
I/O Interface 1 x Audio(Line-out)
2 x Power In(9 V~36 V DC jack (4-pin) / 9 V~36 V DC terminal block)
2 x LAN(Gbe(RJ-45))
1 x VGA
1 x HDMI™
2 x USB 3.0
2 x USB 2.0
1 x RS-422/485
2 x RS-232
1 x Power Switch

Ordering Information

PPC-F19B-BTi-J1/2G/R-R11 19" 350 cd/m2 SXGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, AG resistive touch window, R11
PPC-F19B-BTi-J1/2G/PC-R11 19" 350 cd/m2 SXGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, AG projected capacitive touch window, R11

Package Contents

Package Content

  • 1 x PPC-FxxB-BTi Panel PC

  • 1 x Touch Pen

  • 1 x Power Cord

  • 1 x Screw Pack

  • 1 x Power Adapter
