End of Life Notice
* Effective Date: 2020/06/16
» Double Server, with Intel® Xeon® E5-2600 v3
» 16 x DIMM Slots, Install up to 1TB memory with 16 x 64GB DIMMs
» 4 x PCIe slot can support 40GbE network card
» Storage expandable, up to 1PB
» IPMI Remote Management
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 3U, Rackmount |
| System | |
| CPU | FCLGA2011-3 sockets-support Xeon® E5-2600 v3 family |
| Chipset | Intel® C610 |
| Memory |
RDIMM / LRDIMM Total slots: 16 |
| Memory Max. | 1 TB (64 GB x 16) |
| Cooling method / System Fan | Smart Fan 4 (6cm 12V DC) |
| Physical Characteristics | |
| Rack Height | 3U |
| Dimensions (LxWxH) (mm) | 130.8 (H) x 444 (W) x 744 (D) mm |
| Net Weight | 22.42 kg / 49.43 lb |
| Storage | |
| Storage | 4 x 2.5” SSD/HDD Bay(SAS (12Gbps) SSD or SAS/SATA (6Gbps/3Gbps) SSD) |
| 16 x 3.5” HDD Bay(3.5” SAS (12Gbps/6Gbps) / SATA (6Gbps/3Gbps) HDDs or 2.5” SAS/SATA SSD) | |
|
Description:(Max. Raw Capacity: 128TB Interface: SAS 12Gb/s backward-compatible to SAS/SATA 6Gb/s) |
|
| 2 x M.2(NGFF) | |
| I/O Interface | |
| Display Output | 1 x VGA |
| Ethernet | 2 x LAN(GbE) |
| I/O Interface | 4 x External USB 3.0 |
| Expansion | 2 x M.2(NGFF) |
| 1 x PCIe x 16 | |
| 3 x PCIe x 8 | |
| Other Features | |
| IPMI | IPMI LAN port, IPMI VGA, IPMI console |
| Power | |
| Power Consumption |
Sleep mode: 254.21 W In Operation: 362.86 W |
| Power Supply | 650W (Redundant) |
Ordering Information

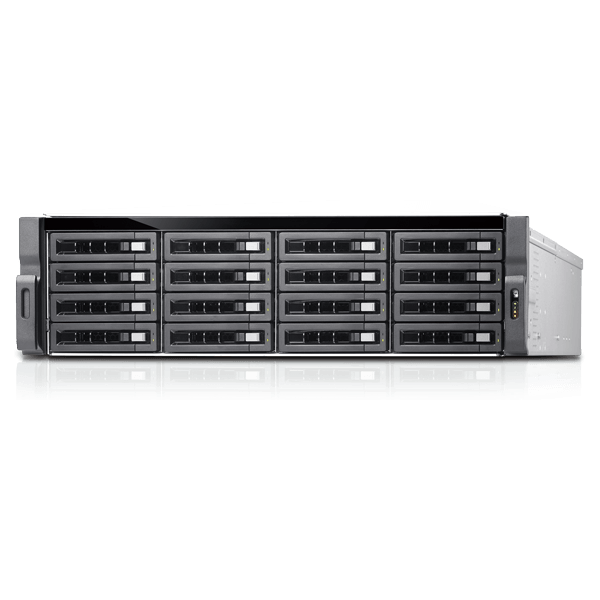

| GRAND-C610-20C-R10 | 3U 16Bay front 3.5", 4bay rear 2.5" HDD or SSD support, rackmount storage server (Barebone), with 650W redundant PSU, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
