PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots

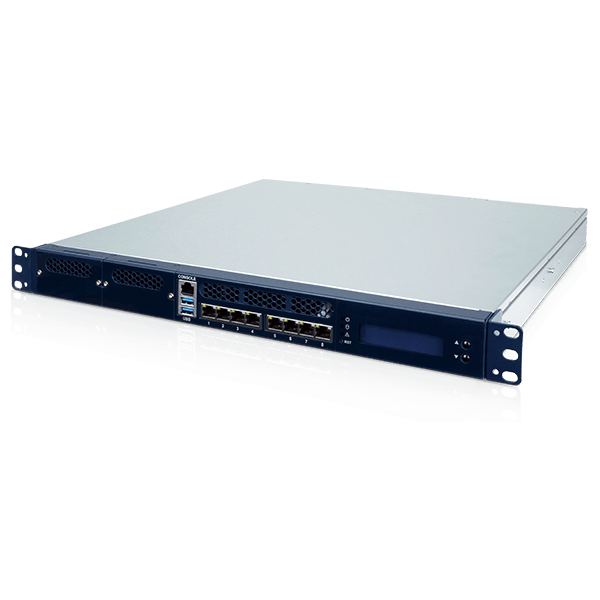

PUZZLE-IN001A Network Appliance
PUZZLE-IN001A Network Appliance
PUZZLE-IN001A Network Appliance
PUZZLE-IN001A Network Appliance
  • PUZZLE-IN001A Network Appliance
  • PUZZLE-IN001A Network Appliance
  • PUZZLE-IN001A Network Appliance
  • PUZZLE-IN001A Network Appliance
» Intel® Xeon® E, 8th & 9th Generation Intel® Core™/Pentium®/Celeron® processor
» 8 x 5 GbE RJ-45 via AQC 111C
» 4 x 288-pin DIMM, DDR4 2400MHz ECC & non ECC, up to 64 GB
» 1 x RJ-45 Console, 2 x USB 3.2 Gen 1 (5Gb/s)
» 2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe Mini
» Support PCIe x4, PCIe x8 slot and two PulM module slots
» Redundant PSUs

Specifications

Hardware Spec.

Form Factor
Form Factor 1U
System
CPU Intel® Gen8 Xeon® E-2136 processor
Intel® Gen8 Core™ i3-8100T processor
Chipset Intel® C246
Memory 4 x DDR4 2400MHz ECC/Non-ECC UDIMM
Memory Max. Up to 64GB
Cooling method / System Fan 4 x Cooling fans with smart fan
Physical Characteristics
Dimensions (LxWxH) (mm) 426x430x44.2
Storage
Storage 2 x 2.5” SSD/HDD Bay : support SATA 3.0 (6 Gbps)
I/O Interface
Ethernet 8 x LAN : 8 x 5GbE RJ-45 LAN ports (AQC111C)
I/O Interface 2 x External USB 3.2 Gen1x1 : Gen 1 (5Gb/s)
4 x Internal USB 2.0 : USB 2.0 (pin header)
Expansion 1 x PCIe x8
1 x PCIe x4
1 x PCIe mini Card Slot (PCIe 3.0 & SATA 3.0, USB 2.0)
1 x M.2(NGFF) B key 2260/2280 (SATA & USB 3.0)
Power
Power Supply 300W, 100V~240V (Redundant power)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/Fedora EPEL
Microsoft Windows 10

Ordering Information

PUZZLE-IN001A-i3T/R-R10 1U Rackmount Network Appliance with Intel® Gen 8 Core™ i3-8100T processor, two DDR4 slots, eight 5GbE , two PulM & two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001A-XE/R-R10 1U Rackmount Network Appliance with Intel® Gen 8 Xeon® E-2136 processor, two DDR4 slots, eight 5GbE , two PulM, two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001A-R-R10 1U Rackmount Network Appliance support Intel® Gen 8 Xeon® E3, Core™ i3, Pentium® or Celeron® processor, two DDR4 slots, eight 5GbE , two PulM, two PCIe expansion, Redundant Power, RoHS

Package Contents

Package Content

  • ．2 x Power cord

  • ．2 x Rack mounting ears

  • ．6 x Screws for rack mounting ears

  • ．USB to console cable (Option)

  • ．RS-232 to console cable (Option)

  • ．Slide rail (Option)
