End of Life Notice
* Effective Date: 2024/09/03

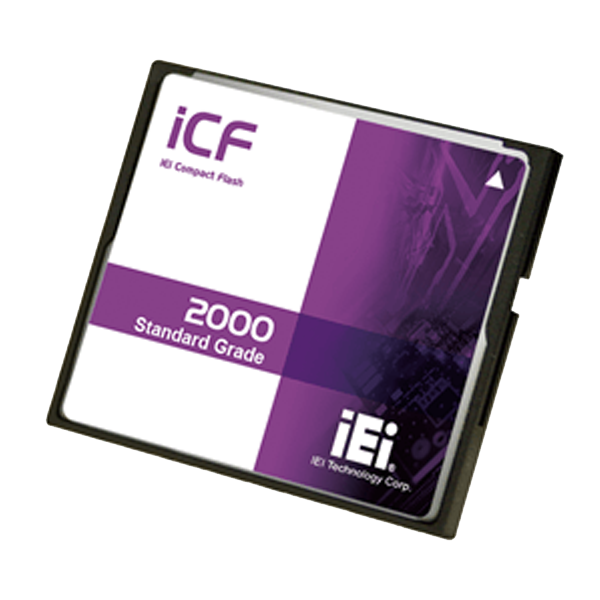

CF Card Series SLC
Hardware Spec.
| ATA Security | |
|---|---|
| ATA Security | Yes |
| Capacity (GB) | |
| Capacity (GB) | 512MB~8GB |
| DC Power Input | |
| DC Power Input | +3.3V-+5V single power supply operation |
| Dimensions | |
| Dimensions | 42.8 x 36.4 x 3.3 |
| Flash Type | |
| Flash Type | SLC |
| IDE Transfer Mode | |
| IDE Transfer Mode |
PIO mode 0-4 MwDMA mode 0-4 UltraDMA mode 0-4 |
| Max. Power Consumpation | |
| ConsumpationMax. Power Consumpation | 0.75W (5V x 125mA@210mA) |
| P/N | |
| STD(0°C~+70°C) |
ICF-2000IPD-512MB ICF-2000IPD-1GB ICF-2000IPD-2GB ICF-2000IPD-4GB ICF-2000IPD-8GB |
| WT(-40°C~+85°C) |
ICF-2000WPD-512MB ICF-2000WPD-1GB ICF-2000WPD-2GB ICF-2000WPD-4GB ICF-2000WPD-8GB |
| S.M.A.R.T | |
| S.M.A.R.T | Yes |
| Sequential R/W | |
| Sequential R/W | 40/30 MB/sec |
| Environment | |
| Operating Temperature | 0°C~+70°C (Standard)/-40°C~+85°C (Industrial) |
| Operating Vibration | N/A |
| Operating Shock | 1500G/0.5ms |
| Storage Temperature | -55°C~+95°C |
Ordering Information
| ICF-2000WPS-512MB | |
|---|---|
| ICF-2000WPD-8GB | |
| ICF-2000WPD-4GB | |
| ICF-2000WPD-2GB | |
| ICF-2000WPD-1GB | |
| ICF-2000IPS-512MB | ICF 50 PIN 512MB,Toshiba Flash,Industrial CF card, iCF 2000 Single Channels,High Speed,SLC,0℃~70℃,R:20MB/s W:10MB/s |
| ICF-2000IPD-8GB | ICF 50 PIN 8GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s |
| ICF-2000IPD-4GB | ICF 50 PIN 4GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s |
| ICF-2000IPD-2GB | ICF 50 PIN 2GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s |
| ICF-2000IPD-1GB |
