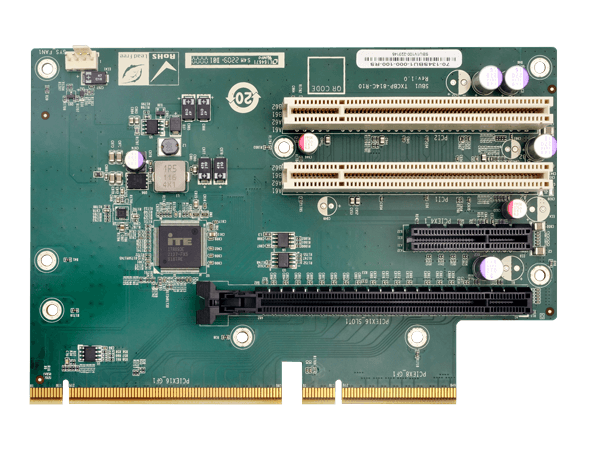

» 4-slot backplane for TANK-XM81 series expansion chassis
» One PCIe x16 & one PCIe x4 & two PCI Slot
» One system fan connectors
» Compatible chassis: TXC-XM81-4S-R10
Hardware Spec.
Form Factor | |
---|---|
Form Factor | TANK-XM81 series customization |
System | |
Cooling method / System Fan | 1 x 4-pin (1x4) |
Physical Characteristics | |
Mounting | TXC-XM81-4S |
Dimensions (LxWxH) (mm) | 175.8 x 119 |
I/O Interface | |
Expansion | 2 x PCI Slot |
1 x PCIe x16 | |
1 x PCIe x4 |
Ordering Information
TXCBP-XM81-4C-R10 | Tank 81 Series Expansion Peripheral Card, backplane module, 4 Slot, 1xPCIe*16&2xPCI&1xPCIe*4 |
---|
