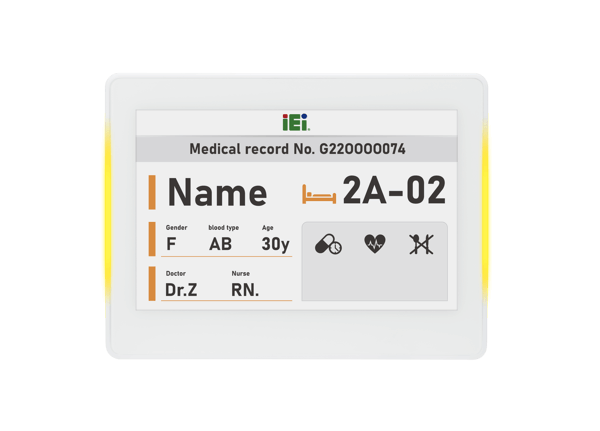

IASO-W10B-IMX8M
» NXP i.MX 8M Mini Quad-core Cortex-A53 1.8 GHz
» Programmable LED light bar on both side
» 10-point PCAP touch with optical bonding
» IEEE 802.3 PoE (optional)
» RFID (NFC) reader (optional)
10-Point Touch Screen with Optical Bonding
The 10-point touch screen with 6H surface scratch resistance supports control with multiple layers of surgical gloves. Optical bonding can dramatically reduce the internal reflections, help improve the brightness and contrast ratio of the display, enhance system ruggedness, and strengthen shock and vibration resistance.
Programmable LED Light Bars on Both Sides
LED light bars on both sides
Bright and simple outlook with programmable LED lights on both sides. The colorful light and display can be adjusted according to use conditions.
Usage scenarios
It can be used to detect the status light signal, or to warn the ward aisle.
Programmable LEDs
Each light bar has 10 programmable RGB LEDs with IEC62471 certification.
Translucent front frame
The front frame is made of translucent material to make the frame light and thin.
Color Codes for Safety Signs
IEC60601-1-8 is a standard that provides general requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems.
ANSI Z535.1-2017 is a standard that describes the color codes that can be used on accident prevention signs, labels, and tags. This also includes the marking and location of first aid equipment, fire extinguisher s, trip/slip hazards, and other potential hazards or safety equipment.
RFID Reader (optional)
An RFID dual-band card is capable of reading both 125 kHz and 1 3.56 MHz credentials
| Frequency | Range | Cost | Memory | Penetration of Materials | Data Rate | Reader Cost | Read Multiple Tags | Applications | |
| LF | 125 - 134.2 KHz | 0.2 - 2m | Typ. 3GBP | Typ. 64 bits | V. Good | Slow | 50 - 500 GBP | Poor | Animal Tags. Vehicle Immobilisers.Industrial Applications |
| HF | 13.56 MHz | Up to 1m | Typ. 0.50GBP | Typ. 2048 bits | Good | Fast | 50 - 3000 GBP | Good | Item Tracking. Access Control. Smart Labels |
NXP i.MX 8M Mini
Quad-core Cortex-A53
Four powerful 64-bit Armv8 Cortex-A53 cores, making it a cost effective choice for running the graphical user interface and the latest Android 13.
4GB LPDDR4X on board
Scalable up to 8GB, low-power design with more efficiency.
Power-optimized
The low-power 14LPC FinFET Technology, making the SoC power-optimized.
Pin to Pin design
More flexibly, to change the same series chips for your requirement.
LP4x = Lower power
Power over Ethernet (optional)
Providing efficient power with less cabling for best performance.
1GbE supporting PoE (ErP is not supported in PoE mode)
IASO-W10B-IMX8M compliant with IEEE802.3at Class 4 & IEEE 802.3bt Class 5
Save Time by Using a Single Slot
PoE of the device provides both data and power over a single Ethernet cable

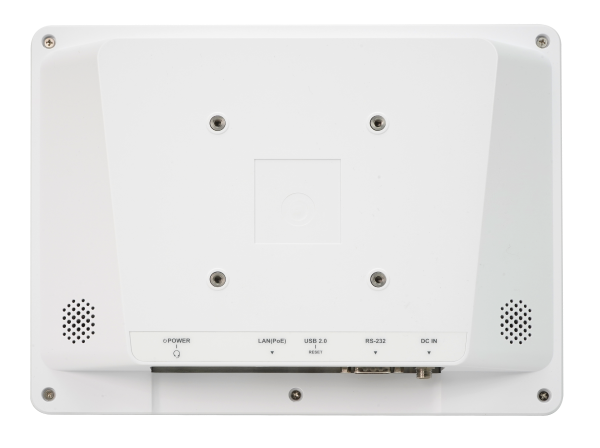

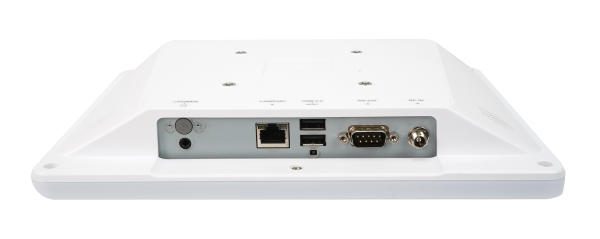

I/O Interface
- 1
Power Button
- 2
Audio Line-out
- 3
1GbE LAN (optional PoE)
- 4
Reset Button
- 5
2 x USB 2.0
- 6
RS-232
- 7
Power Input
Dimensions
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 10.1” |
| LCD Resolution | 1280 x 800 |
| LCD Brightness (cd/m²) | 400 |
| LCD Contrast Ratio | 800:1 |
| LCD Color | 16.7M (RGB 6-bit + Hi-FRC) |
| LCD Pixel Pitch (mm) | 0.1695 x 0.1695 mm |
| LCD Viewing Angle (H-V) | 178˚/178˚ |
| LCD Backlight MTBF | 30,000 (LED backlight) |
| Touch Screen | Projected capacitive type with 10-point multi-touch and optical bonding |
| Touch Controller | EETI |
| Touch Surface Hardness | 6H |
| System | |
| Processor | NXP i.MX 8M Mini (Quad-core Cortex-A53 up to 1.8 GHz) |
| Supported OS | Android 12 |
| Storage | |
| Storage | On-board 32GB eMMC NAND FLASH, up to 128GB |
| RAM | On-board 4GB LPDDR4X, up to 8GB |
| Audio | |
| Speaker | 2 x 0.5W (internal speaker) |
| I/O Interface | |
| Rear I/O |
1 x Reset button 1 x Power button 1 x 12V DC jack 1 x RS-232 1 x Audio jack (TRRS) 1 x GbE LAN supporting PoE 2 x USB 2.0 Type A |
| Indicator&Buttons | |
| Indicators | 2 x LED light bar (each light bar has 10 programmable RGB LED with IEC62471 certification) |
| Physical Characteristics | |
| Thermal | Fanless |
| Construction Material | PC/ABS plastic |
| Mounting | VESA 75 x 75 mm |
| Weight (Net) (kg) | 1.49 |
| Weight (Gross) (kg) | 2.86 |
| Dimensions (LxWxH) (mm) | 261 x 196.4 x 40 |
| Power | |
| Power Adapter | 65W medical grade power adapter |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 10% ~ 95% (non-condensing) |
| Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Non-operating shock | 15G peak acceleration (11ms duration) |
| Certifications | |
| Safety & EMC |
CE,FCC Class B Part 15B EN 55032 2015+A11:2020 EN 55035 2017+A11:2020 EN / IEC 62368-1 |
Ordering Information
| IASO-W10B-IMX8M-R10 | 10.1" 400cd/m² medical panel PC with NXP i.MX 8M Mini Cortex-A53 1.8 GHz, on board 4GB LPDDR4X,Wi-Fi 6 module, PCAP touchscreen,R10 |
|---|
Package Contents
| Package Content |
|
|---|
