» PCI Express® x4 compliant
» Support for total 90 watts under full load
» Support link aggregation/jumbo frames (9 Kbyte)
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 158 mm x 69 mm |
| Net Weight | 110g |
| I/O Interface | |
| Ethernet |
Description: [PoE Capability] LAN3/LAN4 support: IEEE 802.3af with 15.4W/52V per port LAN1/LAN2 support: IEEE 802.3at with 30W/52V per port (Support for total 90 watts under full load) |
|
4 x LAN Intel® I226V controller 9kB jumbo frame IEEE 802.3az, IEEE1588 |
|
| Power | |
| Power Supply |
12V~24V DC DC input power - 1 x Internal DC input (1x4 pin) 1 x Internal DC input (2x3 pin) **Caution! Choose one input only at a time |
| Environment | |
| Operating Temperature |
0°C ~ 60°C (0 ~ 60 watts) 0°C ~ 50°C (60 ~ 90 watts) |
| Storage Temperature | -10°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information

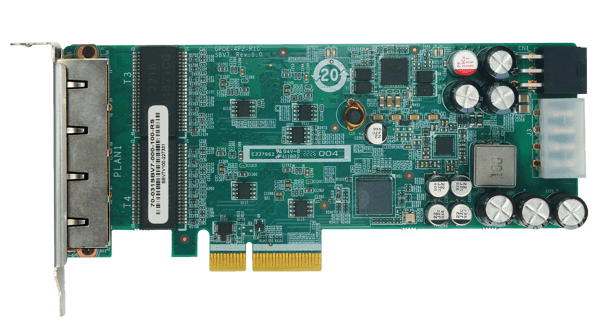

| GPOE-4P2-R10 | PCI Express Power over Ethernet card, 4-port 2.5GbE, 802.3at/af compliant, low profile, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
